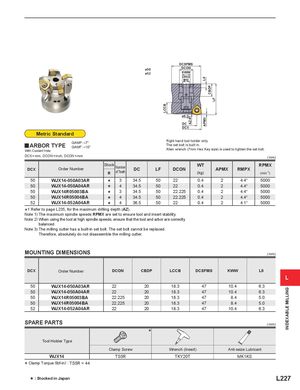

Общий каталог Mitsubishi 2020 - 2021 - страница 1402
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
DCSFMS ø50 DCON ø52 KWW CRKS M10
ø8.5 DC DCX
Metric Standard
ARBOR TYPE GAMP :‒7° Right hand tool holder only.
y The set bolt is built in. GAMF :‒10° Allen wrench (7mm Hex Key size) is used to tighten the set bolt. With Coolant Hole DCX=mm, DCON=inch, DCON=mm (mm)
| DCX | Order Number | R Stock | Number of Teeth | DC | LF | DCON | WT (kg) | APMX | RMPX | RPMX (min-1) |
| 50 | WJX14-050A03AR | s | 3 | 34.5 | 50 | 22 | 0.4 | 2 | 4.4° | 5000 |
| 50 | WJX14-050A04AR | s | 4 | 34.5 | 50 | 22 | 0.4 | 2 | 4.4° | 5000 |
| 50 | WJX14R05003BA | s | 3 | 34.5 | 50 | 22.225 | 0.4 | 2 | 4.4° | 5000 |
| 50 | WJX14R05004BA | s | 4 | 34.5 | 50 | 22.225 | 0.4 | 2 | 4.4° | 5000 |
| 52 | WJX14-052A04AR | s | 4 | 36.5 | 50 | 22 | 0.4 | 2 | 4.1° | 5000 |
*1 Refer to page L235, for the maximum drilling depth (AZ). Note 1) The maximum spindle speeds RPMX are set to ensure tool and insert stability. Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. Note 3) The milling cutter has a built-in set bolt. The set bolt cannot be replaced. Therefore, absolutely do not disassemble the milling cutter.
MOUNTING DIMENSIONS
(mm)
| DCX | Order Number | DCON | CBDP | LCCB | DCSFMS | KWW | L8 |
| 50 | WJX14-050A03AR | 22 | 20 | 18.3 | 47 | 10.4 | 6.3 |
| 50 | WJX14-050A04AR | 22 | 20 | 18.3 | 47 | 10.4 | 6.3 |
| 50 | WJX14R05003BA | 22.225 | 20 | 18.3 | 47 | 8.4 | 5.0 |
| 50 | WJX14R05004BA | 22.225 | 20 | 18.3 | 47 | 8.4 | 5.0 |
| 52 | WJX14-052A04AR | 22 | 20 | 18.3 | 47 | 10.4 | 6.3 |
L
SPARE PARTS
(mm)
| Tool Holder Type | |||
| Clamp Screw | Wrench (Insert) | Anti-seize Lubricant | |
| WJX14 | TS5R | TKY20T | MK1KS |
* Clamp Torque (lbf-in) : TS5R = 44
: Stocked in Japan L227
