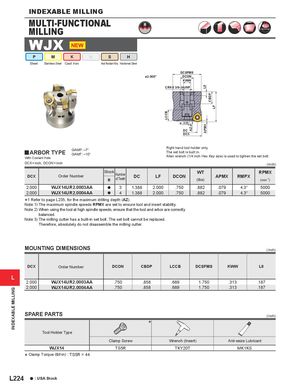

WJX
P M K N S H
Steel Stainless Steel Cast Iron Heat Resistant Alloy Hardened Steel
ø2.000"
DCSFMS DCON KWW CRKS 3/8-24UNF
ø .335 DC DCX
ARBOR TYPE GAMP :‒7° Right hand tool holder only.
y The set bolt is built in. GAMF :‒10° Allen wrench (1/4 inch Hex Key size) is used to tighten the set bolt. With Coolant Hole
| nc, | nc | (inch) | ||||||||
| DCX | Order Number | R Stock | Number of Teeth | DC | LF | DCON | WT (lbs) | APMX | RMPX | RPMX (min-1) |
| 2.000 | WJX14UR2.0003AA | a | 3 | 1.388 | 2.000 | .750 | .882 | .079 | 4.3° | 5000 |
| 2.000 | WJX14UR2.0004AA | a | 4 | 1.388 | 2.000 | .750 | .882 | .079 | 4.3° | 5000 |
*1 Refer to page L235, for the maximum drilling depth (AZ). Note 1) The maximum spindle speeds RPMX are set to ensure tool and insert stability. Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. Note 3) The milling cutter has a built-in set bolt. The set bolt cannot be replaced. Therefore, absolutely do not disassemble the milling cutter.
| (inch) | |||||||
| DCX | Order Number | DCON | CBDP | LCCB | DCSFMS | KWW | L8 |
| 2.000 | WJX14UR2.0003AA | .750 | .858 | .689 | 1.750 | .313 | .187 |
| 2.000 | WJX14UR2.0004AA | .750 | .858 | .689 | 1.750 | .313 | .187 |
L
| (inch) | |||
| Tool Holder Type | |||
| Clamp Screw | Wrench (Insert) | Anti-seize Lubricant | |
| WJX14 | TS5R | TKY20T | MK1KS |
