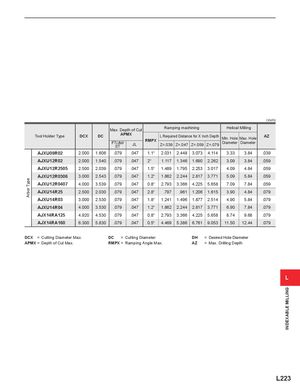

| T | ool Holder Type | DCX | DC | Max. Dep AP FT/JM/ ST | th of Cut MX JL | RMPX | Z=.039 Ram L Requir | Z=.047 ping mac ed Distan | Z=.059 hining ce for X In | Z=.079 ch Depth | Helical Min. Hole Diameter | Milling Max. Hole Diameter | AZ (inch) |
| AJXU09R02 | 2.000 | 1.606 | .079 | .047 | 1.1° | 2.031 | 2.448 | 3.073 | 4.114 | 3.33 | 3.84 | .039 | |
| AJXU12R02 | 2.000 | 1.540 | .079 | .047 | 2° | 1.117 | 1.346 | 1.690 | 2.262 | 3.09 | 3.84 | .059 | |
| AJXU12R2505 | 2.500 | 2.039 | .079 | .047 | 1.5° | 1.489 | 1.795 | 2.253 | 3.017 | 4.09 | 4.84 | .059 | |
| e | AJXU12R0306 | 3.000 | 2.543 | .079 | .047 | 1.2° | 1.862 | 2.244 | 2.817 | 3.771 | 5.09 | 5.84 | .059 |
| Typ | AJXU12R0407 | 4.000 | 3.539 | .079 | .047 | 0.8° | 2.793 | 3.366 | 4.225 | 5.658 | 7.09 | 7.84 | .059 |
| rbor | AJXU14R25 | 2.500 | 2.030 | .079 | .047 | 2.8° | .797 | .961 | 1.206 | 1.615 | 3.90 | 4.84 | .079 |
| A | AJXU14R03 | 3.000 | 2.530 | .079 | .047 | 1.8° | 1.241 | 1.496 | 1.877 | 2.514 | 4.90 | 5.84 | .079 |
| AJXU14R04 | 4.000 | 3.530 | .079 | .047 | 1.2° | 1.862 | 2.244 | 2.817 | 3.771 | 6.90 | 7.84 | .079 | |
| AJX14RA125 | 4.920 | 4.530 | .079 | .047 | 0.8° | 2.793 | 3.366 | 4.225 | 5.658 | 8.74 | 9.68 | .079 | |
| AJX14RA160 | 6.300 | 5.830 | .079 | .047 | 0.5° | 4.469 | 5.386 | 6.761 | 9.053 | 11.50 | 12.44 | .079 |
| DCX | = Cutting Diameter Max. | DC | = Cutting Diameter | DH | = Desired Hole Diameter |
| APMX = Depth of Cut Max. | RMPX = Ramping Angle Max. | AZ | = Max. Drilling Depth |
