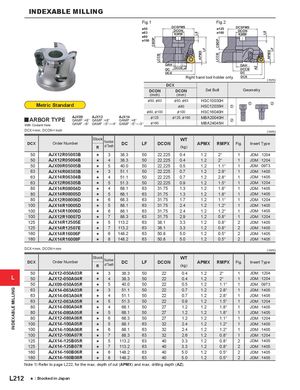

INDEXABLE MILLING Fig.1 Fig.2 DCSFMS ø125 DCSFMS ø50 DCON DCON ø63 ø160 L8 L8 KWW KWW ø80 CBDP ø100 CBDP LF LF APMX APMX LCCB LCCB DAH DAH AZ* AZ* DC DCCB DCCB DCX DC Right hand tool holder only. DCX ( mm) DCX DCON DCON Set Bolt Geometry (inch) (mm) &50, &63 &50, &63 HSC10030H Metric Standard &80 HSC12035H z z x &80, &100 &100 HSC16040H AJX09 AJX12 AJX14 &125 &125, &160 MBA20040H y ARBOR TYPE GAMP :+8° GAMP :+8° GAMP :+8° x With Coolant Hole GAMF :-6° GAMF :-5°─ -4° GAMF :-5°─ -3° &160 MBA24045H DCX = mm, DCON = Inch ( mm) Stock WT Number DCX Order Number of Teeth DC LF DCON APMX RMPX Fig. Insert Type R (kg) 50 AJX12R05003B s 3 38.3 50 22.225 0.4 1.2 2° 1 JDMp1204 50 AJX12R05004B s 4 38.3 50 22.225 0.4 1.2 2° 1 JDMp1204 50 AJX09R05005B s 5 40.0 50 22.225 0.5 1.2 1.1° 1 JDMp09T3 63 AJX14R06303B s 3 51.1 50 22.225 0.7 1.2 2.8° 1 JDMp1405 63 AJX14R06304B s 4 51.1 50 22.225 0.7 1.2 2.8° 1 JDMp1405 63 AJX12R06305B s 5 51.3 50 22.225 0.9 1.2 1.5° 1 JDMp1204 80 AJX14R08004D s 4 68.1 63 31.75 1.3 1.2 1.8° 1 JDMp1405 80 AJX14R08005D s 5 68.1 63 31.75 1.3 1.2 1.8° 1 JDMp1405 80 AJX12R08006D s 6 68.3 63 31.75 1.7 1.2 1.1° 1 JDMp1204 100 AJX14R10005D s 5 88.1 63 31.75 2.4 1.2 1.2° 1 JDMp1405 100 AJX14R10006D s 6 88.1 63 31.75 2.4 1.2 1.2° 1 JDMp1405 100 AJX12R10007D s 7 88.3 63 31.75 2.9 1.2 0.8° 1 JDMp1204 125 AJX14R12505E s 5 113.2 63 38.1 3.3 1.2 0.8° 2 JDMp1405 125 AJX14R12507E s 7 113.2 63 38.1 3.3 1.2 0.8° 2 JDMp1405 160 AJX14R16006F s 6 148.2 63 50.8 5.0 1.2 0.5° 2 JDMp1405 160 AJX14R16008F s 8 148.2 63 50.8 5.0 1.2 0.5° 2 JDMp1405 DCX = mm, DCON = mm ( mm) Stock WT Number DCX Order Number of Teeth DC LF DCON APMX RMPX Fig. Insert Type R (kg) 50 AJX12-050A03R s 3 38.3 50 22 0.4 1.2 2° 1 JDMp1204 L 50 AJX12-050A04R s 4 38.3 50 22 0.4 1.2 2° 1 JDMp1204 50 AJX09-050A05R s 5 40.0 50 22 0.5 1.2 1.1° 1 JDMp09T3 63 AJX14-063A03R 3 51.1 50 22 0.7 1.2 2.8° 1 INDEXABLE MILLING s JDMp1405 63 AJX14-063A04R s 4 51.1 50 22 0.7 1.2 2.8° 1 JDMp1405 63 AJX12-063A05R s 5 51.3 50 22 0.9 1.2 1.5° 1 JDMp1204 80 AJX14-080A04R s 4 68.1 50 27 1.2 1.2 1.8° 1 JDMp1405 80 AJX14-080A05R s 5 68.1 50 27 1.2 1.2 1.8° 1 JDMp1405 80 AJX12-080A06R s 6 68.3 50 27 1.2 1.2 1.1° 1 JDMp1204 100 AJX14-100A05R s 5 88.1 63 32 2.4 1.2 1.2° 1 JDMp1405 100 AJX14-100A06R s 6 88.1 63 32 2.4 1.2 1.2° 1 JDMp1405 100 AJX12-100A07R s 7 88.3 63 32 2.6 1.2 0.8° 1 JDMp1204 125 AJX14-125B05R s 5 113.2 63 40 3.3 1.2 0.8° 2 JDMp1405 125 AJX14-125B07R s 7 113.2 63 40 3.3 1.2 0.8° 2 JDMp1405 160 AJX14-160B06R s 6 148.2 63 40 5.0 1.2 0.5° 2 JDMp1405 160 AJX14-160B08R s 8 148.2 63 40 5.0 1.2 0.5° 2 JDMp1405 Note 1) Refer to page L222, for the max. depth of cut (APMX) and max. drilling depth (AZ). L212 s : Stocked in Japan
