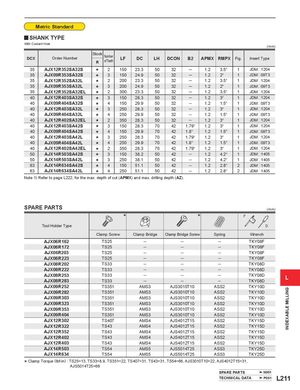

Metric Standard
y SHANK TYPE
With Coolant Hole (mm)
| DCX | Order Number | R Stock | Number of Teeth | LF | DC | LH | DCON | B2 | APMX | RMPX | Fig. | Insert Type |
| 35 | AJX12R352SA32S | s | 2 | 150 | 23.3 | 50 | 32 | ─ | 1.2 | 3.5° | 1 | JDMp1204 |
| 35 | AJX09R353SA32S | s | 3 | 150 | 24.9 | 50 | 32 | ─ | 1.2 | 2° | 1 | JDMp09T3 |
| 35 | AJX12R352SA32L | s | 2 | 200 | 23.3 | 50 | 32 | ─ | 1.2 | 3.5° | 1 | JDMp1204 |
| 35 | AJX09R353SA32L | s | 3 | 200 | 24.9 | 50 | 32 | ─ | 1.2 | 2° | 1 | JDMp09T3 |
| 35 | AJX12R352SA32EL | s | 2 | 300 | 23.3 | 50 | 32 | ─ | 1.2 | 3.5° | 1 | JDMp1204 |
| 40 | AJX12R403SA32S | s | 3 | 150 | 28.3 | 50 | 32 | ─ | 1.2 | 3° | 1 | JDMp1204 |
| 40 | AJX09R404SA32S | s | 4 | 150 | 29.9 | 50 | 32 | ─ | 1.2 | 1.5° | 1 | JDMp09T3 |
| 40 | AJX12R403SA32L | s | 3 | 250 | 28.3 | 50 | 32 | ─ | 1.2 | 3° | 1 | JDMp1204 |
| 40 | AJX09R404SA32L | s | 4 | 250 | 29.9 | 50 | 32 | ─ | 1.2 | 1.5° | 1 | JDMp09T3 |
| 40 | AJX12R402SA32EL | s | 2 | 350 | 28.3 | 50 | 32 | ─ | 1.2 | 3° | 1 | JDMp1204 |
| 40 | AJX12R403SA42S | s | 3 | 150 | 28.3 | 70 | 42 | 1.79° | 1.2 | 3° | 1 | JDMp1204 |
| 40 | AJX09R404SA42S | s | 4 | 150 | 29.9 | 70 | 42 | 1.8° | 1.2 | 1.5° | 1 | JDMp09T3 |
| 40 | AJX12R403SA42L | s | 3 | 250 | 28.3 | 70 | 42 | 1.79° | 1.2 | 3° | 1 | JDMp1204 |
| 40 | AJX09R404SA42L | s | 4 | 250 | 29.9 | 70 | 42 | 1.8° | 1.2 | 1.5° | 1 | JDMp09T3 |
| 40 | AJX12R402SA42EL | s | 2 | 350 | 28.3 | 70 | 42 | 1.79° | 1.2 | 3° | 1 | JDMp1204 |
| 50 | AJX14R503SA42S | s | 3 | 150 | 38.2 | 50 | 42 | ─ | 1.2 | 4.2° | 1 | JDMp1405 |
| 50 | AJX14R503SA42L | s | 3 | 250 | 38.1 | 50 | 42 | ─ | 1.2 | 4.2° | 1 | JDMp1405 |
| 63 | AJX14R634SA42S | s | 4 | 150 | 51.1 | 50 | 42 | ─ | 1.2 | 2.8° | 2 | JDMp1405 |
| 63 | AJX14R634SA42L | s | 4 | 250 | 51.1 | 50 | 42 | ─ | 1.2 | 2.8° | 2 | JDMp1405 |
Note 1) Refer to page L222, for the max. depth of cut (APMX) and max. drilling depth (AZ).
SPARE PARTS
| Tool Holder Type | (mm) F D | ||||
| Clamp Screw | Clamp Bridge | Clamp Bridge Screw | Spring | Wrench | |
| AJX06R162 | TS25 | ─ | ─ | ─ | TKY08F |
| AJX06R172 | TS25 | ─ | ─ | ─ | TKY08F |
| AJX06R203 | TS25 | ─ | ─ | ─ | TKY08F |
| AJX06R223 | TS25 | ─ | ─ | ─ | TKY08F |
| AJX08R202 | TS33 | ─ | ─ | ─ | TKY08D |
| AJX08R222 | TS33 | ─ | ─ | ─ | TKY08D |
| AJX08R253 | TS33 | ─ | ─ | ─ | TKY08D |
| AJX08R283 | TS33 | ─ | ─ | ─ | TKY08D |
| AJX09R252 | TS351 | AMS3 | AJS3010T10 | ASS2 | TKY10D |
| AJX09R282 | TS351 | AMS3 | AJS3010T10 | ASS2 | TKY10D |
| AJX09R303 | TS351 | AMS3 | AJS3010T10 | ASS2 | TKY10D |
| AJX09R323 | TS351 | AMS3 | AJS3010T10 | ASS2 | TKY10D |
| AJX09R353 | TS351 | AMS3 | AJS3010T10 | ASS2 | TKY10D |
| AJX09R404 | TS351 | AMS3 | AJS3010T10 | ASS2 | TKY10D |
| AJX12R302 | TS407 | AMS4 | AJS4012T15 | ASS2 | TKY15D |
| AJX12R322 | TS43 | AMS4 | AJS4012T15 | ASS2 | TKY15D |
| AJX12R352 | TS43 | AMS4 | AJS4012T15 | ASS2 | TKY15D |
| AJX12R402 | TS43 | AMS4 | AJS4012T15 | ASS2 | TKY15D |
| AJX12R403 | TS43 | AMS4 | AJS4012T15 | ASS2 | TKY15D |
| AJX14R503 | TS54 | AMS5 | AJS5014T25 | ASS3 | TKY25D |
| AJX14R634 | TS54 | AMS5 | AJS5014T25 | ASS3 | TKY25D |
* Clamp Torque (lbf-in) : TS25=13, TS33=8.9, TS351=22, TS407=31, TS43=31, TS54=66, AJS3010T10=22, AJS4012T15=31, AJS5014T25=66
