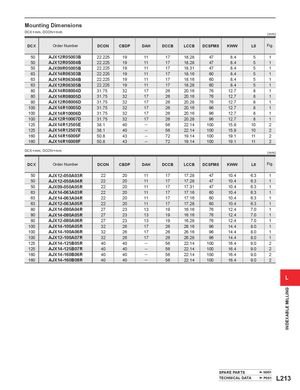

Mounting Dimensions
DCX=mm, DCON=Inch (mm)
| DCX | Order Number | DCON | CBDP | DAH | DCCB | LCCB | DCSFMS | KWW | L8 | Fig. |
| 50 | AJX12R05003B | 22.225 | 19 | 11 | 17 | 18.28 | 47 | 8.4 | 5 | 1 |
| 50 | AJX12R05004B | 22.225 | 19 | 11 | 17 | 18.28 | 47 | 8.4 | 5 | 1 |
| 50 | AJX09R05005B | 22.225 | 19 | 11 | 17 | 18.31 | 47 | 8.4 | 5 | 1 |
| 63 | AJX14R06303B | 22.225 | 19 | 11 | 17 | 18.16 | 60 | 8.4 | 5 | 1 |
| 63 | AJX14R06304B | 22.225 | 19 | 11 | 17 | 18.16 | 60 | 8.4 | 5 | 1 |
| 63 | AJX12R06305B | 22.225 | 19 | 11 | 17 | 18.28 | 60 | 8.4 | 5 | 1 |
| 80 | AJX14R08004D | 31.75 | 32 | 17 | 26 | 20.16 | 76 | 12.7 | 8 | 1 |
| 80 | AJX14R08005D | 31.75 | 32 | 17 | 26 | 20.16 | 76 | 12.7 | 8 | 1 |
| 80 | AJX12R08006D | 31.75 | 32 | 17 | 26 | 20.28 | 76 | 12.7 | 8 | 1 |
| 100 | AJX14R10005D | 31.75 | 32 | 17 | 26 | 20.16 | 96 | 12.7 | 8 | 1 |
| 100 | AJX14R10006D | 31.75 | 32 | 17 | 26 | 20.16 | 96 | 12.7 | 8 | 1 |
| 100 | AJX12R10007D | 31.75 | 32 | 17 | 26 | 20.28 | 96 | 12.7 | 8 | 1 |
| 125 | AJX14R12505E | 38.1 | 40 | ─ | 56 | 22.14 | 100 | 15.9 | 10 | 2 |
| 125 | AJX14R12507E | 38.1 | 40 | ─ | 56 | 22.14 | 100 | 15.9 | 10 | 2 |
| 160 | AJX14R16006F | 50.8 | 43 | ─ | 72 | 19.14 | 100 | 19.1 | 11 | 2 |
| 160 | AJX14R16008F | 50.8 | 43 | ─ | 72 | 19.14 | 100 | 19.1 | 11 | 2 |
DCX=mm, DCON=mm (mm)
| , | (mm) | |||||||||
| DCX | Order Number | DCON | CBDP | DAH | DCCB | LCCB | DCSFMS | KWW | L8 | Fig. |
| 50 | AJX12-050A03R | 22 | 20 | 11 | 17 | 17.28 | 47 | 10.4 | 6.3 | 1 |
| 50 | AJX12-050A04R | 22 | 20 | 11 | 17 | 17.28 | 47 | 10.4 | 6.3 | 1 |
| 50 | AJX09-050A05R | 22 | 20 | 11 | 17 | 17.31 | 47 | 10.4 | 6.3 | 1 |
| 63 | AJX14-063A03R | 22 | 20 | 11 | 17 | 17.16 | 60 | 10.4 | 6.3 | 1 |
| 63 | AJX14-063A04R | 22 | 20 | 11 | 17 | 17.16 | 60 | 10.4 | 6.3 | 1 |
| 63 | AJX12-063A05R | 22 | 20 | 11 | 17 | 17.28 | 60 | 10.4 | 6.3 | 1 |
| 80 | AJX14-080A04R | 27 | 23 | 13 | 19 | 16.16 | 76 | 12.4 | 7.0 | 1 |
| 80 | AJX14-080A05R | 27 | 23 | 13 | 19 | 16.16 | 76 | 12.4 | 7.0 | 1 |
| 80 | AJX12-080A06R | 27 | 23 | 13 | 19 | 16.28 | 76 | 12.4 | 7.0 | 1 |
| 100 | AJX14-100A05R | 32 | 26 | 17 | 26 | 26.16 | 96 | 14.4 | 8.0 | 1 |
| 100 | AJX14-100A06R | 32 | 26 | 17 | 26 | 26.16 | 96 | 14.4 | 8.0 | 1 |
| 100 | AJX12-100A07R | 32 | 26 | 17 | 26 | 26.28 | 96 | 14.4 | 8.0 | 1 |
| 125 | AJX14-125B05R | 40 | 40 | ─ | 56 | 22.14 | 100 | 16.4 | 9.0 | 2 |
| 125 | AJX14-125B07R | 40 | 40 | ─ | 56 | 22.14 | 100 | 16.4 | 9.0 | 2 |
| 160 | AJX14-160B06R | 40 | 40 | ─ | 56 | 22.14 | 100 | 16.4 | 9.0 | 2 |
| 160 | AJX14-160B08R | 40 | 40 | ─ | 56 | 22.14 | 100 | 16.4 | 9.0 | 2 |
