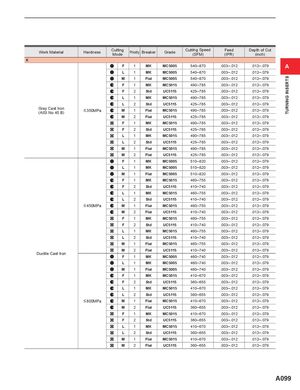

TURNING INSERTS Work Material Hardness CuttingModePriority Breaker Grade Cutting Speed(SFM) Feed(IPR) Depth of Cut(inch) K F 1 MK MC5005 540─870 .003─.012 .012─.079 A L 1 MK MC5005 540─870 .003─.012 .012─.079 M 1 Flat MC5005 540─870 .003─.012 .012─.079 F 1 MK MC5015 490─785 .003─.012 .012─.079 F 2 Std UC5115 425─785 .003─.012 .012─.079 L 1 MK MC5015 490─785 .003─.012 .012─.079 L 2 Std UC5115 425─785 .003─.012 .012─.079 Gray Cast Iron(AISI No 45 B)< 350MPa M 1 Flat MC5015 490─785 .003─.012 .012─.079 M 2 Flat UC5115 425─785 .003─.012 .012─.079 F 1 MK MC5015 490─785 .003─.012 .012─.079 F 2 Std UC5115 425─785 .003─.012 .012─.079 L 1 MK MC5015 490─785 .003─.012 .012─.079 L 2 Std UC5115 425─785 .003─.012 .012─.079 M 1 Flat MC5015 490─785 .003─.012 .012─.079 M 2 Flat UC5115 425─785 .003─.012 .012─.079 F 1 MK MC5005 510─820 .003─.012 .012─.079 L 1 MK MC5005 510─820 .003─.012 .012─.079 M 1 Flat MC5005 510─820 .003─.012 .012─.079 F 1 MK MC5015 460─755 .003─.012 .012─.079 F 2 Std UC5115 410─740 .003─.012 .012─.079 L 1 MK MC5015 460─755 .003─.012 .012─.079 L 2 Std UC5115 410─740 .003─.012 .012─.079 < 450MPa M 1 Flat MC5015 460─755 .003─.012 .012─.079 M 2 Flat UC5115 410─740 .003─.012 .012─.079 F 1 MK MC5015 460─755 .003─.012 .012─.079 F 2 Std UC5115 410─740 .003─.012 .012─.079 L 1 MK MC5015 460─755 .003─.012 .012─.079 L 2 Std UC5115 410─740 .003─.012 .012─.079 M 1 Flat MC5015 460─755 .003─.012 .012─.079 M 2 Flat UC5115 410─740 .003─.012 .012─.079 Ductile Cast Iron F 1 MK MC5005 460─740 .003─.012 .012─.079 L 1 MK MC5005 460─740 .003─.012 .012─.079 M 1 Flat MC5005 460─740 .003─.012 .012─.079 F 1 MK MC5015 410─670 .003─.012 .012─.079 F 2 Std UC5115 360─655 .003─.012 .012─.079 L 1 MK MC5015 410─670 .003─.012 .012─.079 L 2 Std UC5115 360─655 .003─.012 .012─.079 < 800MPa M 1 Flat MC5015 410─670 .003─.012 .012─.079 M 2 Flat UC5115 360─655 .003─.012 .012─.079 F 1 MK MC5015 410─670 .003─.012 .012─.079 F 2 Std UC5115 360─655 .003─.012 .012─.079 L 1 MK MC5015 410─670 .003─.012 .012─.079 L 2 Std UC5115 360─655 .003─.012 .012─.079 M 1 Flat MC5015 410─670 .003─.012 .012─.079 M 2 Flat UC5115 360─655 .003─.012 .012─.079 A099
