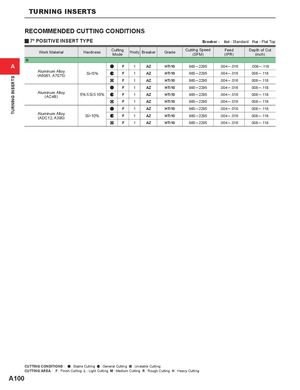

TURNING INSERTS RECOMMENDED CUTTING CONDITIONS y 7° POSITIVE INSERT TYPE Breaker : Std : Standard Flat : Flat Top Cutting Cutting Speed Feed Depth of Cut Work Material Hardness Priority Breaker Grade Mode (SFM) (IPR) (inch) N A F 1 AZ HTi10 985 ─ 2295 .004 ─ .016 .008 ─ .118 Aluminum Alloy (A6061, A7075) Si<5% F 1 AZ HTi10 985 ─ 2295 .004 ─ .016 008 ─ .118 TURNING INSERTS F 1 AZ HTi10 985 ─ 2295 .004 ─ .016 008 ─ .118 F 1 AZ HTi10 985 ─ 2295 .004 ─ .016 008 ─ .118 Aluminum Alloy (AC4B) 5% < Si < 10% F 1 AZ HTi10 985 ─ 2295 .004 ─ .016 008 ─ .118 F 1 AZ HTi10 985 ─ 2295 .004 ─ .016 008 ─ .118 F 1 AZ HTi10 985 ─ 2295 .004 ─ .016 008 ─ .118 Aluminum Alloy (ADC12, A390) Si>10% F 1 AZ HTi10 985 ─ 2295 .004 ─ .016 008 ─ .118 F 1 AZ HTi10 985 ─ 2295 .004 ─ .016 008 ─ .118 CUTTING CONDITIONS : : Stable Cutting : General Cutting : Unstable Cutting CUTTING AREA : F : Finish Cutting L : Light Cutting M : Medium Cutting R : Rough Cutting H : Heavy Cutting A100
