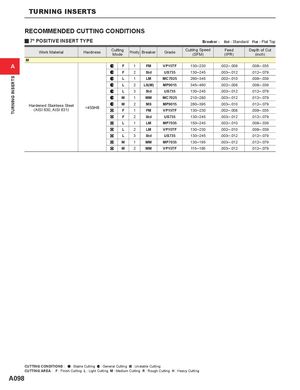

TURNING INSERTS RECOMMENDED CUTTING CONDITIONS y 7° POSITIVE INSERT TYPE Breaker : Std : Standard Flat : Flat Top Cutting Cutting Speed Feed Depth of Cut Work Material Hardness Priority Breaker Grade Mode (SFM) (IPR) (inch) M A F 1 FM VP15TF 130─230 .002─.008 .008─.035 F 2 Std US735 130─245 .003─.012 .012─.079 TURNING INSERTS L 1 LM MC7025 260─345 .002─.010 .008─.039 L 2 LS(M) MP9015 345─460 .002─.008 .008─.039 L 3 Std US735 130─245 .003─.012 .012─.079 M 1 MM MC7025 210─280 .003─.012 .012─.079 Hardened Stainless Steel M 2 MS MP9015 280─395 .003─.010 .012─.079 (AISI 630, AISI 631) <450HB F 1 FM VP15TF 130─230 .002─.008 .008─.035 F 2 Std US735 130─245 .003─.012 .012─.079 L 1 LM MP7035 150─245 .002─.010 .008─.039 L 2 LM VP15TF 130─230 .002─.010 .008─.039 L 3 Std US735 130─245 .003─.012 .012─.079 M 1 MM MP7035 130─195 .003─.012 .012─.079 M 2 MM VP15TF 115─195 .003─.012 .012─.079 CUTTING CONDITIONS : : Stable Cutting : General Cutting : Unstable Cutting CUTTING AREA : F : Finish Cutting L : Light Cutting M : Medium Cutting R : Rough Cutting H : Heavy Cutting A098
