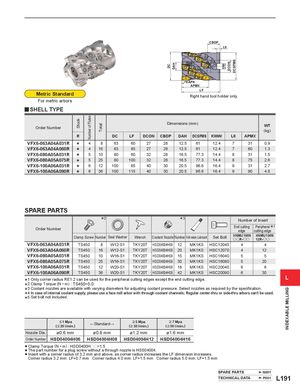

CBDP L8
Metric Standard
For metric arbors
y SHELL TYPE
KAPR APMX LF Right hand tool holder only.
| Order Number | Stock | er of Flutes | Total | Dim | ensions ( | mm) | WT (kg) | ||||||
| R | Numb | DC | LF | DCON | CBDP | DAH | DCSFMS | KWW | L8 | APMX | |||
| VFX6-063A04A031R | s | 4 | 8 | 63 | 60 | 27 | 28 | 12.5 | 61 | 12.4 | 7 | 31 | 0.9 |
| VFX6-063A04A060R | s | 4 | 16 | 63 | 85 | 27 | 28 | 12.5 | 61 | 12.4 | 7 | 60 | 1.3 |
| VFX6-080A05A031R | s | 5 | 10 | 80 | 60 | 32 | 28 | 16.5 | 77.3 | 14.4 | 8 | 31 | 1.5 |
| VFX6-080A05A075R | s | 5 | 25 | 80 | 100 | 32 | 28 | 16.5 | 77.3 | 14.4 | 8 | 75 | 2.6 |
| VFX6-100A06A031R | s | 6 | 12 | 100 | 65 | 40 | 30 | 20.5 | 96.6 | 16.4 | 9 | 31 | 2.7 |
| VFX6-100A06A090R | s | 6 | 36 | 100 | 115 | 40 | 30 | 20.5 | 96.6 | 16.4 | 9 | 90 | 4.8 |
SPARE PARTS
| Order Number | 2 | 3 | Number End cutting edge | 1 of Insert Peripheral cuttingedge | ||||||
| Clamp Screw | Number | Seal Washer | Wrench | Coolant Nozzle | Number | Anti-seize Lubricant | Set Bolt | XNMU1909 ooR-oo | XNMU1909 12R-oo | |
| VFX6-063A04A031R | TS450 | 8 | W12-S1 | TKY20T | HSD04004H08 | 12 | MK1KS | HSC12045 | 4 | 4 |
| VFX6-063A04A060R | TS450 | 16 | W12-S1 | TKY20T | HSD04004H08 | 20 | MK1KS | HSC12070 | 4 | 12 |
| VFX6-080A05A031R | TS450 | 10 | W16-S1 | TKY20T | HSD04004H08 | 15 | MK1KS | HSC16040 | 5 | 5 |
| VFX6-080A05A075R | TS450 | 25 | W16-S1 | TKY20T | HSD04004H08 | 30 | MK1KS | HSC16080 | 5 | 20 |
| VFX6-100A06A031R | TS450 | 12 | W20-S1 | TKY20T | HSD04004H08 | 18 | MK1KS | HSC20040 | 6 | 6 |
| VFX6-100A06A090R | TS450 | 36 | W20-S1 | TKY20T | HSD04004H08 | 42 | MK1KS | HSC20090 | 6 | 30 |
* L
*1 Only corner radius RE1.2 can be used for the peripheral cutting edges except the end cutting edge.
*2 Clamp Torque (N m) : TS450=5.0
*3 Coolant nozzles are available with varying diameters for adjusting coolant pressure. Select nozzles as required by the specification. *4 In case of internal coolant supply, please use a face mill arbor with through coolant channels; Regular center-thru or side-thru arbors can't be used. 5 Set bolt not included.
| ( | ←Standard→ | >5 Mpa (>30 I/min.) | >7 Mpa (>50 I/min.) | |
| Nozzle Dia. | ø0.6 mm | ø0.8 mm | ø1.2 mm | ø1.6 mm |
| Order Number | HSD04004H06 | HSD04004H08 | HSD04004H12 | HSD04004H16 |
- Clamp Torque (N
- m) : HSD0400Hpp=1.5
- The part number for a plug screw without a through nozzle is HSS04004. Insert with a corner radius of 3.2 mm and above, as corner radius increases the LF dimension increases. Corner radius 3.2 mm: LF+0.7 mm Corner radius 4.0 mm: LF+1.5 mm Corner radius 5.0 mm: LF+1.5 mm
