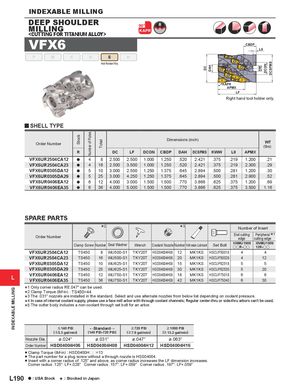

Общий каталог Mitsubishi 2020 - 2021 - страница 1365
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
<CUTTING FOR TITANIUM ALLOY>
VFX6
P M K N S H
Heat Resistant Alloy
KAPR
CBDP L8
KAPR APMX LF Right hand tool holder only.
y SHELL TYPE
| Order Number | Stock | ber of Flutes | Total | Dime | nsions ( | inch) | WT (lbs) | ||||||
| R | Num | DC | LF | DCON | CBDP | DAH | DCSFMS | KWW | L8 | APMX | |||
| VFX6UR2504CA12 | a | 4 | 8 | 2.500 | 2.500 | 1.000 | 1.250 | .520 | 2.421 | .375 | .219 | 1.200 | .21 |
| VFX6UR2504CA23 | a | 4 | 16 | 2.500 | 3.500 | 1.000 | 1.250 | .520 | 2.421 | .375 | .219 | 2.300 | .29 |
| VFX6UR0305DA12 | a | 5 | 10 | 3.000 | 2.500 | 1.250 | 1.375 | .645 | 2.894 | .500 | .281 | 1.200 | .30 |
| VFX6UR0305DA29 | a | 5 | 25 | 3.000 | 4.250 | 1.250 | 1.375 | .645 | 2.894 | .500 | .281 | 2.900 | .52 |
| VFX6UR0406EA12 | a | 6 | 12 | 4.000 | 3.000 | 1.500 | 1.500 | .770 | 3.866 | .625 | .375 | 1.200 | .69 |
| VFX6UR0406EA35 | a | 6 | 36 | 4.000 | 5.000 | 1.500 | 1.500 | .770 | 3.866 | .625 | .375 | 3.500 | 1.16 |
SPARE PARTS
| Order Number | 2 | 3 | Number End cutting edge | 1 of Insert Peripheral cuttingedge | ||||||
| Clamp Screw | Number | Seal Washer | Wrench | Coolant Nozzle | Number | Anti-seize Lubricant | Set Bolt | XNMU1909 ooR-oo | XNMU1909 12R-oo | |
| VFX6UR2504CA12 | TS450 | 8 | WU500-S1 | TKY20T | HSD04004H08 | 12 | MK1KS | HSCUF50018 | 4 | 4 |
| VFX6UR2504CA23 | TS450 | 16 | WU500-S1 | TKY20T | HSD04004H08 | 20 | MK1KS | HSCUF50028 | 4 | 12 |
| VFX6UR0305DA12 | TS450 | 10 | WU625-S1 | TKY20T | HSD04004H08 | 15 | MK1KS | HSCUF62518 | 5 | 5 |
| VFX6UR0305DA29 | TS450 | 25 | WU625-S1 | TKY20T | HSD04004H08 | 30 | MK1KS | HSCUF62535 | 5 | 20 |
| VFX6UR0406EA12 | TS450 | 12 | WU750-S1 | TKY20T | HSD04004H08 | 18 | MK1KS | HSCUF75018 | 6 | 6 |
| VFX6UR0406EA35 | TS450 | 36 | WU750-S1 | TKY20T | HSD04004H08 | 42 | MK1KS | HSCUF75040 | 6 | 30 |
*1 Only corner radius RE.047" can be used.
*2 Clamp Torque (lbf-in) : TS450=44
*3 The .031" nozzels are installed in the standard. Select and use alternate nozzles from below list depending on coolant pressure. *4 In case of internal coolant supply, please use a face mill arbor with through coolant channels; Regular center-thru or side-thru arbors can't be used. *5 The cutter body includes a non-coolant through set bolt for an arbor.
| ←Standard→ | >720 PSI | >1000 PSI | ||
| ( | (140 PSI-720 PSI) | (>7.9 gal/min) | (>13.2 gal/min) | |
| Nozzle Dia. | ø.024" | ø.031" | ø.047" | ø.063" |
| Order Number | HSD04004H06 | HSD04004H08 | HSD04004H12 | HSD04004H16 |
- Clamp Torque (lbf-in) : HSD0400Hpp=13 Insert with a corner radius of .125" and above, as corner radius increases the LF dimension increases. Corner radius .125": LF+.028" Corner radius .157": LF+.059" Corner radius .197": LF+.059"
