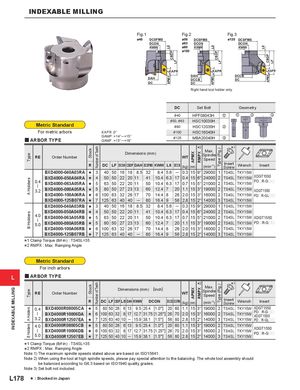

Fig.1 Fig.2 Fig.3
| DCSFMS | DCSFMS | DCSFMS |
| DCON | DCON | DCON |
| KWW | KWW | KWW |
| DAH | DCCB | DC |
| DC | DC | |
| Right hand tool holder only. | |
| DC | Set Bolt | Geometry |
| &40 | HFF08043H | c x z z |
| &50, &63 | HSC10030H | |
| Metric Standard | | | |
| &80 | HSC12035H | x |
| For metric arbors KAPR :0° | &100 | HSC16040H | |
| GAMP :+14°─+15° | 125 | MBA20040H | |
| y ARBOR TYPE | & | | c |
| GAMF :+13° ─+16° | | | |
| | *2 | *1 |
| | | Max. |
| Dimensions (mm) | | Spindle |
R DC LF DCON CBDP DAH DCSFMS KWW L8 DCCB Insert Wrench Insert
(kg) (mm) (min -1) Screw
| BXD4000-040A03RA | s | 3 | 40 50 16 18 8.5 32 8.4 5.6 | | ─ | 0.3 15 9° 29000 1 TS4SL TKY15W |
| BXD4000-050A04RA | | 4 | 50 50 22 20 11 | 41 10.4 6.3 17 0.4 15 6° 24000 2 TS4SL TKY15W | | XDGT1550 |
| | s | | | | | |
| 0.4 | BXD4000-063A05RA | | 5 | 63 50 22 20 11 | 50 10.4 6.3 17 0.7 15 5° 21000 2 TS4SL TKY15W | | PDpR-Gpp |
| | s | | | | | |
| 3.2 | BXD4000-080A05RA | s | 5 | 80 50 27 23 13 | 60 12.4 7 | 20 1.1 15 3° 19000 2 TS4SL TKY15W | XDGT1550 |
| BXD4000-100A06RA | s | 6 100 63 32 26 17 | | 70 14.4 8 | 26 2.0 15 3° 16000 2 TS4SL TKY15W | R-GL PD |
| | | | | | | pp p |
| BXD4000-125B07RA | s | 7 125 63 40 40 | | ─ 80 16.4 9 | 56 2.8 15 2° 14000 3 TS4SL TKY15W | |
| BXD4000-040A03RB | s | 3 | 40 50 16 18 8.5 32 8.4 5.6 | | ─ | 0.3 15 9° 29000 1 TS4SL TKY15W |
| BXD4000-050A04RB | s | 4 | 50 50 22 20 11 | 41 10.4 6.3 17 0.4 15 6° 24000 2 TS4SL TKY15W | | |
| 4.0 | BXD4000-063A05RB | | 5 | 63 50 22 20 11 | 50 10.4 6.3 17 0.7 15 5° 21000 2 TS4SL TKY15W | | |
| | s | | | | | XDGT1550 |
| 5.0 | BXD4000-080A05RB | s | 5 | 80 50 27 23 13 | 60 12.4 7 | 20 1.1 15 3° 19000 2 TS4SL TKY15W | PDpR-Gpp |
| BXD4000-100A06RB | s | 6 100 63 32 26 17 | | 70 14.4 8 | 26 2.0 15 3° 16000 2 TS4SL TKY15W | |
| BXD4000-125B07RB | s | 7 125 63 40 40 | | ─ 80 16.4 9 | 56 2.8 15 2° 14000 3 TS4SL TKY15W | |
*1 Clamp Torque (lbf-in) : TS4SL=35 *2 RMPX : Max. Ramping Angle Metric Standard For inch arbors
| y A | RBO | R TYPE | | | | | | | | | | | | |
| Type | RE | Order Number | Stock | ber of Teeth | Dimensi | ons (mm) [inch] | | WT | PMX MPX 2 | Max. Spindle Speed | e(Fig.) | 1 | | |
| | | R | Num | DC LF CBDP L8 DAH | KWW DCON | DCCB DCSFMS | (kg) | A R (mm) | (min-1) | Typ | Insert Screw | Wrench | Insert |
| ers | 0.4 | BXD4000R08005CA | s | 5 | 80 50 26 6 13 | 9.5 25.4 [1.0"] | 20 60 | 1.1 | 15 3° | 19000 | 2 | TS4SL | TKY15W | XDGT1550 |
| old | ─ | BXD4000R10006DA | s | 6 | 100 63 32 8 17 | 12.7 31.75 [1.25"] | 26 70 | 2.0 | 15 3° | 16000 | 2 | TS4SL | TKY15W | PDpR-Gpp XDGT1550 |
| A H | 3.2 | BXD4000R12507EA | s | 7 | 125 63 40 10 ─ | 15.9 38.1[1.5"] | 56 80 | 2.8 | 15 2° | 14000 | 3 | TS4SL | TKY15W | PDpR-GLpp |
| ers | 4.0 | BXD4000R08005CB | s | 5 | 80 50 26 6 13 | 9.5 25.4 [1.0"] | 20 60 | 1.1 | 15 3° | 19000 | 2 | TS4SL | TKY15W | |
| old | ─ | BXD4000R10006DB | s | 6 | 100 63 32 8 17 | 12.7 31.75 [1.25"] | 26 70 | 2.0 | 15 3° | 16000 | 2 | TS4SL | TKY15W | XDGT1550 PDpRGpp |
| B H | 5.0 | BXD4000R12507EB | s | 7 | 125 50 40 10 ─ | 15.9 38.1[1.5"] | 56 80 | 2.8 | 15 2° | 14000 | 3 | TS4SL | TKY15W | - |
*1 Clamp Torque (lbf-in) : TS4SL=35
*2 RMPX : Max. Ramping Angle
Note 1) The maximum spindle speeds stated above are based on ISO15641. Note 2) When using the tool at high spindle speeds, please pay special attention to the balancing. The whole tool assembly should be balanced according to G6.3 based on ISO1940 quality grades.
