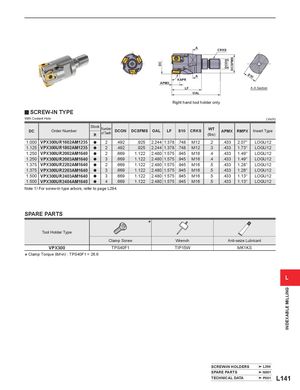

Общий каталог Mitsubishi 2020 - 2021 - страница 1316

A
CRKS


DCSFMS
DCON
DC
S1
A 0
KAPR
APMX
LF A-A Section
OAL
Right hand tool holder only.
y SCREW-IN TYPE
With Coolant Hole ( inch)
Stock
Number WT
DC Order Number DCON DCSFMS OAL LF S10 CRKS APMX RMPX Insert Type
of Teeth (lbs)
R
1.000 VPX300UR1602AM1235 a 2 .492 .925 2.244 1.378 .748 M12 .2 .433 2.07° LOGU12
1.125 VPX300UR1802AM1235 a 2 .492 .925 2.244 1.378 .748 M12 .3 .433 1.73° LOGU12
1.250 VPX300UR2002AM1640 a 2 .669 1.122 2.480 1.575 .945 M16 .4 .433 1.49° LOGU12
1.250 VPX300UR2003AM1640 a 3 .669 1.122 2.480 1.575 .945 M16 .4 .433 1.49° LOGU12
1.375 VPX300UR2202AM1640 a 2 .669 1.122 2.480 1.575 .945 M16 .5 .433 1.28° LOGU12
1.375 VPX300UR2203AM1640 a 3 .669 1.122 2.480 1.575 .945 M16 .5 .433 1.28° LOGU12
1.500 VPX300UR2403AM1640 a 3 .669 1.122 2.480 1.575 .945 M16 .5 .433 1.13° LOGU12
1.500 VPX300UR2404AM1640 a 4 .669 1.122 2.480 1.575 .945 M16 .5 .433 1.13° LOGU12
Note 1) For screw-in type arbors, refer to page L294.


SPARE PARTS
*
Tool Holder Type
Clamp Screw Wrench Anti-seize Lubricant
VPX300 TPS40F1 TIP15W MK1KS
* Clamp Torque (lbf-in) : TPS40F1 = 26.6
