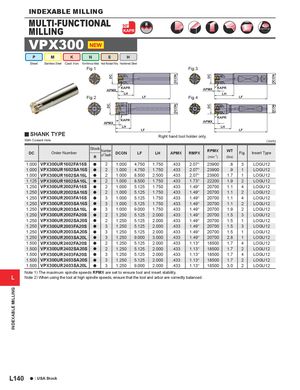

Общий каталог Mitsubishi 2020 - 2021 - страница 1315

INDEXABLE MILLING
MULTI-FUNCTIONAL 90°
MILLING KAPR

VPX300
P M K N S H
Steel Stainless Steel Cast Iron Non-ferrous Metal Heat Resistant Alloy Hardened Steel
Fig.1 Fig.3


DC
DCON
DC


DCON
KAPR APMX KAPR
APMX
LH LH
Fig.2 LF Fig.4 LF

DC


DC
DCON


DCON
KAPR
KAPR APMX
APMX
LH LH
LF LF
y SHANK TYPE Right hand tool holder only.
With Coolant Hole ( inch)
Stock
Number RPMX WT
DC Order Number DCON LF LH APMX RMPX Fig. Insert Type
of Teeth
R (min-1) (lbs)
1.000 VPX300UR1602FA16S a 2 1.000 4.750 1.750 .433 2.07° 23900 .8 3 LOGU12
1.000 VPX300UR1602SA16S a 2 1.000 4.750 1.750 .433 2.07° 23900 .9 1 LOGU12
1.000 VPX300UR1602SA16L a 2 1.000 8.500 2.500 .433 2.07° 23900 1.7 1 LOGU12
1.125 VPX300UR1802SA16L a 2 1.000 8.500 1.750 .433 1.73° 22200 1.9 2 LOGU12
1.250 VPX300UR2002FA16S a 2 1.000 5.125 1.750 .433 1.49° 20700 1.1 4 LOGU12
1.250 VPX300UR2002SA16S a 2 1.000 5.125 1.750 .433 1.49° 20700 1.1 2 LOGU12
1.250 VPX300UR2003FA16S a 3 1.000 5.125 1.750 .433 1.49° 20700 1.1 4 LOGU12
1.250 VPX300UR2003SA16S a 3 1.000 5.125 1.750 .433 1.49° 20700 1.1 2 LOGU12
1.250 VPX300UR2003SA16L a 3 1.000 9.000 1.750 .433 1.49° 20700 1.9 2 LOGU12
1.250 VPX300UR2002FA20S a 2 1.250 5.125 2.000 .433 1.49° 20700 1.5 3 LOGU12
1.250 VPX300UR2002SA20S a 2 1.250 5.125 2.000 .433 1.49° 20700 1.5 1 LOGU12
1.250 VPX300UR2003FA20S a 3 1.250 5.125 2.000 .433 1.49° 20700 1.5 3 LOGU12
1.250 VPX300UR2003SA20S a 3 1.250 5.125 2.000 .433 1.49° 20700 1.5 1 LOGU12
1.250 VPX300UR2003SA20L a 3 1.250 9.000 3.000 .433 1.49° 20700 2.8 1 LOGU12
1.500 VPX300UR2402FA20S a 2 1.250 5.125 2.000 .433 1.13° 18500 1.7 4 LOGU12
1.500 VPX300UR2402SA20S a 2 1.250 5.125 2.000 .433 1.13° 18500 1.7 2 LOGU12
1.500 VPX300UR2403FA20S a 3 1.250 5.125 2.000 .433 1.13° 18500 1.7 4 LOGU12
1.500 VPX300UR2403SA20S a 3 1.250 5.125 2.000 .433 1.13° 18500 1.7 2 LOGU12
1.500 VPX300UR2403SA20L a 3 1.250 9.000 2.000 .433 1.13° 18500 3.0 2 LOGU12
Note 1) The maximum spindle speeds RPMX are set to ensure tool and insert stability.
L Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced.
INDEXABLE MILLING


L140 a : USA Stock
