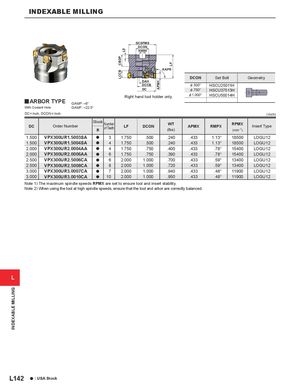

Общий каталог Mitsubishi 2020 - 2021 - страница 1317

INDEXABLE MILLING

DCSFMS
DCON
KWW


L8
CBDP


LF
KAPR


LCCB
DCON Set Bolt Geometry
DAH


APMX
DCCB &.500" HSCU25011H
DC &.750" HSCU37513H
Right hand tool holder only. &1.000" HSCU50014H
y ARBOR TYPE GAMP : ‒6°
With Coolant Hole GAMF : ‒22.5°
DC = Inch, DCON = Inch ( inch)
Stock
Number WT RPMX
DC Order Number LF DCON APMX RMPX Insert Type
of Teeth (lbs)
R (min-1)
1.500 VPX300UR1.5003SA a 3 1.750 .500 .240 .433 1.13° 18500 LOGU12
1.500 VPX300UR1.5004SA a 4 1.750 .500 .240 .433 1.13° 18500 LOGU12
2.000 VPX300UR2.0004AA a 4 1.750 .750 .400 .433 .78° 15400 LOGU12
2.000 VPX300UR2.0006AA a 6 1.750 .750 .390 .433 .78° 15400 LOGU12
2.500 VPX300UR2.5006CA a 6 2.000 1.000 .700 .433 .59° 13400 LOGU12
2.500 VPX300UR2.5008CA a 8 2.000 1.000 .720 .433 .59° 13400 LOGU12
3.000 VPX300UR3.0007CA a 7 2.000 1.000 .940 .433 .48° 11900 LOGU12
3.000 VPX300UR3.0010CA a 10 2.000 1.000 .950 .433 .48° 11900 LOGU12
Note 1) The maximum spindle speeds RPMX are set to ensure tool and insert stability.
Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced.


L
INDEXABLE MILLING


L142 a : USA Stock
