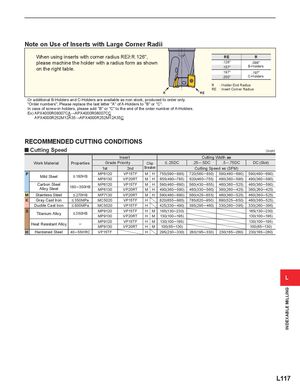

Note on Use of Inserts with Large Corner Radii
When using inserts with corner radius RE> R.126",
please machine the holder with a radius form as shown
on the right table.
R RE Or additional B-Holders and C-Holders are available as non stock, produced to order only. "Order numbers"; Please replace the last letter "A" of A-Holders to "B" or "C". In case of screw-in holders, please add "B" or "C" to the end of the order number of A-Holders. Ex) APX4000R08007CA→APX4000R08007CC APX4000R252M12A35→APX4000R252M12A35C
RECOMMENDED CUTTING CONDITIONS
| RE | R | |
| .126" | .098" | |
| .157" | B-Holders | |
| .197" | .197" | |
| .250" | C-Holders |
R : Holder End Radius RE : Insert Corner Radius
| y C | utting Speed | (inch) | |||||||
| Insert | Cutting | Width ae | |||||||
| Work Material | Properties | Grade | Priority | Chip | .25─.5DC | .5─.75DC | DC (Slot) | ||
| 1st | 2nd | Breaker | CuttingSpe | edvc (SFM) | |||||
| P | Mild Steel | MP6120 | VP15TF | M H | 755(590─885) | 720(560─850) | 590(460─690) | 590(460─690) | |
| MP6130 | VP20RT | M H | 655(490─785) | 620(460─755) | 490(360─590) | 490(360─590) | |||
| Carbon Steel | 180─350HB | MP6120 | VP15TF | M H | 590(460─690) | 560(430─655) | 460(360─525) | 460(360─590) | |
| Alloy Steel | MP6130 | VP20RT | M H | 490(360─590) | 460(330─560) | 360(260─425) | 360(260─425) | ||
| M | Stainless Steel | MP7130 | VP20RT | M H | 590(460─690) | 560(425─655) | 460(360─525) | 460(360─525) | |
| K | GrayCast Iron | MC5020 | VP15TF | H | 820(655─985) | 785(620─950) | 690(525─850) | 460(360─525) | |
| Ductile Cast Iron | MC5020 | VP15TF | H | 425(330─490) | 395(295─460) | 330(260─395) | 330(260─395) | ||
| S | Titi All | MP9120 | VP15TF | H M | 165(130─230) | 165(130─230) | |||
| anum oy | MP9130 | VP20RT | H M | 130(100─195) | 130(100─195) | ||||
| H | t Ritt All | ─ | MP9120 | VP15TF | H M | 130(100─195) | 130(100─195) | ||
| a essan oy | MP9130 | VP20RT | H M | 100(65─130) | 100(65─130) | ||||
| H | Hardened Steel | 40─55HRC | VP15TF | H | 295(230─330) | 280(195─330) | 230(165─260) | 230(165─260) |
