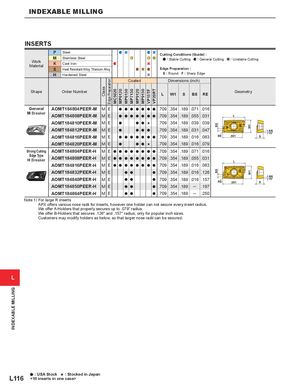

INSERTS
| Work Material | P M K Steel Stainless Steel Cast Iron | Cutti : | ng Co Stable | ndition Cuttin | s(Gui g : | de) : General | Cutting :Unstable Cut | ting | |||
| S H Heat Resistant Alloy, Titani Hardened Steel | um Alloy | Edge E : | Prepa Round | ration F :S | : harp E | dge | |||||
| Shape | Order Number | Class Edge Preparation | MC5020 MP6120 MP6130 MP7130 MP9120 Coated | MP9130 VP15TF VP20RT | L | W1 Dimen | S sions | BS (inch) | RE | Geometry | |
| General | AOMT184804PEER-M | M E | a a a a | a a a | .709 | .354 | .189 | .071 | .016 | ||
| MBreaker | AOMT184808PEER-M | M E | a a a a | a a a | .709 | .354 | .189 | .055 | .031 | L | |
| AOMT184810PEER-M | M E | a a | a s | .709 | .354 | .189 | .039 | .039 | 1 BS | ||
| AOMT184812PEER-M | M E | a a | a a | .709 | .354 | .189 | .031 | .047 | W | AN 15° | |
| AOMT184816PEER-M | M E | a a a a | a a a | .709 | .354 | .189 | .016 | .063 | .591 RE | S | |
| AOMT184820PEER-M | M E | a a | a s | .709 | .354 | .189 | .016 | .079 | |||
| Strong Cutting | AOMT184804PEER-H | M E | a a a a a | a a a | .709 | .354 | .189 | .071 | .016 | ||
| Edge Type HBreaker | AOMT184808PEER-H | M E | a a a a a | a a a | .709 | .354 | .189 | .055 | .031 | L | |
| AOMT184816PEER-H | M E | a a a a a | a a a | .709 | .354 | .189 | .016 | .063 | |||
| AOMT184832PEER-H | M E | a a | a | .709 | .354 | .189 | .016 | .126 | W1 BS | ||
| AOMT184840PEER-H | M E | a a | a | .709 | .354 | .189 | .016 | .157 | 591 RE | AN 15° S | |
| AOMT184850PEER-H | M E | a a | a | .709 | .354 | .189 | ─ | .197 | . | ||
| AOMT184864PEER-H | M E | a a | a | .709 | .354 | .189 | ─ | .250 |
Note 1) For large R inserts APX offers various nose radii for inserts, however one holder can not secure every insert radius. We offer A-Holders that properly secures up to .079" radius. We offer B-Holders that secures .126" and .157" radius, only for popular inch sizes. Customers may modify holders as below, so that larger nose radii can be secured.
