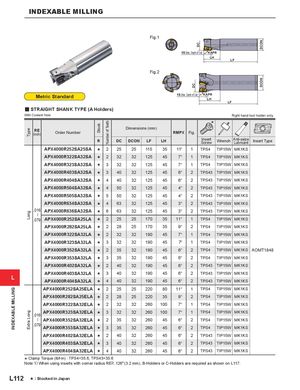

INDEXABLE MILLING Fig.1 DCON DC (Max. Depth of Cut) KAPR LH LF Fig.2 DCON DC (Max. Depth of Cut) KAPR Metric Standard LH LF y STRAIGHT SHANK TYPE (A Holders) With Coolant Hole Right hand tool holder only. * Number of Teeth Stock Dimensions (mm) RE Type (inch) Order Number RMPX Fig. R DC DCON LF LH Insert Screw Wrench Anti-seize Lubricant Insert Type APX4000R252SA25SA s 2 25 25 115 35 11° 1 TPS4 TIP15W MK1KS APX4000R322SA32SA s 2 32 32 125 45 7° 1 TPS4 TIP15W MK1KS APX4000R323SA32SA s 3 32 32 125 45 7° 1 TPS4 TIP15W MK1KS APX4000R403SA32SA s 3 40 32 125 45 6° 2 TPS43 TIP15W MK1KS APX4000R404SA32SA s 4 40 32 125 45 6° 2 TPS43 TIP15W MK1KS APX4000R504SA32SA s 4 50 32 125 45 4° 2 TPS43 TIP15W MK1KS APX4000R505SA32SA s 5 50 32 125 45 4° 2 TPS43 TIP15W MK1KS APX4000R634SA32SA s 4 63 32 125 45 3° 2 TPS43 TIP15W MK1KS .016 APX4000R636SA32SA s 6 63 32 125 45 3° 2 TPS43 TIP15W MK1KS Long ─ .079 APX4000R252SA25LA s 2 25 25 170 35 11° 1 TPS4 TIP15W MK1KS APX4000R282SA25LA s 2 28 25 170 35 9° 2 TPS4 TIP15W MK1KS APX4000R322SA32LA s 2 32 32 190 45 7° 1 TPS4 TIP15W MK1KS APX4000R323SA32LA s 3 32 32 190 45 7° 1 TPS4 TIP15W MK1KS APX4000R352SA32LA s 2 35 32 190 45 6° 2 TPS4 TIP15W MK1KS AOMT1848 APX4000R353SA32LA s 3 35 32 190 45 6° 2 TPS4 TIP15W MK1KS APX4000R402SA32LA s 2 40 32 190 45 6° 2 TPS43 TIP15W MK1KS APX4000R403SA32LA s 3 40 32 190 45 6° 2 TPS43 TIP15W MK1KS L APX4000R404SA32LA s 4 40 32 190 45 6° 2 TPS43 TIP15W MK1KS APX4000R252SA25ELA 2 25 25 220 80 11° 1 TPS4 TIP15W MK1KS INDEXABLE MILLING s APX4000R282SA25ELA s 2 28 25 220 35 9° 2 TPS4 TIP15W MK1KS APX4000R322SA32ELA s 2 32 32 260 100 7° 1 TPS4 TIP15W MK1KS APX4000R323SA32ELA 3 32 32 260 100 7° 1 TPS4 TIP15W MK1KS Extra Long s .016 APX4000R352SA32ELA s 2 35 32 260 45 6° 2 TPS4 TIP15W MK1KS ─ .079 APX4000R353SA32ELA s 3 35 32 260 45 6° 2 TPS4 TIP15W MK1KS APX4000R402SA32ELA s 2 40 32 260 45 6° 2 TPS43 TIP15W MK1KS APX4000R403SA32ELA s 3 40 32 260 45 6° 2 TPS43 TIP15W MK1KS APX4000R404SA32ELA s 4 40 32 260 45 6° 2 TPS43 TIP15W MK1KS * Clamp Torque (lbf-in) : TPS4=35.6, TPS43=35.6 Note 1) When using inserts with corner radius RE>.126"(3.2 mm), B-Holders or C-Holders are required as shown on L117. L112 s : Stocked in Japan
