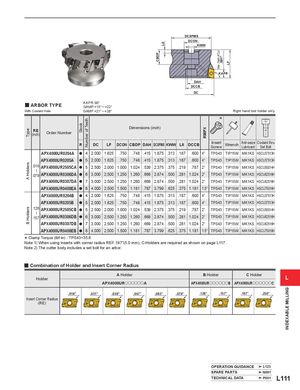

Общий каталог Mitsubishi 2020 - 2021 - страница 1286
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
DCSFMS DCON KWW
KAPR DAH DCCB DC
| y ARB With Coola | OR TYPE nt Hole | KA GA GA | PR:90° MP:+15° MF:+21° | ─+22° ─+28° | Righ | t hand too | l holder only. | |||||||||
| Type RE (inch) | Order Number | Stock ber of Teeth | Dimen | sions ( | inch) | RMPX | ||||||||||
| R Num | DC | LF | DCON | CBDP | DAH | DCSFMS | KWW | L8 | DCCB | Insert Screw | Wrench | Anti-seize Lubricant | Coolant thru Set Bolt | |||
| APX4000UR0204A | a 4 | 2.000 | 1.625 | .750 | .748 | .415 | 1.875 | .313 | .187 | .600 | 4° | TPS43 | TIP15W | MK1KS | HSCU37513H | |
| s | APX4000UR0205A | a 5 | 2.000 | 1.625 | .750 | .748 | .415 | 1.875 | .313 | .187 | .600 | 4° | TPS43 | TIP15W | MK1KS | HSCU37513H |
| .016 ─ lder | APX4000UR2505CA | a 5 | 2.500 | 2.000 | 1.000 | 1.024 | .539 | 2.375 | .375 | .219 | .787 | 2° | TPS43 | TIP15W | MK1KS | HSCU50014H |
| .079 Ho | APX4000UR0306DA | a 6 | 3.000 | 2.500 | 1.250 | 1.260 | .669 | 2.874 | .500 | .281 | 1.024 | 2° | TPS43 | TIP15W | MK1KS | HSCU62516H |
| A | APX4000UR0307DA | a 7 | 3.000 | 2.500 | 1.250 | 1.260 | .669 | 2.874 | .500 | .281 | 1.024 | 2° | TPS43 | TIP15W | MK1KS | HSCU62516H |
| APX4000UR0408EA | a 8 | 4.000 | 2.500 | 1.500 | 1.181 | .787 | 3.799 | .625 | .375 | 1.181 | 1.5° | TPS43 | TIP15W | MK1KS | HSCU75016H | |
| APX4000UR0204B | a 4 | 2.000 | 1.625 | .750 | .748 | .415 | 1.875 | .313 | .187 | .600 | 4° | TPS43 | TIP15W | MK1KS | HSCU37513H | |
| APX4000UR0205B | a 5 | 2.000 | 1.625 | .750 | .748 | .415 | 1.875 | .313 | .187 | .600 | 4° | TPS43 | TIP15W | MK1KS | HSCU37513H | |
| .126 ─ ders | APX4000UR2505CB | a 5 | 2.500 | 2.000 | 1.000 | 1.024 | .539 | 2.375 | .375 | .219 | .787 | 2° | TPS43 | TIP15W | MK1KS | HSCU50014H |
| .157 Hol | APX4000UR0306DB | a 6 | 3.000 | 2.500 | 1.250 | 1.260 | .669 | 2.874 | .500 | .281 | 1.024 | 2° | TPS43 | TIP15W | MK1KS | HSCU62516H |
| B | APX4000UR0307DB | a 7 | 3.000 | 2.500 | 1.250 | 1.260 | .669 | 2.874 | .500 | .281 | 1.024 | 2° | TPS43 | TIP15W | MK1KS | HSCU62516H |
| APX4000UR0408EB | a 8 | 4.000 | 2.500 | 1.500 | 1.181 | .787 | 3.799 | .625 | .375 | 1.181 | 1.5° | TPS43 | TIP15W | MK1KS | HSCU75016H |
* Clamp Torque (lbf-in) : TPS43=35.6
Note 1) When using inserts with corner radius RE>.197"(5.0 mm), C-Holders are required as shown on page L117. Note 2) The cutter body includes a set bolt for an arbor.
yCombination of Holder and Insert Corner Radius
| Holder | APX4000UR AHo | ooooooA lder | APX4000URo BHo | oooooB lder | APX4000URo CHo | oooooC lder | ||||
| .016" | .031" | .039" | .047" | .063" | .079" | .126" | .157" | .197" | .250" | |
| It C Rdi | ||||||||||
| nser orner aus (RE) |
