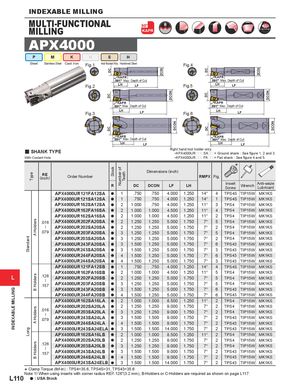

Общий каталог Mitsubishi 2020 - 2021 - страница 1285
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
APX4000
| P | M | K | N | S | H | ||||||
| Steel | Stainless Steel Cast Iron | Fig.1 | Heat Resistant Alloy Hardened Steel | Fig.4 | |||||||
| KAPR | KAPR | ||||||||||
| Max. Depth of Cut | Max. Depth of Cut |
Fig.2 LH LF Fig.5 LH LF
KAPR KAPR Max. Depth of Cut Max. Depth of Cut
Fig.3 LH LF Fig.6 LH LF
KAPR KAPR Max. Depth of Cut Max. Depth of Cut
| LH | LF | LH | LF | ||
| SHANK TYPE | Right hand tool holder only. |
y •APX4000UR SA = Ground shank : See figure 1, 2 and 3.
ppp pp With Coolant Hole •APX4000UR pppFApp = Flat shank : See figure 4 and 5.
| Type | RE (inch) | Order Number | Stock | mber of Teeth | Dimensio | ns (inch) | RMPX | Fig. | |||||
| R | Nu | DC | DCON | LF | LH | Insert Screw | Wrench | Anti-seize Lubricant | |||||
| APX4000UR121FA12SA | a | 1 | .750 | .750 | 4.000 | 1.250 | 14° | 4 | TPS4S | TIP15W | MK1KS | ||
| APX4000UR121SA12SA | a | 1 | .750 | .750 | 4.000 | 1.250 | 14° | 1 | TPS4S | TIP15W | MK1KS | ||
| APX4000UR162SA12SA | a | 2 | 1.000 | .750 | 4.000 | 1.250 | 11° | 3 | TPS4 | TIP15W | MK1KS | ||
| APX4000UR162FA16SA | a | 2 | 1.000 | 1.000 | 4.500 | 1.250 | 11° | 4 | TPS4 | TIP15W | MK1KS | ||
| APX4000UR162SA16SA | a | 2 | 1.000 | 1.000 | 4.500 | 1.250 | 11° | 2 | TPS4 | TIP15W | MK1KS | ||
| ers | .016 | APX4000UR202FA20SA | a | 2 | 1.250 | 1.250 | 5.000 | 1.750 | 7° | 5 | TPS4 | TIP15W | MK1KS |
| old | ─ | APX4000UR202SA20SA | a | 2 | 1.250 | 1.250 | 5.000 | 1.750 | 7° | 2 | TPS4 | TIP15W | MK1KS |
| A H | .079 | APX4000UR203FA20SA | a | 3 | 1.250 | 1.250 | 5.000 | 1.750 | 7° | 5 | TPS4 | TIP15W | MK1KS |
| ard | APX4000UR203SA20SA | a | 3 | 1.250 | 1.250 | 5.000 | 1.750 | 7° | 2 | TPS4 | TIP15W | MK1KS | |
| nd | APX4000UR243FA20SA | a | 3 | 1.500 | 1.250 | 5.000 | 1.750 | 7° | 6 | TPS43 | TIP15W | MK1KS | |
| Sta | APX4000UR243SA20SA | a | 3 | 1.500 | 1.250 | 5.000 | 1.750 | 7° | 3 | TPS43 | TIP15W | MK1KS | |
| APX4000UR244FA20SA | a | 4 | 1.500 | 1.250 | 5.000 | 1.750 | 7° | 6 | TPS43 | TIP15W | MK1KS | ||
| APX4000UR244SA20SA | a | 4 | 1.500 | 1.250 | 5.000 | 1.750 | 7° | 3 | TPS43 | TIP15W | MK1KS | ||
| APX4000UR121FA12SB | a | 1 | .750 | .750 | 4.000 | 1.250 | 14° | 4 | TPS4S | TIP15W | MK1KS | ||
| s | APX4000UR162FA16SB | a | 2 | 1.000 | 1.000 | 4.500 | 1.250 | 11° | 5 | TPS4 | TIP15W | MK1KS | |
| der | .126 ─ | APX4000UR202FA20SB | a | 2 | 1.250 | 1.250 | 5.000 | 1.750 | 7° | 5 | TPS4 | TIP15W | MK1KS |
| Hol | 157 | APX4000UR203FA20SB | a | 3 | 1.250 | 1.250 | 5.000 | 1.750 | 7° | 5 | TPS4 | TIP15W | MK1KS |
| B | . | APX4000UR243FA20SB | a | 3 | 1.500 | 1.250 | 5.000 | 1.750 | 7° | 6 | TPS43 | TIP15W | MK1KS |
| APX4000UR244FA20SB | a | 4 | 1.500 | 1.250 | 5.000 | 1.750 | 7° | 6 | TPS43 | TIP15W | MK1KS | ||
| APX4000UR162SA16LA | a | 2 | 1.000 | 1.000 | 8.500 | 1.250 | 11° | 2 | TPS4 | TIP15W | MK1KS | ||
| rs | APX4000UR202SA20LA | a | 2 | 1.250 | 1.250 | 9.000 | 1.750 | 7° | 2 | TPS4 | TIP15W | MK1KS | |
| lde | .016 | APX4000UR203SA20LA | a | 3 | 1.250 | 1.250 | 9.000 | 1.750 | 7° | 2 | TPS4 | TIP15W | MK1KS |
| Ho | ─ 079 | APX4000UR243SA24LA | a | 3 | 1.500 | 1.500 | 9.000 | 1.750 | 7° | 2 | TPS43 | TIP15W | MK1KS |
| A | . | APX4000UR244SA24LA | a | 4 | 1.500 | 1.500 | 9.000 | 1.750 | 7° | 2 | TPS43 | TIP15W | MK1KS |
| ng | APX4000UR243SA24ELA | a | 3 | 1.500 | 1.500 | 14.000 | 1.750 | 7° | 2 | TPS43 | TIP15W | MK1KS | |
| Lo | APX4000UR162SA16LB | a | 2 | 1.000 | 1.000 | 8.500 | 1.250 | 11° | 2 | TPS4 | TIP15W | MK1KS | |
| s | APX4000UR202SA20LB | a | 2 | 1.250 | 1.250 | 9.000 | 1.750 | 7° | 2 | TPS4 | TIP15W | MK1KS | |
| der | .126 ─ | APX4000UR203SA20LB | a | 3 | 1.250 | 1.250 | 9.000 | 1.750 | 7° | 2 | TPS4 | TIP15W | MK1KS |
| Hol | 157 | APX4000UR243SA24LB | a | 3 | 1.500 | 1.500 | 9.000 | 1.750 | 7° | 2 | TPS43 | TIP15W | MK1KS |
| B | . | APX4000UR244SA24LB | a | 4 | 1.500 | 1.500 | 9.000 | 1.750 | 7° | 2 | TPS43 | TIP15W | MK1KS |
| APX4000UR243SA24ELB | a | 3 | 1.500 | 1.500 | 14.000 | 1.750 | 7° | 2 | TPS43 | TIP15W | MK1KS |
* Clamp Torque (lbf-in) : TPS4=35.6, TPS4S=31, TPS43=35.6
L110 Note 1) When using inserts with corner radius RE>.126"(3.2 mm), B-Holders or C-Holders are required as shown on page L117. a: USA Stock
