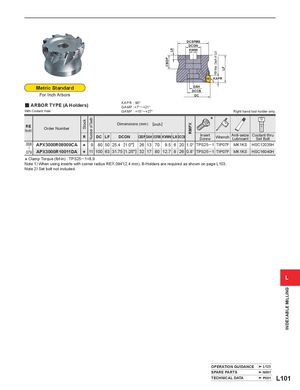

DCSFMS DCON KWW L8 10 (Max. Depth of Cut) CBDP LF KAPR Metric Standard DAH DCCB For Inch Arbors DC KAPR : 90° y ARBOR TYPE (A Holders) GAMP :+7°─+21° With Coolant Hole GAMF : +15°─+27° Right hand tool holder only. * Number of Teeth Stock Dimensions (mm) [inch] RMPX RE (inch) Order Number R DC LF DCON CBDP DAH DCSFMS KWW L8 DCCB Insert Anti-seize Coolant thru Screw Wrench Lubricant Set Bolt .008 APX3000R08009CA s 9 80 50 25.4 [1.0"] 26 13 70 9.5 6 20 1.0° TPS25 ─1 TIP07F MK1KS HSC12035H ─ .079 APX3000R10011DA s 11 100 63 31.75 [1.25"] 32 17 80 12.7 8 26 0.8° TPS25 ─1 TIP07F MK1KS HSC16040H * Clamp Torque (lbf-in) : TPS25 ─ 1=8.9 Note 1) When using inserts with corner radius RE>.094"(2.4 mm), B-Holders are required as shown on page L103. Note 2) Set bolt not included. L INDEXABLE MILLING OPERATION GUIDANCE L123 SPARE PARTS N001 TECHNICAL DATA P001 L101
