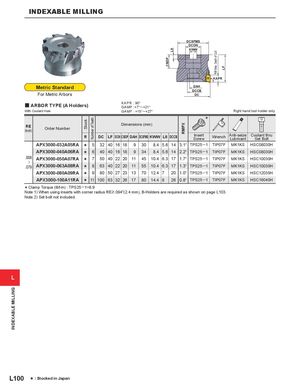

Общий каталог Mitsubishi 2020 - 2021 - страница 1275
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
DCSFMS DCON KWW
Metric Standard DAH DCCB For Metric Arbors DC
(Max. Depth of Cut KAPR
| y A With C | RBOR TYPE (A Holde oolant Hole | rs) | KAP GAM GAM | R : 90 P :+7 F : +1 | ° °─+21 5°─+ | ° 27° | Right han | d tool holder only. | |||||||
| RE (inch) | Order Number | Stock | ber of Teeth | Dim | ensio | ns (m | m) | MPX | |||||||
| R | Num | DC | LF DCON CBDP | DAH | DCSFMS | KWW | L8 | DCCB | R | Insert Screw | Wrench | Anti-seize Lubricant | Coolant thru Set Bolt | ||
| APX3000-032A05RA | s | 5 | 32 | 40 16 18 | 9 | 30 | 8.4 | 5.6 | 14 | 3.1° | TPS25─1 | TIP07F | MK1KS | HSC08030H | |
| APX3000-040A06RA | s | 6 | 40 | 40 16 18 | 9 | 34 | 8.4 | 5.6 | 14 | 2.2° | TPS25─1 | TIP07F | MK1KS | HSC08030H | |
| .008 ─ | APX3000-050A07RA | s | 7 | 50 | 40 22 20 | 11 | 45 | 10.4 | 6.3 | 17 | 1.7° | TPS25─1 | TIP07F | MK1KS | HSC10030H |
| .079 | APX3000-063A08RA | s | 8 | 63 | 40 22 20 | 11 | 55 | 10.4 | 6.3 | 17 | 1.3° | TPS25─1 | TIP07F | MK1KS | HSC10030H |
| APX3000-080A09RA | s | 9 | 80 | 50 27 23 | 13 | 70 | 12.4 | 7 | 20 | 1.0° | TPS25─1 | TIP07F | MK1KS | HSC12035H | |
| APX3000-100A11RA | s | 11 | 100 | 63 32 26 | 17 | 80 | 14.4 | 8 | 26 | 0.8° | TPS25─1 | TIP07F | MK1KS | HSC16040H |
* Clamp Torque (lbf-in) : TPS25─ 1=8.9
Note 1) When using inserts with corner radius RE>.094"(2.4 mm), B-Holders are required as shown on page L103. Note 2) Set bolt not included.
