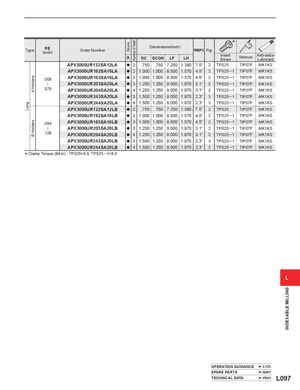

* Number of Teeth Stock RE Dimensions(inch) Type (inch) Order Number RMPX Fig. Insert Anti-seize R DC DCON LF LH Wrench Screw Lubricant APX3000UR122SA12LA a 2 .750 .750 7.250 1.380 7.5° 2 TPS25 TIP07F MK1KS APX3000UR162SA16LA a 2 1.000 1.000 8.500 1.570 4.5° 2 TPS25 ─ 1 TIP07F MK1KS APX3000UR163SA16LA 3 1.000 1.000 8.500 1.570 4.5° 2 TPS25 ─ 1 TIP07F MK1KS A Holders a .008 APX3000UR203SA20LA a 3 1.250 1.250 9.000 1.970 3.1° 2 TPS25 ─ 1 TIP07F MK1KS ─ .079 APX3000UR204SA20LA a 4 1.250 1.250 9.000 1.970 3.1° 2 TPS25 ─ 1 TIP07F MK1KS APX3000UR243SA20LA a 3 1.500 1.250 9.000 1.970 2.3° 3 TPS25 ─ 1 TIP07F MK1KS APX3000UR244SA20LA a 4 1.500 1.250 9.000 1.970 2.3° 3 TPS25 ─ 1 TIP07F MK1KS Long APX3000UR122SA12LB a 2 .750 .750 7.250 1.380 7.5° 2 TPS25 TIP07F MK1KS APX3000UR162SA16LB a 2 1.000 1.000 8.500 1.570 4.5° 2 TPS25 ─ 1 TIP07F MK1KS APX3000UR163SA16LB 3 1.000 1.000 8.500 1.570 4.5° 2 TPS25 ─ 1 TIP07F MK1KS B Holders a .094 APX3000UR203SA20LB a 3 1.250 1.250 9.000 1.970 3.1° 2 TPS25 ─ 1 TIP07F MK1KS ─ .126 APX3000UR204SA20LB a 4 1.250 1.250 9.000 1.970 3.1° 2 TPS25 ─ 1 TIP07F MK1KS APX3000UR243SA20LB a 3 1.500 1.250 9.000 1.970 2.3° 3 TPS25 ─ 1 TIP07F MK1KS APX3000UR244SA20LB a 4 1.500 1.250 9.000 1.970 2.3° 3 TPS25 ─ 1 TIP07F MK1KS * Clamp Torque (lbf-in) : TPS25=8.9, TPS25 ─ 1=8.9 L INDEXABLE MILLING OPERATION GUIDANCE L123 SPARE PARTS N001 TECHNICAL DATA P001 L097
