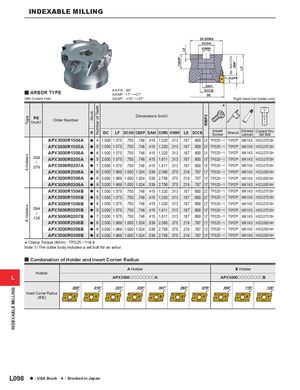

| y �ARBO | R TYPE | KAPR GAMP | : 90° :+7°─ | +21° | CBDP | L8 | D | CSF KWW DCO D DA DC | MS N C H CB | KAPR Max. Depth of Cut | LF | |||||
| With Coolant | Hole | GAMF | : +15° | ─+27° | Rig | ht hand to | ol holder only. | |||||||||
| Type RE (inch) | Order Number | mber of Teeth Stock | Dime | nsions | (inch) | RMPX | ||||||||||
| R N | DC | LF | DCON | CBDP | DAH | DCSFMS | KWW | L8 | DCCB | Insert Screw | Wrench | Anti-seize Lubricant | Coolant thru Set Bolt | |||
| APX3000R1504A | a 4 | 1.500 | 1.575 | .750 | .748 | .415 | 1.320 | .313 | .187 | .600 | 2.4° | TPS25─1 | TIP07F | MK1KS | HSCU37513H | |
| APX3000R1505A | a 5 | 1.500 | 1.575 | .750 | .748 | .415 | 1.320 | .313 | .187 | .600 | 2.4° | TPS25─1 | TIP07F | MK1KS | HSCU37513H | |
| s | APX3000R1506A | a 6 | 1.500 | 1.575 | .750 | .748 | .415 | 1.320 | .313 | .187 | .600 | 2.4° | TPS25─1 | TIP07F | MK1KS | HSCU37513H |
| .008 ─ lder | APX3000R0205A | a 5 | 2.000 | 1.575 | .750 | .748 | .415 | 1.811 | .313 | .187 | .600 | 1.6° | TPS25─1 | TIP07F | MK1KS | HSCU37513H |
| .079 Ho | APX3000R0207A | a 7 | 2.000 | 1.575 | .750 | .748 | .415 | 1.811 | .313 | .187 | .600 | 1.6° | TPS25─1 | TIP07F | MK1KS | HSCU37513H |
| A | APX3000R2506A | a 6 | 2.500 | 1.969 | 1.000 | 1.024 | .539 | 2.360 | .375 | .219 | .787 | 1.3° | TPS25─1 | TIP07F | MK1KS | HSCU50014H |
| APX3000R0306A | a 6 | 3.000 | 1.969 | 1.000 | 1.024 | .539 | 2.756 | .375 | .219 | .787 | 1.0° | TPS25─1 | TIP07F | MK1KS | HSCU50014H | |
| APX3000R0309A | a 9 | 3.000 | 1.969 | 1.000 | 1.024 | .539 | 2.756 | .375 | .219 | .787 | 1.0° | TPS25─1 | TIP07F | MK1KS | HSCU50014H | |
| APX3000R1504B | a 4 | 1.500 | 1.575 | .750 | .748 | .415 | 1.320 | .313 | .187 | .600 | 2.5° | TPS25─1 | TIP07F | MK1KS | HSCU37513H | |
| APX3000R1505B | a 5 | 1.500 | 1.575 | .750 | .748 | .415 | 1.320 | .313 | .187 | .600 | 2.5° | TPS25─1 | TIP07F | MK1KS | HSCU37513H | |
| s | APX3000R1506B | a 6 | 1.500 | 1.575 | .750 | .748 | .415 | 1.320 | .313 | .187 | .600 | 2.5° | TPS25─1 | TIP07F | MK1KS | HSCU37513H |
| .094 lder | APX3000R0205B | a 5 | 2.000 | 1.575 | .750 | .748 | .415 | 1.811 | .313 | .187 | .600 | 1.6° | TPS25─1 | TIP07F | MK1KS | HSCU37513H |
| ─ 126 Ho | APX3000R0207B | a 7 | 2.000 | 1.575 | .750 | .748 | .415 | 1.811 | .313 | .187 | .600 | 1.6° | TPS25─1 | TIP07F | MK1KS | HSCU37513H |
| . B | APX3000R2506B | a 6 | 2.500 | 1.969 | 1.000 | 1.024 | .539 | 2.360 | .375 | .219 | .787 | 1.3° | TPS25─1 | TIP07F | MK1KS | HSCU50014H |
| APX3000R0306B | a 6 | 3.000 | 1.969 | 1.000 | 1.024 | .539 | 2.756 | .375 | .219 | .787 | 1.0° | TPS25─1 | TIP07F | MK1KS | HSCU50014H | |
| APX3000R0309B | a 9 | 3.000 | 1.969 | 1.000 | 1.024 | .539 | 2.756 | .375 | .219 | .787 | 1.0° | TPS25─1 | TIP07F | MK1KS | HSCU50014H |
* Clamp Torque (lbf-in) : TPS25─ 1=8.9
Note 1) The cutter body includes a set bolt for an arbor.
yCombination of Holder and Insert Corner Radius
| Holder | APX30 | 00oooooo AHolder | ooA | APX30 | 00ooooooooB BHolder |
| Insert Corner Radius (RE) |
