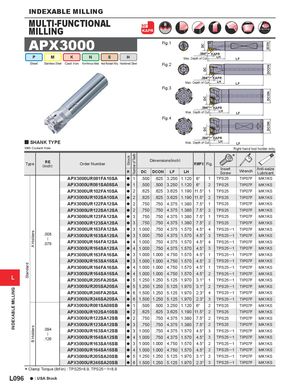

APX3000
Fig.1
P M K N S H
Steel Stainless Steel Cast Iron Non-ferrous Metal Heat Resistant Alloy Hardened Steel Fig.2
Fig.3
KAPR Max. Depth of Cut LH LF
KAPR
Max. Depth of Cut LH LF
KAPR
Max. Depth of Cut LH LF
Fig.4
KAPR
y SHANK TYPE Max. Depth of Cut LH
LF
| Type ith Coo | RE (inch) ant Hole | Order Number | Stock er of Teeth | Dimensi | ons(inch | ) | RMPX | Fig. | R | ight hand to | ol holder only. | |
| R Numb | DC | DCON | LF | LH | Insert Screw | Wrench | Anti-seize Lubricant | |||||
| APX3000UR081FA10SA | a 1 | .500 | .625 | 3.250 | 1.120 | 6° | 1 | TPS25 | TIP07F | MK1KS | ||
| APX3000UR081SA08SA | a 1 | .500 | .500 | 3.250 | 1.120 | 6° | 2 | TPS25 | TIP07F | MK1KS | ||
| APX3000UR102FA10SA | a 2 | .625 | .625 | 3.625 | 1.190 | 11.5° | 1 | TPS25 | TIP07F | MK1KS | ||
| APX3000UR102SA10SA | a 2 | .625 | .625 | 3.625 | 1.190 | 11.5° | 2 | TPS25 | TIP07F | MK1KS | ||
| APX3000UR122FA12SA | a 2 | .750 | .750 | 4.375 | 1.380 | 7.5° | 1 | TPS25 | TIP07F | MK1KS | ||
| APX3000UR122SA12SA | a 2 | .750 | .750 | 4.375 | 1.380 | 7.5° | 2 | TPS25 | TIP07F | MK1KS | ||
| APX3000UR123FA12SA | a 3 | .750 | .750 | 4.375 | 1.380 | 7.5° | 1 | TPS25 | TIP07F | MK1KS | ||
| APX3000UR123SA12SA | a 3 | .750 | .750 | 4.375 | 1.380 | 7.5° | 2 | TPS25 | TIP07F | MK1KS | ||
| s | APX3000UR163FA12SA | a 3 | 1.000 | .750 | 4.375 | 1.570 | 4.5° | 4 | TPS25─1 | TIP07F | MK1KS | |
| der | .008 | APX3000UR163SA12SA | a 3 | 1.000 | .750 | 4.375 | 1.570 | 4.5° | 3 | TPS25─1 | TIP07F | MK1KS |
| Hol | ─ .079 | APX3000UR164FA12SA | a 4 | 1.000 | .750 | 4.375 | 1.570 | 4.5° | 4 | TPS25─1 | TIP07F | MK1KS |
| A | APX3000UR164SA12SA | a 4 | 1.000 | .750 | 4.375 | 1.570 | 4.5° | 3 | TPS25─1 | TIP07F | MK1KS | |
| APX3000UR163FA16SA | a 3 | 1.000 | 1.000 | 4.750 | 1.570 | 4.5° | 1 | TPS25─1 | TIP07F | MK1KS | ||
| d | APX3000UR163SA16SA | a 3 | 1.000 | 1.000 | 4.750 | 1.570 | 4.5° | 2 | TPS25─1 | TIP07F | MK1KS | |
| dar | APX3000UR164FA16SA | a 4 | 1.000 | 1.000 | 4.750 | 1.570 | 4.5° | 1 | TPS25─1 | TIP07F | MK1KS | |
| tan | APX3000UR164SA16SA | a 4 | 1.000 | 1.000 | 4.750 | 1.570 | 4.5° | 2 | TPS25─1 | TIP07F | MK1KS | |
| S | APX3000UR205FA20SA | a 5 | 1.250 | 1.250 | 5.125 | 1.970 | 3.1° | 1 | TPS25─1 | TIP07F | MK1KS | |
| APX3000UR205SA20SA | a 5 | 1.250 | 1.250 | 5.125 | 1.970 | 3.1° | 2 | TPS25─1 | TIP07F | MK1KS | ||
| APX3000UR246FA20SA | a 6 | 1.500 | 1.250 | 5.125 | 1.970 | 2.3° | 4 | TPS25─1 | TIP07F | MK1KS | ||
| APX3000UR246SA20SA | a 6 | 1.500 | 1.250 | 5.125 | 1.970 | 2.3° | 3 | TPS25─1 | TIP07F | MK1KS | ||
| APX3000UR081SA08SB | a 1 | .500 | .500 | 3.250 | 1.120 | 6° | 2 | TPS25 | TIP07F | MK1KS | ||
| APX3000UR102SA10SB | a 2 | .625 | .625 | 3.625 | 1.190 | 11.5° | 2 | TPS25 | TIP07F | MK1KS | ||
| APX3000UR122SA12SB | a 2 | .750 | .750 | 4.375 | 1.380 | 7.5° | 2 | TPS25 | TIP07F | MK1KS | ||
| s | APX3000UR123SA12SB | a 3 | .750 | .750 | 4.375 | 1.380 | 7.5° | 2 | TPS25 | TIP07F | MK1KS | |
| der | .094 | APX3000UR163SA12SB | a 3 | 1.000 | .750 | 4.375 | 1.570 | 4.5° | 3 | TPS25─1 | TIP07F | MK1KS |
| Hol | ─ 126 | APX3000UR164SA12SB | a 4 | 1.000 | .750 | 4.375 | 1.570 | 4.5° | 3 | TPS25─1 | TIP07F | MK1KS |
| B | . | APX3000UR163SA16SB | a 3 | 1.000 | 1.000 | 4.750 | 1.570 | 4.5° | 2 | TPS25─1 | TIP07F | MK1KS |
| APX3000UR164SA16SB | a 4 | 1.000 | 1.000 | 4.750 | 1.570 | 4.5° | 2 | TPS25─1 | TIP07F | MK1KS | ||
| APX3000UR205SA20SB | a 5 | 1.250 | 1.250 | 5.125 | 1.970 | 3.1° | 2 | TPS25─1 | TIP07F | MK1KS | ||
| APX3000UR246SA20SB | a 6 | 1.500 | 1.250 | 5.125 | 1.970 | 2.3° | 3 | TPS25─1 | TIP07F | MK1KS |
