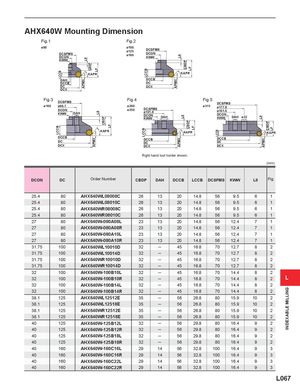

Fig.1 Fig.2 ø80 ø100 ø125 DCSFMS
DCSFMS ø160 DCON
DCON KWW KWW
KAPR KAPR DAH DCCB DCCB DC DC DCX DCX
| Fig.3 | Fig.4 | Fig.5 | |
| DCSFMS | DCSFMS | ||
| ø160 ø66.7 | ø200 | ø315 ø177.8 | |
| DCON | ø250 | DCSFMS | ø101.6 |
| KWW | DAH | ø101.6 | |
| DCON | DCON | ||
| KWW | DAH ø22 DAH KWW | ||
| KAPR | CBDP LF | ||
| KAPR KAPR | |||
| DCCB | DCCB | DCCB | |
| DC | DC | DC | |
| DCX | DCX | DCX |
Right hand tool holder shown. (mm)
| DCON | DC | Order Number | CBDP | DAH | DCCB | LCCB | DCSFMS | KWW | L8 | Fig. |
| 25.4 | 80 | AHX640WL08008C | 26 | 13 | 20 | 14.8 | 56 | 9.5 | 6 | 1 |
| 25.4 | 80 | AHX640WL08010C | 26 | 13 | 20 | 14.8 | 56 | 9.5 | 6 | 1 |
| 25.4 | 80 | AHX640WR08008C | 26 | 13 | 20 | 14.8 | 56 | 9.5 | 6 | 1 |
| 25.4 | 80 | AHX640WR08010C | 26 | 13 | 20 | 14.8 | 56 | 9.5 | 6 | 1 |
| 27 | 80 | AHX640W-080A08L | 23 | 13 | 20 | 14.8 | 56 | 12.4 | 7 | 1 |
| 27 | 80 | AHX640W-080A08R | 23 | 13 | 20 | 14.8 | 56 | 12.4 | 7 | 1 |
| 27 | 80 | AHX640W-080A10L | 23 | 13 | 20 | 14.8 | 56 | 12.4 | 7 | 1 |
| 27 | 80 | AHX640W-080A10R | 23 | 13 | 20 | 14.8 | 56 | 12.4 | 7 | 1 |
| 31.75 | 100 | AHX640WL10010D | 32 | ─ | 45 | 16.8 | 70 | 12.7 | 8 | 2 |
| 31.75 | 100 | AHX640WL10014D | 32 | ─ | 45 | 16.8 | 70 | 12.7 | 8 | 2 |
| 31.75 | 100 | AHX640WR10010D | 32 | ─ | 45 | 16.8 | 70 | 12.7 | 8 | 2 |
| 31.75 | 100 | AHX640WR10014D | 32 | ─ | 45 | 16.8 | 70 | 12.7 | 8 | 2 |
| 32 | 100 | AHX640W-100B10L | 32 | ─ | 45 | 16.8 | 70 | 14.4 | 8 | 2 |
| 32 | 100 | AHX640W-100B10R | 32 | ─ | 45 | 16.8 | 70 | 14.4 | 8 | 2 |
| 32 | 100 | AHX640W-100B14L | 32 | ─ | 45 | 16.8 | 70 | 14.4 | 8 | 2 |
| 32 | 100 | AHX640W-100B14R | 32 | ─ | 45 | 16.8 | 70 | 14.4 | 8 | 2 |
| 38.1 | 125 | AHX640WL12512E | 35 | ─ | 56 | 26.8 | 80 | 15.9 | 10 | 2 |
| 38.1 | 125 | AHX640WL12518E | 35 | ─ | 56 | 26.8 | 80 | 15.9 | 10 | 2 |
| 38.1 | 125 | AHX640WR12512E | 35 | ─ | 56 | 26.8 | 80 | 15.9 | 10 | 2 |
| 38.1 | 125 | AHX640WR12518E | 35 | ─ | 56 | 26.8 | 80 | 15.9 | 10 | 2 |
| 40 | 125 | AHX640W-125B12L | 32 | ─ | 56 | 29.8 | 80 | 16.4 | 9 | 2 |
| 40 | 125 | AHX640W-125B12R | 32 | ─ | 56 | 29.8 | 80 | 16.4 | 9 | 2 |
| 40 | 125 | AHX640W-125B18L | 32 | ─ | 56 | 29.8 | 80 | 16.4 | 9 | 2 |
| 40 | 125 | AHX640W-125B18R | 32 | ─ | 56 | 29.8 | 80 | 16.4 | 9 | 2 |
| 40 | 160 | AHX640W-160C16L | 29 | 14 | 56 | 32.8 | 100 | 16.4 | 9 | 3 |
| 40 | 160 | AHX640W-160C16R | 29 | 14 | 56 | 32.8 | 100 | 16.4 | 9 | 3 |
| 40 | 160 | AHX640W-160C22L | 29 | 14 | 56 | 32.8 | 100 | 16.4 | 9 | 3 |
| 40 | 160 | AHX640W-160C22R | 29 | 14 | 56 | 32.8 | 100 | 16.4 | 9 | 3 |
