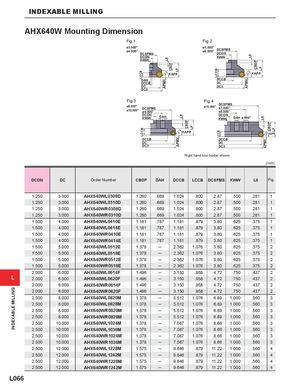

Общий каталог Mitsubishi 2020 - 2021 - страница 1241
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
Fig.1 Fig.2 ø3.000" ø5.000"
ø4.000" ø6.000" DCSFMS
DCSFMS DCON DCON KWW KWW
KAPR KAPR DAH DCCB DCCB DC DC DCX DCX Fig.3 Fig.4 DCSFMS
| ø8.000" | DCSFMS | ø12.000" | ø7.000" | ||
| ø10.000" | ø4.000" | ø4.000" | |||
| DCON | DAH | DCON | |||
| KWW | KWW | DAH ø.866" |
KAPR DCCB DCCB DC DC DCX DCX
Right hand tool holder shown.
CBDP LF KAPR
(inch)
| DCON | DC | Order Number | CBDP | DAH | DCCB | LCCB | DCSFMS | KWW | L8 | Fig. |
| 1.250 | 3.000 | AHX640WL0308D | 1.260 | .669 | 1.024 | .800 | 2.87 | .500 | .281 | 1 |
| 1.250 | 3.000 | AHX640WL0310D | 1.260 | .669 | 1.024 | .800 | 2.87 | .500 | .281 | 1 |
| 1.250 | 3.000 | AHX640WR0308D | 1.260 | .669 | 1.024 | .800 | 2.87 | .500 | .281 | 1 |
| 1.250 | 3.000 | AHX640WR0310D | 1.260 | .669 | 1.024 | .800 | 2.87 | .500 | .281 | 1 |
| 1.500 | 4.000 | AHX640WL0410E | 1.181 | .787 | 1.181 | .879 | 3.80 | .625 | .375 | 1 |
| 1.500 | 4.000 | AHX640WL0414E | 1.181 | .787 | 1.181 | .879 | 3.80 | .625 | .375 | 1 |
| 1.500 | 4.000 | AHX640WR0410E | 1.181 | .787 | 1.181 | .879 | 3.80 | .625 | .375 | 1 |
| 1.500 | 4.000 | AHX640WR0414E | 1.181 | .787 | 1.181 | .879 | 3.80 | .625 | .375 | 1 |
| 1.500 | 5.000 | AHX640WL0512E | 1.378 | ─ | 2.362 | 1.076 | 3.80 | .625 | .375 | 2 |
| 1.500 | 5.000 | AHX640WL0518E | 1.378 | ─ | 2.362 | 1.076 | 3.80 | .625 | .375 | 2 |
| 1.500 | 5.000 | AHX640WR0512E | 1.378 | ─ | 2.362 | 1.076 | 3.80 | .625 | .375 | 2 |
| 1.500 | 5.000 | AHX640WR0518E | 1.378 | ─ | 2.362 | 1.076 | 3.80 | .625 | .375 | 2 |
| 2.000 | 6.000 | AHX640WL0614F | 1.496 | ─ | 3.150 | .958 | 4.72 | .750 | .437 | 2 |
| 2.000 | 6.000 | AHX640WL0620F | 1.496 | ─ | 3.150 | .958 | 4.72 | .750 | .437 | 2 |
| 2.000 | 6.000 | AHX640WR0614F | 1.496 | ─ | 3.150 | .958 | 4.72 | .750 | .437 | 2 |
| 2.000 | 6.000 | AHX640WR0620F | 1.496 | ─ | 3.150 | .958 | 4.72 | .750 | .437 | 2 |
| 2.500 | 8.000 | AHX640WL0820M | 1.378 | ─ | 5.512 | 1.076 | 6.89 | 1.000 | .560 | 3 |
| 2.500 | 8.000 | AHX640WL0828M | 1.378 | ─ | 5.512 | 1.076 | 6.89 | 1.000 | .560 | 3 |
| 2.500 | 8.000 | AHX640WR0820M | 1.378 | ─ | 5.512 | 1.076 | 6.89 | 1.000 | .560 | 3 |
| 2.500 | 8.000 | AHX640WR0828M | 1.378 | ─ | 5.512 | 1.076 | 6.89 | 1.000 | .560 | 3 |
| 2.500 | 10.000 | AHX640WL1024M | 1.378 | ─ | 7.087 | 1.076 | 8.66 | 1.000 | .560 | 3 |
| 2.500 | 10.000 | AHX640WL1036M | 1.378 | ─ | 7.087 | 1.076 | 8.66 | 1.000 | .560 | 3 |
| 2.500 | 10.000 | AHX640WR1024M | 1.378 | ─ | 7.087 | 1.076 | 8.66 | 1.000 | .560 | 3 |
| 2.500 | 10.000 | AHX640WR1036M | 1.378 | ─ | 7.087 | 1.076 | 8.66 | 1.000 | .560 | 3 |
| 2.500 | 12.000 | AHX640WL1228M | 1.575 | ─ | 9.646 | .879 | 11.22 | 1.000 | .560 | 4 |
| 2.500 | 12.000 | AHX640WL1242M | 1.575 | ─ | 9.646 | .879 | 11.22 | 1.000 | .560 | 4 |
| 2.500 | 12.000 | AHX640WR1228M | 1.575 | ─ | 9.646 | .879 | 11.22 | 1.000 | .560 | 4 |
| 2.500 | 12.000 | AHX640WR1242M | 1.575 | ─ | 9.646 | .879 | 11.22 | 1.000 | .560 | 4 |
