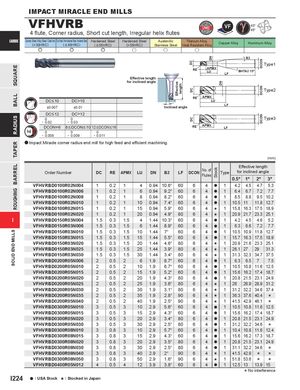

CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
e e e u u u
B2 Type1 RE APMX LU BHTA2 15°
LF Effective length for inclined angle Type2 RE APMX
| DC | 10 | LU DC>10 | ||
| LF Inclined angle | ||||
| ±0.007 | ±0.01 | |||
| DC | 12 | DC>12 | ||
| 0 | 0 | Type3 | ||
| - 0.02 | - 0.03 |
| DCON=6 8 | DCON | 10 12 | DCON | 16 | RE | APMX | ||
| < | < | < | < | LF | ||||
| 0 | 0 | 0 | ||||||
| - 0.008 | - 0.009 | - 0.011 |
a Impact Miracle corner radius end mill for high feed and efficient machining.
(mm)
| Order Number | DC | RE | APMX | LU | DN | B2 | LF | DCON | No. of Flute | tock | Type | Ef for | ffectiv inclin | fe leng ed an | f th gle |
| S | 0.5° | 1° | 2° | 3° | |||||||||||
| VFHVRBD0100R02N004 | 1 | 0.2 | 1 | 4 | 0.94 | 10.6° | 60 | 6 | 4 | a | 1 | 4.2 | 4.5 | 4.7 | 5.3 |
| VFHVRBD0100R02N006 | 1 | 0.2 | 1 | 6 | 0.94 | 9.2° | 60 | 6 | 4 | a | 1 | 6.4 | 6.7 | 7.2 | 7.7 |
| VFHVRBD0100R02N008 | 1 | 0.2 | 1 | 8 | 0.94 | 8.2° | 60 | 6 | 4 | a | 1 | 8.5 | 8.8 | 9.5 | 10.2 |
| VFHVRBD0100R02N010 | 1 | 0.2 | 1 | 10 | 0.94 | 7.4° | 60 | 6 | 4 | a | 1 | 10.5 | 11 | 11.8 | 12.7 |
| VFHVRBD0100R02N015 | 1 | 0.2 | 1 | 15 | 0.94 | 5.9° | 60 | 6 | 4 | s | 1 | 15.8 | 16.3 | 17.5 | 18.9 |
| VFHVRBD0100R02N020 | 1 | 0.2 | 1 | 20 | 0.94 | 4.9° | 80 | 6 | 4 | s | 1 | 20.9 | 21.7 | 23.3 | 25.1 |
| VFHVRBD0150R03N004 | 1.5 | 0.3 | 1.5 | 4 | 1.44 | 10.3° | 60 | 6 | 4 | a | 1 | 4.2 | 4.5 | 4.6 | 5.2 |
| VFHVRBD0150R03N006 | 1.5 | 0.3 | 1.5 | 6 | 1.44 | 8.9° | 60 | 6 | 4 | a | 1 | 6.3 | 6.6 | 7.2 | 7.7 |
| VFHVRBD0150R03N010 | 1.5 | 0.3 | 1.5 | 10 | 1.44 | 7° | 60 | 6 | 4 | a | 1 | 10.5 | 10.9 | 11.8 | 12.7 |
| VFHVRBD0150R03N015 | 1.5 | 0.3 | 1.5 | 15 | 1.44 | 5.5° | 60 | 6 | 4 | a | 1 | 15.7 | 16.3 | 17.5 | 18.9 |
| VFHVRBD0150R03N020 | 1.5 | 0.3 | 1.5 | 20 | 1.44 | 4.6° | 80 | 6 | 4 | s | 1 | 20.9 | 21.6 | 23.3 | 25.1 |
| VFHVRBD0150R03N025 | 1.5 | 0.3 | 1.5 | 25 | 1.44 | 3.9° | 80 | 6 | 4 | s | 1 | 26.1 | 27 | 29 | 31.3 |
| VFHVRBD0150R03N030 | 1.5 | 0.3 | 1.5 | 30 | 1.44 | 3.4° | 80 | 6 | 4 | s | 1 | 31.3 | 32.3 | 34.7 | 37.5 |
| VFHVRBD0200R05N006 | 2 | 0.5 | 2 | 6 | 1.9 | 8.7° | 60 | 6 | 4 | a | 1 | 6.3 | 6.5 | 7 | 7.5 |
| VFHVRBD0200R05N010 | 2 | 0.5 | 2 | 10 | 1.9 | 6.7° | 60 | 6 | 4 | a | 1 | 10.5 | 10.8 | 11.6 | 12.5 |
| VFHVRBD0200R05N015 | 2 | 0.5 | 2 | 15 | 1.9 | 5.2° | 60 | 6 | 4 | a | 1 | 15.6 | 16.2 | 17.4 | 18.7 |
| VFHVRBD0200R05N020 | 2 | 0.5 | 2 | 20 | 1.9 | 4.3° | 80 | 6 | 4 | a | 1 | 20.8 | 21.5 | 23.1 | 24.9 |
| VFHVRBD0200R05N025 | 2 | 0.5 | 2 | 25 | 1.9 | 3.6° | 80 | 6 | 4 | s | 1 | 26 | 26.9 | 28.9 | 31.2 |
| VFHVRBD0200R05N030 | 2 | 0.5 | 2 | 30 | 1.9 | 3.1° | 80 | 6 | 4 | s | 1 | 31.2 | 32.2 | 34.6 | 37.4 |
| VFHVRBD0200R05N035 | 2 | 0.5 | 2 | 35 | 1.9 | 2.8° | 90 | 6 | 4 | s | 1 | 36.3 | 37.6 | 40.4 | |
| VFHVRBD0200R05N040 | 2 | 0.5 | 2 | 40 | 1.9 | 2.5° | 90 | 6 | 4 | s | 1 | 41.5 | 42.9 | 46.1 | |
| VFHVRBD0300R05N010 | 3 | 0.5 | 3 | 10 | 2.9 | 5.6° | 60 | 6 | 4 | a | 1 | 10.5 | 10.8 | 11.6 | 12.5 |
| VFHVRBD0300R05N015 | 3 | 0.5 | 3 | 15 | 2.9 | 4.3° | 60 | 6 | 4 | a | 1 | 15.6 | 16.2 | 17.4 | 18.7 |
| VFHVRBD0300R05N020 | 3 | 0.5 | 3 | 20 | 2.9 | 3.4° | 80 | 6 | 4 | a | 1 | 20.8 | 21.5 | 23.1 | 24.9 |
| VFHVRBD0300R05N030 | 3 | 0.5 | 3 | 30 | 2.9 | 2.5° | 80 | 6 | 4 | a | 1 | 31.2 | 32.2 | 34.6 | |
| VFHVRBD0300R08N010 | 3 | 0.8 | 3 | 10 | 2.9 | 5.7° | 60 | 6 | 4 | a | 1 | 10.4 | 10.8 | 11.6 | 12.4 |
| VFHVRBD0300R08N015 | 3 | 0.8 | 3 | 15 | 2.9 | 4.3° | 60 | 6 | 4 | a | 1 | 15.6 | 16.2 | 17.3 | 18.7 |
| VFHVRBD0300R08N020 | 3 | 0.8 | 3 | 20 | 2.9 | 3.5° | 80 | 6 | 4 | a | 1 | 20.8 | 21.5 | 23.1 | 24.9 |
| VFHVRBD0300R08N030 | 3 | 0.8 | 3 | 30 | 2.9 | 2.5° | 80 | 6 | 4 | a | 1 | 31.1 | 32.2 | 34.6 | |
| VFHVRBD0300R08N040 | 3 | 0.8 | 3 | 40 | 2.9 | 2° | 90 | 6 | 4 | s | 1 | 41.5 | 42.9 | ||
| VFHVRBD0300R08N050 | 3 | 0.8 | 3 | 50 | 2.9 | 1.6° | 90 | 6 | 4 | s | 1 | 51.8 | 53.6 | ||
| VFHVRBD0400R05N012 | 4 | 0.5 | 4 | 12 | 3.9 | 3.8° | 60 | 6 | 4 | a | 1 | 12.5 | 13 | 13.9 | 15 |
a * No interference
