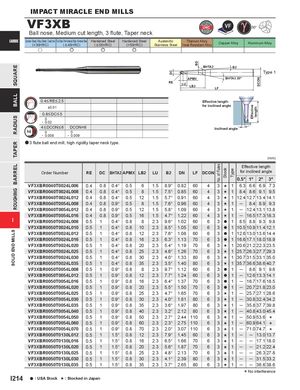

Общий каталог Mitsubishi 2020 - 2021 - страница 973
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
| (<30HRC) | ( | 45HRC) | ( | 55HRC) | (>55HRC) | Stainless Steel | Heat Resistant Alloy | Copper Alloy | Aluminum Alloy | ||
| u | e | e | e |
0.4< RE<2.5 ±0.01 0.8< DC< 5 0 - 0.02
4 DCON 6 DCON=8
0 0 - 0.008 - 0.009 a 3 flute ball end mill, high rigidity taper neck type.
RE
BHTA2 B2 APMX BHTA3 20° LU LB2 LF
Effective length for inclined angle
Inclined angle
Type 1
(mm)
| Order Number | RE | DC | BHTA2 | APMX | LB2 | LU | B2 | DN | LF | DCON | of Flutes | tock | ype | Ef for | ffectiv inclin | fe lengt ed ang | f h le |
| No. | S | T | 0.5° | 1° | 2° | 3° | |||||||||||
| VF3XBR0040T0024L006 | 0.4 | 0.8 | 0.4° | 0.5 | 6 | 1.5 | 8.9° | 0.82 | 60 | 4 | 3 | s | 1 | 6.3 | 6.6 | 6.9 | 7.3 |
| VF3XBR0040T0024L008 | 0.4 | 0.8 | 0.4° | 0.5 | 8 | 1.5 | 7.5° | 0.85 | 60 | 4 | 3 | s | 1 | 8.4 | 8.6 | 9.1 | 9.5 |
| VF3XBR0040T0024L012 | 0.4 | 0.8 | 0.4° | 0.5 | 12 | 1.5 | 5.7° | 0.91 | 60 | 4 | 3 | s | 1 | 12.4 | 12.7 | 13.4 | 14.1 |
| VF3XBR0040T0054L008 | 0.4 | 0.8 | 0.9° | 0.5 | 8 | 1.5 | 7.6° | 0.96 | 60 | 4 | 3 | s | 1 | ─ | 8.4 | 8.9 | 9.3 |
| VF3XBR0040T0054L012 | 0.4 | 0.8 | 0.9° | 0.5 | 12 | 1.5 | 5.8° | 1.09 | 60 | 4 | 3 | s | 1 | ─ | 12.4 | 13.1 | 13.8 |
| VF3XBR0040T0054L016 | 0.4 | 0.8 | 0.9° | 0.5 | 16 | 1.5 | 4.7° | 1.22 | 60 | 4 | 3 | s | 1 | ─ | 16.5 | 17.3 | 18.3 |
| VF3XBR0050T0024L008 | 0.5 | 1 | 0.4° | 0.8 | 8 | 2.3 | 9.6° | 1.02 | 60 | 6 | 3 | a | 1 | 8.5 | 8.8 | 9.3 | 9.8 |
| VF3XBR0050T0024L010 | 0.5 | 1 | 0.4° | 0.8 | 10 | 2.3 | 8.5° | 1.05 | 60 | 6 | 3 | a | 1 | 10.5 | 10.9 | 11.4 | 12.1 |
| VF3XBR0050T0024L012 | 0.5 | 1 | 0.4° | 0.8 | 12 | 2.3 | 7.6° | 1.08 | 60 | 6 | 3 | a | 1 | 12.6 | 13.0 | 13.6 | 14.4 |
| VF3XBR0050T0024L016 | 0.5 | 1 | 0.4° | 0.8 | 16 | 2.3 | 6.3° | 1.13 | 70 | 6 | 3 | a | 1 | 16.6 | 17.1 | 18.0 | 18.9 |
| VF3XBR0050T0024L020 | 0.5 | 1 | 0.4° | 0.8 | 20 | 2.3 | 5.4° | 1.19 | 70 | 6 | 3 | s | 1 | 20.6 | 21.2 | 22.3 | 23.5 |
| VF3XBR0050T0024L025 | 0.5 | 1 | 0.4° | 0.8 | 25 | 2.3 | 4.6° | 1.26 | 70 | 6 | 3 | s | 1 | 25.7 | 26.3 | 27.7 | 29.3 |
| VF3XBR0050T0024L030 | 0.5 | 1 | 0.4° | 0.8 | 30 | 2.3 | 4.0° | 1.33 | 80 | 6 | 3 | s | 1 | 30.7 | 31.5 | 33.1 | 35.0 |
| VF3XBR0050T0024L035 | 0.5 | 1 | 0.4° | 0.8 | 35 | 2.3 | 3.5° | 1.40 | 80 | 6 | 3 | s | 1 | 35.7 | 36.6 | 38.6 | 40.7 |
| VF3XBR0050T0054L008 | 0.5 | 1 | 0.9° | 0.8 | 8 | 2.3 | 9.7° | 1.12 | 60 | 6 | 3 | a | 1 | ─ | 8.6 | 9.1 | 9.6 |
| VF3XBR0050T0054L012 | 0.5 | 1 | 0.9° | 0.8 | 12 | 2.3 | 7.7° | 1.24 | 60 | 6 | 3 | a | 1 | ─ | 12.6 | 13.3 | 14.1 |
| VF3XBR0050T0054L016 | 0.5 | 1 | 0.9° | 0.8 | 16 | 2.3 | 6.4° | 1.37 | 70 | 6 | 3 | a | 1 | ─ | 16.7 | 17.6 | 18.5 |
| VF3XBR0050T0054L020 | 0.5 | 1 | 0.9° | 0.8 | 20 | 2.3 | 5.5° | 1.50 | 70 | 6 | 3 | a | 1 | ─ | 20.7 | 21.8 | 23.0 |
| VF3XBR0050T0054L025 | 0.5 | 1 | 0.9° | 0.8 | 25 | 2.3 | 4.7° | 1.65 | 70 | 6 | 3 | s | 1 | ─ | 25.7 | 27.1 | 28.6 |
| VF3XBR0050T0054L030 | 0.5 | 1 | 0.9° | 0.8 | 30 | 2.3 | 4.0° | 1.81 | 80 | 6 | 3 | s | 1 | ─ | 30.8 | 32.4 | 34.2 |
| VF3XBR0050T0054L035 | 0.5 | 1 | 0.9° | 0.8 | 35 | 2.3 | 3.6° | 1.97 | 80 | 6 | 3 | s | 1 | ─ | 35.8 | 37.7 | 39.8 |
| VF3XBR0050T0054L040 | 0.5 | 1 | 0.9° | 0.8 | 40 | 2.3 | 3.2° | 2.12 | 80 | 6 | 3 | s | 1 | ─ | 40.8 | 43.0 | 45.4 |
| VF3XBR0050T0054L050 | 0.5 | 1 | 0.9° | 0.8 | 50 | 2.3 | 2.7° | 2.44 | 110 | 6 | 3 | s | 1 | ─ | 50.9 | 53.6 | |
| VF3XBR0050T0054L060 | 0.5 | 1 | 0.9° | 0.8 | 60 | 2.3 | 2.3° | 2.75 | 110 | 6 | 3 | s | 1 | ─ | 60.9 | 64.1 | |
| VF3XBR0050T0054L070 | 0.5 | 1 | 0.9° | 0.8 | 70 | 2.3 | 2.0° | 3.07 | 110 | 6 | 3 | s | 1 | ─ | 71.0 | 74.7 | |
| VF3XBR0050T0130L012 | 0.5 | 1 | 1.5° | 0.8 | 12 | 2.3 | 7.9° | 1.45 | 60 | 6 | 3 | s | 1 | ─ | ─ | 13.0 | 13.7 |
| VF3XBR0050T0130L016 | 0.5 | 1 | 1.5° | 0.8 | 16 | 2.3 | 6.5° | 1.66 | 70 | 6 | 3 | s | 1 | ─ | ─ | 17.1 | 18.0 |
| VF3XBR0050T0130L020 | 0.5 | 1 | 1.5° | 0.8 | 20 | 2.3 | 5.6° | 1.87 | 70 | 6 | 3 | s | 1 | ─ | ─ | 21.2 | 22.4 |
| VF3XBR0050T0130L025 | 0.5 | 1 | 1.5° | 0.8 | 25 | 2.3 | 4.8° | 2.13 | 70 | 6 | 3 | s | 1 | ─ | ─ | 26.3 | 27.8 |
| VF3XBR0050T0130L030 | 0.5 | 1 | 1.5° | 0.8 | 30 | 2.3 | 4.1° | 2.39 | 80 | 6 | 3 | s | 1 | ─ | ─ | 31.5 | 33.2 |
| VF3XBR0050T0130L035 | 0.5 | 1 | 1.5° | 0.8 | 35 | 2.3 | 3.7° | 2.65 | 80 | 6 | 3 | s | 1 | ─ | ─ | 36.6 | 38.6 |
