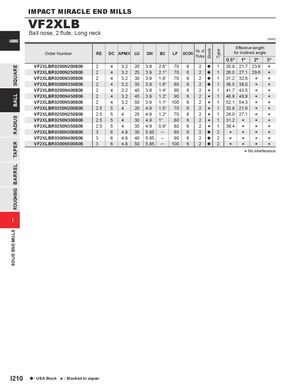

Общий каталог Mitsubishi 2020 - 2021 - страница 969
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
CARBIDE (mm)
| Order Number | RE | DC | APMX | LU | DN | B2 | LF | DCON | No. of Flt | tock | ype | f f | Effectiv or inclin | fe lengt ed ang | f h le |
| ues | S | T | 0.5° | 1° | 2° | 3° | |||||||||
| VF2XLBR0200N200S06 | 2 | 4 | 3.2 | 20 | 3.9 | 2.6° | 70 | 6 | 2 | a | 1 | 20.8 | 21.7 | 23.6 | |
| VF2XLBR0200N250S06 | 2 | 4 | 3.2 | 25 | 3.9 | 2.1° | 70 | 6 | 2 | a | 1 | 26.0 | 27.1 | 29.6 | |
| VF2XLBR0200N300S06 | 2 | 4 | 3.2 | 30 | 3.9 | 1.8° | 70 | 6 | 2 | a | 1 | 31.2 | 32.6 | ||
| VF2XLBR0200N350S06 | 2 | 4 | 3.2 | 35 | 3.9 | 1.6° | 80 | 6 | 2 | a | 1 | 36.5 | 38.0 | ||
| VF2XLBR0200N400S06 | 2 | 4 | 3.2 | 40 | 3.9 | 1.4° | 90 | 6 | 2 | s | 1 | 41.7 | 43.5 | ||
| VF2XLBR0200N450S06 | 2 | 4 | 3.2 | 45 | 3.9 | 1.2° | 90 | 6 | 2 | s | 1 | 46.9 | 48.9 | ||
| VF2XLBR0200N500S06 | 2 | 4 | 3.2 | 50 | 3.9 | 1.1° | 100 | 6 | 2 | s | 1 | 52.1 | 54.3 | ||
| VF2XLBR0250N200S06 | 2.5 | 5 | 4 | 20 | 4.9 | 1.5° | 70 | 6 | 2 | s | 1 | 20.8 | 21.6 | ||
| VF2XLBR0250N250S06 | 2.5 | 5 | 4 | 25 | 4.9 | 1.2° | 70 | 6 | 2 | s | 1 | 26.0 | 27.1 | ||
| VF2XLBR0250N300S06 | 2.5 | 5 | 4 | 30 | 4.9 | 1° | 80 | 6 | 2 | s | 1 | 31.2 | |||
| VF2XLBR0250N350S06 | 2.5 | 5 | 4 | 35 | 4.9 | 0.9° | 80 | 6 | 2 | s | 1 | 36.4 | |||
| VF2XLBR0300N300S06 | 3 | 6 | 4.8 | 30 | 5.85 | ─ | 80 | 6 | 2 | a | 2 | ||||
| VF2XLBR0300N400S06 | 3 | 6 | 4.8 | 40 | 5.85 | ─ | 90 | 6 | 2 | a | 2 | ||||
| VF2XLBR0300N500S06 | 3 | 6 | 4.8 | 50 | 5.85 | ─ | 100 | 6 | 2 | a | 2 |
