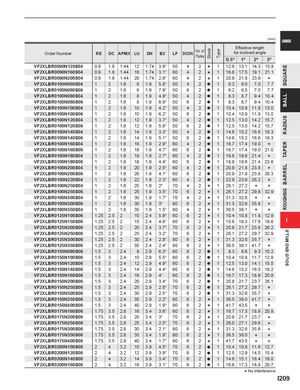

(mm) CARBIDE
| Order Number | RE | DC | APMX | LU | DN | B2 | LF | DCON | No. of | ock | ype | f f | Effectiv or inclin | fe lengt ed ang | f h le |
| Flutes | St | T | 0.5° | 1° | 2° | 3° | |||||||||
| VF2XLBR0090N120S04 | 0.9 | 1.8 | 1.44 | 12 | 1.74 | 3.9° | 50 | 4 | 2 | s | 1 | 12.6 | 13.1 | 14.3 | 15.8 |
| VF2XLBR0090N160S04 | 0.9 | 1.8 | 1.44 | 16 | 1.74 | 3.1° | 60 | 4 | 2 | s | 1 | 16.8 | 17.5 | 19.1 | 21.1 |
| VF2XLBR0090N200S04 | 0.9 | 1.8 | 1.44 | 20 | 1.74 | 2.6° | 60 | 4 | 2 | s | 1 | 20.9 | 21.8 | 23.9 | |
| VF2XLBR0100N060S04 | 1 | 2 | 1.6 | 6 | 1.9 | 5.8° | 50 | 4 | 2 | a | 1 | 6.2 | 6.5 | 7.0 | 7.7 |
| VF2XLBR0100N060S06 | 1 | 2 | 1.6 | 6 | 1.9 | 7.9° | 50 | 6 | 2 | a | 1 | 6.2 | 6.5 | 7.0 | 7.7 |
| VF2XLBR0100N080S04 | 1 | 2 | 1.6 | 8 | 1.9 | 4.9° | 50 | 4 | 2 | a | 1 | 8.3 | 8.7 | 9.4 | 10.4 |
| VF2XLBR0100N080S06 | 1 | 2 | 1.6 | 8 | 1.9 | 6.9° | 50 | 6 | 2 | a | 1 | 8.3 | 8.7 | 9.4 | 10.4 |
| VF2XLBR0100N100S04 | 1 | 2 | 1.6 | 10 | 1.9 | 4.2° | 50 | 4 | 2 | a | 1 | 10.4 | 10.9 | 11.8 | 13.0 |
| VF2XLBR0100N100S06 | 1 | 2 | 1.6 | 10 | 1.9 | 6.2° | 50 | 6 | 2 | a | 1 | 10.4 | 10.9 | 11.8 | 13.0 |
| VF2XLBR0100N120S04 | 1 | 2 | 1.6 | 12 | 1.9 | 3.7° | 50 | 4 | 2 | a | 1 | 12.5 | 13.0 | 14.2 | 15.7 |
| VF2XLBR0100N120S06 | 1 | 2 | 1.6 | 12 | 1.9 | 5.6° | 50 | 6 | 2 | a | 1 | 12.5 | 13.0 | 14.2 | 15.7 |
| VF2XLBR0100N140S04 | 1 | 2 | 1.6 | 14 | 1.9 | 3.3° | 50 | 4 | 2 | a | 1 | 14.6 | 15.2 | 16.6 | 18.3 |
| VF2XLBR0100N140S06 | 1 | 2 | 1.6 | 14 | 1.9 | 5.1° | 50 | 6 | 2 | a | 1 | 14.6 | 15.2 | 16.6 | 18.3 |
| VF2XLBR0100N160S04 | 1 | 2 | 1.6 | 16 | 1.9 | 2.9° | 60 | 4 | 2 | a | 1 | 16.7 | 17.4 | 19.0 | |
| VF2XLBR0100N160S06 | 1 | 2 | 1.6 | 16 | 1.9 | 4.7° | 60 | 6 | 2 | a | 1 | 16.7 | 17.4 | 19.0 | 21.0 |
| VF2XLBR0100N180S04 | 1 | 2 | 1.6 | 18 | 1.9 | 2.7° | 60 | 4 | 2 | a | 1 | 18.8 | 19.6 | 21.4 | |
| VF2XLBR0100N180S06 | 1 | 2 | 1.6 | 18 | 1.9 | 4.4° | 60 | 6 | 2 | a | 1 | 18.8 | 19.6 | 21.4 | 23.6 |
| VF2XLBR0100N200S04 | 1 | 2 | 1.6 | 20 | 1.9 | 2.5° | 60 | 4 | 2 | a | 1 | 20.9 | 21.8 | 23.8 | |
| VF2XLBR0100N200S06 | 1 | 2 | 1.6 | 20 | 1.9 | 4.1° | 60 | 6 | 2 | a | 1 | 20.9 | 21.8 | 23.8 | 26.3 |
| VF2XLBR0100N220S04 | 1 | 2 | 1.6 | 22 | 1.9 | 2.3° | 60 | 4 | 2 | a | 1 | 22.9 | 23.9 | 26.2 | |
| VF2XLBR0100N250S04 | 1 | 2 | 1.6 | 25 | 1.9 | 2° | 70 | 4 | 2 | s | 1 | 26.1 | 27.2 | ||
| VF2XLBR0100N250S06 | 1 | 2 | 1.6 | 25 | 1.9 | 3.5° | 70 | 6 | 2 | s | 1 | 26.1 | 27.2 | 29.8 | 32.9 |
| VF2XLBR0100N300S04 | 1 | 2 | 1.6 | 30 | 1.9 | 1.7° | 70 | 4 | 2 | s | 1 | 31.3 | 32.6 | ||
| VF2XLBR0100N300S06 | 1 | 2 | 1.6 | 30 | 1.9 | 3° | 80 | 6 | 2 | s | 1 | 31.3 | 32.6 | 35.8 | |
| VF2XLBR0100N350S04 | 1 | 2 | 1.6 | 35 | 1.9 | 1.5° | 80 | 4 | 2 | s | 1 | 36.5 | 38.1 | ||
| VF2XLBR0125N100S06 | 1.25 | 2.5 | 2 | 10 | 2.4 | 5.9° | 60 | 6 | 2 | s | 1 | 10.4 | 10.8 | 11.8 | 12.9 |
| VF2XLBR0125N150S06 | 1.25 | 2.5 | 2 | 15 | 2.4 | 4.6° | 60 | 6 | 2 | s | 1 | 15.6 | 16.3 | 17.8 | 19.6 |
| VF2XLBR0125N200S06 | 1.25 | 2.5 | 2 | 20 | 2.4 | 3.7° | 70 | 6 | 2 | s | 1 | 20.8 | 21.7 | 23.8 | 26.2 |
| VF2XLBR0125N250S06 | 1.25 | 2.5 | 2 | 25 | 2.4 | 3.2° | 70 | 6 | 2 | s | 1 | 26.1 | 27.2 | 29.7 | 32.9 |
| VF2XLBR0125N300S06 | 1.25 | 2.5 | 2 | 30 | 2.4 | 2.8° | 80 | 6 | 2 | s | 1 | 31.3 | 32.6 | 35.7 | |
| VF2XLBR0125N350S06 | 1.25 | 2.5 | 2 | 35 | 2.4 | 2.4° | 80 | 6 | 2 | s | 1 | 36.5 | 38.1 | 41.7 | |
| VF2XLBR0150N080S06 | 1.5 | 3 | 2.4 | 8 | 2.9 | 6.3° | 60 | 6 | 2 | a | 1 | 8.3 | 8.6 | 9.3 | 10.2 |
| VF2XLBR0150N100S06 | 1.5 | 3 | 2.4 | 10 | 2.9 | 5.5° | 60 | 6 | 2 | a | 1 | 10.4 | 10.8 | 11.7 | 12.9 |
| VF2XLBR0150N120S06 | 1.5 | 3 | 2.4 | 12 | 2.9 | 4.9° | 60 | 6 | 2 | a | 1 | 12.5 | 13.0 | 14.1 | 15.5 |
| VF2XLBR0150N140S06 | 1.5 | 3 | 2.4 | 14 | 2.9 | 4.4° | 60 | 6 | 2 | a | 1 | 14.6 | 15.2 | 16.5 | 18.2 |
| VF2XLBR0150N160S06 | 1.5 | 3 | 2.4 | 16 | 2.9 | 4° | 60 | 6 | 2 | a | 1 | 16.7 | 17.3 | 18.9 | 20.8 |
| VF2XLBR0150N200S06 | 1.5 | 3 | 2.4 | 20 | 2.9 | 3.4° | 70 | 6 | 2 | a | 1 | 20.8 | 21.7 | 23.7 | 26.1 |
| VF2XLBR0150N250S06 | 1.5 | 3 | 2.4 | 25 | 2.9 | 2.8° | 70 | 6 | 2 | a | 1 | 26.1 | 27.2 | 29.7 | |
| VF2XLBR0150N300S06 | 1.5 | 3 | 2.4 | 30 | 2.9 | 2.5° | 70 | 6 | 2 | a | 1 | 31.3 | 32.6 | 35.7 | |
| VF2XLBR0150N350S06 | 1.5 | 3 | 2.4 | 35 | 2.9 | 2.2° | 80 | 6 | 2 | s | 1 | 36.5 | 38.0 | 41.7 | |
| VF2XLBR0150N400S06 | 1.5 | 3 | 2.4 | 40 | 2.9 | 1.9° | 90 | 6 | 2 | s | 1 | 41.7 | 43.5 | ||
| VF2XLBR0175N160S06 | 1.75 | 3.5 | 2.8 | 16 | 3.4 | 3.6° | 60 | 6 | 2 | s | 1 | 16.7 | 17.3 | 18.9 | 20.8 |
| VF2XLBR0175N200S06 | 1.75 | 3.5 | 2.8 | 20 | 3.4 | 3° | 70 | 6 | 2 | s | 1 | 20.8 | 21.7 | 23.7 | |
| VF2XLBR0175N250S06 | 1.75 | 3.5 | 2.8 | 25 | 3.4 | 2.5° | 70 | 6 | 2 | s | 1 | 26.0 | 27.1 | 29.6 | |
| VF2XLBR0175N300S06 | 1.75 | 3.5 | 2.8 | 30 | 3.4 | 2.1° | 80 | 6 | 2 | s | 1 | 31.3 | 32.6 | 35.6 | |
| VF2XLBR0175N350S06 | 1.75 | 3.5 | 2.8 | 35 | 3.4 | 1.9° | 80 | 6 | 2 | s | 1 | 36.5 | 38.0 | ||
| VF2XLBR0175N400S06 | 1.75 | 3.5 | 2.8 | 40 | 3.4 | 1.7° | 90 | 6 | 2 | s | 1 | 41.7 | 43.5 | ||
| VF2XLBR0200N100S06 | 2 | 4 | 3.2 | 10 | 3.9 | 4.5° | 70 | 6 | 2 | a | 1 | 10.4 | 10.8 | 11.6 | 12.7 |
| VF2XLBR0200N120S06 | 2 | 4 | 3.2 | 12 | 3.9 | 3.9° | 70 | 6 | 2 | a | 1 | 12.5 | 12.9 | 14.0 | 15.4 |
| VF2XLBR0200N140S06 | 2 | 4 | 32 | 14 | 39 | 34° | 70 | 6 | 2 | a | 1 | 146 | 151 | 164 | 180 |
| VF2XLBR0200N160S06 | 2 | 4 | . 3.2 | 16 | . 3.9 | . 3.1° | 70 | 6 | 2 | a | 1 | . 16.6 | . 17.3 | . 18.8 | . 20.7 |
