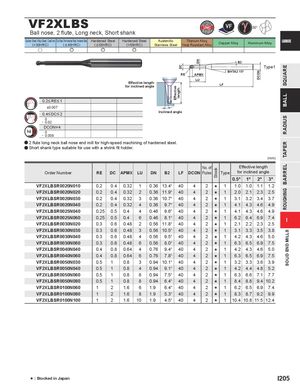

VF2XLBS
Ball nose, 2 flute, Long neck, Short shank
Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
| (<30HRC) | ( | 45HRC) | ( | 55HRC) | (>55HRC) | Stainless Steel | Heat Resistant Alloy | ||
| u | e | e | e |
RE APMX LU Effective length for inclined angle
0.2< RE<1 ±0.007
0.4 DC 2 Inclined angle
0 - 0.02 DCON=4 0
- 0.008 a 2 flute long neck ball nose end mill for high-speed machining of hardened steel. a Short shank type suitable for use with a shrink fit holder.
CARBIDE Copper Alloy Aluminum Alloy
B2 Type1 BHTA2 15° LF
(mm)
| Order Number | RE | DC | APMX | LU | DN | B2 | LF | DCON | No. of Flutes | tock | Type | Ef for | ffectiv inclin | fe lengt ed ang | f h le |
| S | 0.5° | 1° | 2° | 3° | |||||||||||
| VF2XLBSR0020N010 | 0.2 | 0.4 | 0.32 | 1 | 0.36 | 13.4° | 40 | 4 | 2 | s | 1 | 1.0 | 1.0 | 1.1 | 1.2 |
| VF2XLBSR0020N020 | 0.2 | 0.4 | 0.32 | 2 | 0.36 | 11.9° | 40 | 4 | 2 | s | 1 | 2.0 | 2.1 | 2.3 | 2.5 |
| VF2XLBSR0020N030 | 0.2 | 0.4 | 0.32 | 3 | 0.36 | 10.7° | 40 | 4 | 2 | s | 1 | 3.1 | 3.2 | 3.4 | 3.7 |
| VF2XLBSR0020N040 | 0.2 | 0.4 | 0.32 | 4 | 0.36 | 9.7° | 40 | 4 | 2 | s | 1 | 4.1 | 4.3 | 4.6 | 4.9 |
| VF2XLBSR0025N040 | 0.25 | 0.5 | 0.4 | 4 | 0.46 | 9.6° | 40 | 4 | 2 | s | 1 | 4.1 | 4.3 | 4.6 | 4.9 |
| VF2XLBSR0025N060 | 0.25 | 0.5 | 0.4 | 6 | 0.46 | 8.1° | 40 | 4 | 2 | s | 1 | 6.2 | 6.4 | 6.9 | 7.4 |
| VF2XLBSR0030N020 | 0.3 | 0.6 | 0.48 | 2 | 0.56 | 11.8° | 40 | 4 | 2 | s | 1 | 2.1 | 2.2 | 2.3 | 2.5 |
| VF2XLBSR0030N030 | 0.3 | 0.6 | 0.48 | 3 | 0.56 | 10.5° | 40 | 4 | 2 | s | 1 | 3.1 | 3.3 | 3.5 | 3.8 |
| VF2XLBSR0030N040 | 0.3 | 0.6 | 0.48 | 4 | 0.56 | 9.5° | 40 | 4 | 2 | s | 1 | 4.2 | 4.3 | 4.6 | 5.0 |
| VF2XLBSR0030N060 | 0.3 | 0.6 | 0.48 | 6 | 0.56 | 8.0° | 40 | 4 | 2 | s | 1 | 6.3 | 6.5 | 6.9 | 7.5 |
| VF2XLBSR0040N040 | 0.4 | 0.8 | 0.64 | 4 | 0.76 | 9.4° | 40 | 4 | 2 | s | 1 | 4.2 | 4.3 | 4.6 | 5.0 |
| VF2XLBSR0040N060 | 0.4 | 0.8 | 0.64 | 6 | 0.76 | 7.8° | 40 | 4 | 2 | s | 1 | 6.3 | 6.5 | 6.9 | 7.5 |
| VF2XLBSR0050N030 | 0.5 | 1 | 0.8 | 3 | 0.94 | 10.1° | 40 | 4 | 2 | s | 1 | 3.2 | 3.3 | 3.6 | 3.9 |
| VF2XLBSR0050N040 | 0.5 | 1 | 0.8 | 4 | 0.94 | 9.1° | 40 | 4 | 2 | s | 1 | 4.2 | 4.4 | 4.8 | 5.2 |
| VF2XLBSR0050N060 | 0.5 | 1 | 0.8 | 6 | 0.94 | 7.5° | 40 | 4 | 2 | s | 1 | 6.3 | 6.6 | 7.1 | 7.7 |
| VF2XLBSR0050N080 | 0.5 | 1 | 0.8 | 8 | 0.94 | 6.4° | 40 | 4 | 2 | s | 1 | 8.4 | 8.8 | 9.4 | 10.2 |
| VF2XLBSR0100N060 | 1 | 2 | 1.6 | 6 | 1.9 | 6.4° | 40 | 4 | 2 | s | 1 | 6.2 | 6.5 | 6.9 | 7.4 |
| VF2XLBSR0100N080 | 1 | 2 | 1.6 | 8 | 1.9 | 5.3° | 40 | 4 | 2 | s | 1 | 8.3 | 8.7 | 9.2 | 9.9 |
| VF2XLBSR0100N100 | 1 | 2 | 1.6 | 10 | 1.9 | 4.5° | 40 | 4 | 2 | s | 1 | 10.4 | 10.8 | 11.5 | 12.4 |
