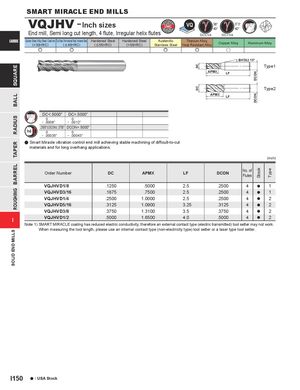

VQJHV - Inch sizes
38° 37.5°
End mill, Semi long cut length, 4 flute, Irregular helix flutes 40° 40°
DC 1/4 DC>1/4
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
e e e e u
BHTA2 15° Type1 APMX LF
Type2 APMX LF
| DC<.5000" | DC=.5000" |
| 0 | 0 |
| - .0008" | - .0012" |
| .2500"<DCON<.3750" DCON=.5000" | |
| 0 | 0 |
| - .00035" | - .00043" |
a Smart Miracle vibration control end mill achieving stable machining of difficult-to-cut materials and for long overhang applications.
| (inch) | |||||||
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VQJHVD1/8 | .1250 | .5000 | 2.5 | .2500 | 4 | a | 1 |
| VQJHVD3/16 | .1875 | .7500 | 2.5 | .2500 | 4 | a | 1 |
| VQJHVD1/4 | .2500 | 1.0000 | 2.5 | .2500 | 4 | a | 2 |
| VQJHVD5/16 | .3125 | 1.0900 | 3.25 | .3125 | 4 | a | 2 |
| VQJHVD3/8 | .3750 | 1.3100 | 3.5 | .3750 | 4 | a | 2 |
| VQJHVD1/2 | .5000 | 1.6500 | 4.0 | .5000 | 4 | a | 2 |
Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter.
