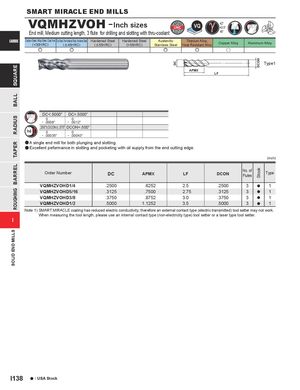

VQMHZVOH - Inch sizes
End mill, Medium cutting length, 3 flute for drilling and slotting with thru-coolant 45°
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
e e e e u
Type1 APMX LF
| DC<.5000" | DC=.5000" |
| 0 | 0 |
| - .0008" | - .0012" |
| .250"<DCON<.375" DCON=.500" | |
| 0 | 0 |
| - .00035" | - .00043" |
a A single end mill for both plunging and slotting. a Excellent peformance in slotting and pocketing with oil supply from the end cutting edge. (inch)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VQMHZVOHD1/4 | .2500 | .6252 | 2.5 | .2500 | 3 | a | 1 |
| VQMHZVOHD5/16 | .3125 | .7500 | 2.75 | .3125 | 3 | a | 1 |
| VQMHZVOHD3/8 | .3750 | .8752 | 3.0 | .3750 | 3 | a | 1 |
| VQMHZVOHD1/2 | .5000 | 1.1252 | 3.5 | .5000 | 3 | a | 1 |
Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter.
