CARBIDE

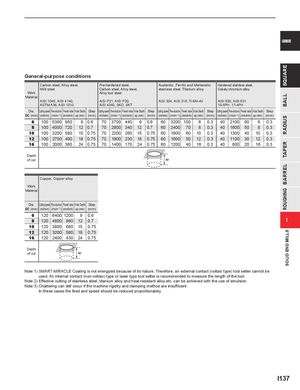

General-purpose conditions
| Work Material | Carbo Mild st AISI 1 ASTM | n steel, A eel 045, AIS A36, AIS | lloy ste I 4140, I 1010 | el, | Pre-har Carbon Alloy to AISI P2 AISI 43 | dened s steel, A ol steel 1, AISI 40, SKD | teel, lloy stee P20, , SKT | l, | Austen stainle AISI 30 | itic, Ferr ss steel, 4, AISI | itic and Titanium 316, Ti-6 | Marten alloy Al-4V | sitic | Hardene Cobaly c AISI 63 15-5PH | d stainle hromium 0, AISI 6 , 17-4P | ss steel alloy 31 H | , | |||
| Dia. | Cutting speed | Revolution | Feed rate | Hole Depth | Step | Cutting speed | Revolution | Feed rate H | ole Depth | Step | Cutting speed | Revolution | Feed rate H | ole Depth | Step | Cutting speed | Revolution F | eed rate | Hole Depth | Step |
| DC(mm) | (m/min) | (min-1) | (mm/min) | ap (mm) | (mm) | (m/min) | (min-1) ( | mm/min) a | p (mm) | (mm) | (m/min) | (min-1) ( | mm/min) | ap (mm) | (mm) | (m/min) | (min-1) ( | mm/min) | ap (mm) | (mm) |
| 6 | 100 | 5300 | 950 | 9 | 0.6 | 70 | 3700 | 440 | 9 | 0.6 | 60 | 3200 | 100 | 6 | 0.3 | 40 | 2100 | 60 | 6 | 0.3 |
| 8 | 100 | 4000 | 720 | 12 | 0.7 | 70 | 2800 | 340 | 12 | 0.7 | 60 | 2400 | 70 | 8 | 0.3 | 40 | 1600 | 50 | 8 | 0.3 |
| 10 | 100 | 3200 | 580 | 15 | 0.75 | 70 | 2200 | 260 | 15 | 0.75 | 60 | 1900 | 60 | 10 | 0.3 | 40 | 1300 | 40 | 10 | 0.3 |
| 12 | 100 | 2700 | 490 | 18 | 0.75 | 70 | 1900 | 230 | 18 | 0.75 | 60 | 1600 | 50 | 12 | 0.3 | 40 | 1100 | 30 | 12 | 0.3 |
| 16 | 100 | 2000 | 360 | 24 | 0.75 | 70 | 1400 | 170 | 24 | 0.75 | 60 | 1200 | 40 | 16 | 0.3 | 40 | 800 | 20 | 16 | 0.3 |
| Depth of cut | ap | |||||||||||||||||||
| Work Material | Coppe | r, Coppe | r alloy | |||||||||||||||||
| Dia. DC(mm) | Cutting speed (m/min) | Revolution (min-1) | Feed rate (mm/min) | Hole Depth ap (mm) | Step (mm) | |||||||||||||||
| 6 | 120 | 6400 | 1200 | 9 | 0.6 | |||||||||||||||
| 8 | 120 | 4800 | 860 | 12 | 0.7 | |||||||||||||||
| 10 | 120 | 3800 | 680 | 15 | 0.75 | |||||||||||||||
| 12 | 120 | 3200 | 580 | 18 | 0.75 | |||||||||||||||
| 16 | 120 | 2400 | 430 | 24 | 0.75 | |||||||||||||||
| Depth | ||||||||||||||||||||
| of cut | ap |
Note 1) SMART MIRACLE Coating is not energized because of its nature. Therefore, an external contact (voltaic type) tool setter cannot be used. An internal contact (non-voltaic) type or laser type tool setter is recommended to measure the length of the tool. Note 2) Effective cutting of stainless steel, titanium alloy and heat-resistant alloy etc. can be achieved with the use of emulsion. Note 3) Chattering can still occur if the machine rigidity and clamping method are insufficient. In these cases the feed and speed should be reduced proportionately.
