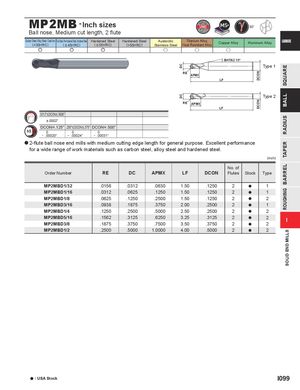

MP2MB - Inch sizes
Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy, CARBIDE
| (<30HRC) | ( | ( | 55HRC) | (> | Heat Resistant Alloy | Copper Alloy | Aluminum Alloy | |
| < 45HRC) | < | 55HRC) | Stainless Steel |
e e e u u u
BHTA2 15° Type 1 RE APMX
LF
Type 2 RE APMX LF .0312"<DCON<.5000" ±.0002" DCON=.125" .250" DCON .375" DCON=.500"
| 0 | 0 | 0 |
| - .00020" | - .00024" | - .00031" |
a 2-flute ball nose end mills with medium cutting edge length for general purpose. Excellent performance for a wide range of work materials such as carbon steel, alloy steel and hardened steel. (inch)
| Order Number | RE | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MP2MBD1/32 | .0156 | .0312 | .0630 | 1.50 | .1250 | 2 | a | 1 |
| MP2MBD1/16 | .0312 | .0625 | .1250 | 1.50 | .1250 | 2 | a | 1 |
| MP2MBD1/8 | .0625 | .1250 | .2500 | 1.50 | .1250 | 2 | a | 2 |
| MP2MBD3/16 | .0938 | .1875 | .3750 | 2.00 | .2500 | 2 | a | 1 |
| MP2MBD1/4 | .1250 | .2500 | .5000 | 2.50 | .2500 | 2 | a | 2 |
| MP2MBD5/16 | .1562 | .3125 | .6250 | 3.25 | .3125 | 2 | a | 2 |
| MP2MBD3/8 | .1875 | .3750 | .7500 | 3.50 | .3750 | 2 | a | 2 |
| MP2MBD1/2 | .2500 | .5000 | 1.0000 | 4.00 | .5000 | 2 | a | 2 |
