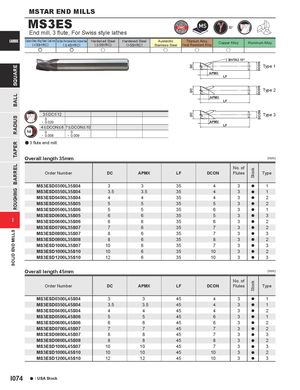

MS3ES
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
| (<30HRC) | ( | ( | 55HRC) | (> | Heat Resistant Alloy | Copper Alloy | Aluminum Alloy | |
| < 45HRC) | < | 55HRC) | Stainless Steel |
e e u u u u
BHTA2 15° Type 1 APMX LF
Type 2 APMX LF 3<DC< 12 Type 3 0 - 0.020 APMX
4 DCON 6 7 DCON 10 LF
0 0 - 0.008 - 0.009 a 3 flute end mill. Overall length 35mm (mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MS3ESD0300L35S04 | 3 | 3 | 35 | 4 | 3 | a | 1 |
| MS3ESD0350L35S04 | 3.5 | 3.5 | 35 | 4 | 3 | a | 1 |
| MS3ESD0400L35S04 | 4 | 4 | 35 | 4 | 3 | a | 2 |
| MS3ESD0500L35S05 | 5 | 5 | 35 | 5 | 3 | a | 2 |
| MS3ESD0500L35S06 | 5 | 5 | 35 | 6 | 3 | a | 1 |
| MS3ESD0600L35S05 | 6 | 6 | 35 | 5 | 3 | a | 3 |
| MS3ESD0600L35S06 | 6 | 6 | 35 | 6 | 3 | a | 2 |
| MS3ESD0700L35S07 | 7 | 6 | 35 | 7 | 3 | a | 2 |
| MS3ESD0800L35S07 | 8 | 6 | 35 | 7 | 3 | a | 3 |
| MS3ESD0800L35S08 | 8 | 6 | 35 | 8 | 3 | a | 2 |
| MS3ESD1000L35S07 | 10 | 6 | 35 | 7 | 3 | a | 3 |
| MS3ESD1000L35S10 | 10 | 6 | 35 | 10 | 3 | a | 2 |
| MS3ESD1200L35S10 | 12 | 6 | 35 | 10 | 3 | a | 3 |
Overall length 45mm (mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MS3ESD0300L45S04 | 3 | 3 | 45 | 4 | 3 | a | 1 |
| MS3ESD0350L45S04 | 3.5 | 3.5 | 45 | 4 | 3 | a | 1 |
| MS3ESD0400L45S04 | 4 | 4 | 45 | 4 | 3 | a | 2 |
| MS3ESD0500L45S06 | 5 | 5 | 45 | 6 | 3 | a | 1 |
| MS3ESD0600L45S06 | 6 | 6 | 45 | 6 | 3 | a | 2 |
| MS3ESD0700L45S07 | 7 | 7 | 45 | 7 | 3 | a | 2 |
| MS3ESD0800L45S07 | 8 | 8 | 45 | 7 | 3 | a | 3 |
| MS3ESD0800L45S08 | 8 | 8 | 45 | 8 | 3 | a | 2 |
| MS3ESD1000L45S07 | 10 | 10 | 45 | 7 | 3 | a | 3 |
| MS3ESD1000L45S10 | 10 | 10 | 45 | 10 | 3 | a | 2 |
| MS3ESD1200L45S10 | 12 | 12 | 45 | 10 | 3 | a | 3 |
