CARBIDE

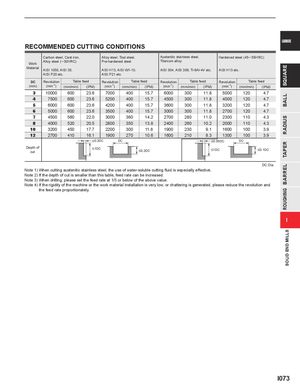

RECOMMENDED CUTTING CONDITIONS
| Work | Carbon ste Alloy steel ( | el, Cast iron, ─30HRC) | Alloy steel, Pre-harden | Tool steel, ed steel | Austenitic s Titanium all | tainless steel oy | , | Hardened | steel (45─55H | RC) | ||
| Material | AISI 1050, AISI P20 et | AISI 35, c. | AISI H13, A AISI P21 et | ISI W1-10, c. | AISI 304, AI | SI 306, Ti-6A | l-4V etc. | AISI H13 e | tc. | |||
| DC | Revolution | Table | feed | Revolution | Tab | le feed | Revolution | Table | feed | Revolution | Table | feed |
| (mm) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) |
| 3 | 10000 | 600 | 23.6 | 7000 | 400 | 15.7 | 6000 | 300 | 11.8 | 5000 | 120 | 4.7 |
| 4 | 7500 | 600 | 23.6 | 5200 | 400 | 15.7 | 4500 | 300 | 11.8 | 4000 | 120 | 4.7 |
| 5 | 6000 | 600 | 23.6 | 4200 | 400 | 15.7 | 3600 | 300 | 11.8 | 3200 | 120 | 4.7 |
| 6 | 5000 | 600 | 23.6 | 3500 | 400 | 15.7 | 3000 | 300 | 11.8 | 2700 | 120 | 4.7 |
| 7 | 4500 | 560 | 22.0 | 3000 | 360 | 14.2 | 2700 | 280 | 11.0 | 2300 | 110 | 4.3 |
| 8 | 4000 | 520 | 20.5 | 2800 | 350 | 13.8 | 2400 | 260 | 10.2 | 2000 | 110 | 4.3 |
| 10 | 3200 | 450 | 17.7 | 2200 | 300 | 11.8 | 1900 | 230 | 9.1 | 1600 | 100 | 3.9 |
| 12 | 2700 | 410 | 16.1 | 1900 | 270 | 10.6 | 1600 | 210 | 8.3 | 1300 | 100 | 3.9 |
| D C | C | 05DC | DC | |||||||||
| Depth of cut | DC |
DC:Dia. Note 1) When cutting austenitic stainless steel, the use of water-soluble cutting fluid is especially effective. Note 2) If the depth of cut is smaller than this table, feed rate can be increased. Note 3) When drilling, please set the feed rate at 1/3 or below of the above value. Note 4) If the rigidity of the machine or the work material installation is very low, or chattering is generated, please reduce the revolution and the feed rate proportionately.
