CARBIDE

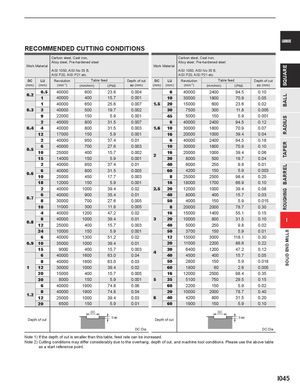

RECOMMENDED CUTTING CONDITIONS

Work	Material	Carbon steel, C Alloy steel, Pre AISI 1050, AISI AISI P20, AISI	ast iron, -hardened steel No 35 B, P21 etc.			Work Material	Carbon steel, C Alloy steel, Pre AISI 1050, AISI AISI P20, AISI	ast iron, -hardened steel No 35 B, P21 etc.
DC	LU	Revolution	Table	feed	Depth of cut	DC LU	Revolution	Table	feed	Depth of cut
(mm)	(mm)	(min-1)	(mm/min)	(IPM)	ap (mm)	(mm) (mm)	(min-1)	(mm/min)	(IPM)	ap (mm)
	0.5	40000	600	23.6	0.004	6	40000	2400	94.5	0.10
0.2	1	40000	400	15.7	0.001	10	30000	1800	70.9	0.05
	1	40000	650	25.6	0.007	1.5 20	15000	600	23.6	0.02
0.3	3	40000	500	19.7	0.002	30	7500	300	11.8	0.005
	9	22000	150	5.9	0.001	45	5000	150	5.9	0.001
	2	40000	800	31.5	0.007	6	40000	2400	94.5	0.12
0.4	4	40000	800	31.5	0.003	1.6 10	30000	1800	70.9	0.07
	12	17000	150	5.9	0.001	16	20000	1000	39.4	0.04
	2	40000	950	37.4	0.01	6	40000	2400	94.5	0.18
	6	40000	700	27.6	0.003	10	30000	1800	70.9	0.10
0.5	10	25000	400	15.7	0.002	16	20000	1000	39.4	0.06
	15	14000	150	5.9	0.001	2 30	8000	500	19.7	0.04
	2	40000	950	37.4	0.01	40	6000	250	9.8	0.01
06	6	40000	800	31.5	0.005	60	4200	150	5.9	0.003
.	10	25000	450	17.7	0.003	8	25000	2500	98.4	0.20
	18	12000	150	5.9	0.001	16	18000	1700	66.9	0.10
	2	40000	1000	39.4	0.02	2.5 20	12000	1000	39.4	0.08
07	6	40000	900	35.4	0.01	40	8000	400	15.7	0.03
.	8	30000	700	27.6	0.005	50	4000	150	5.9	0.015
	10	11000	300	11.8	0.005	8	20000	2000	78.7	0.30
	4	40000	1200	47.2	0.02	16	15000	1400	55.1	0.15
08	8	40000	1000	39.4	0.01	3 20	10000	800	31.5	0.10
.	12	25000	400	15.7	0.003	40	5000	250	9.8	0.02
	24	10000	150	5.9	0.001	50	3700	150	5.9	0.01
	6	40000	1300	51.2	0.02	12	15000	3000	118.1	0.30
0.9	10	35000	1000	39.4	0.01	20	11000	2200	86.6	0.22
	15	9000	400	15.7	0.003	30	6400	1200	47.2	0.12
	6	40000	1600	63.0	0.04	4 40	4500	400	15.7	0.05
	8	40000	1600	63.0	0.03	50	2800	150	5.9	0.018
1	12	30000	1000	39.4	0.02	60	1800	60	2.6	0.005
	20	15000	400	15.7	0.005	16	12000	2500	98.4	0.35
	30	8000	150	5.9	0.001	5 35	5100	750	29.5	0.15
	6	40000	1900	74.8	0.06	60	2200	150	5.9	0.02
	8	40000	1900	74.8	0.04	20	10000	2000	78.7	0.40
1.2	12	25000	1000	39.4	0.03	6 40	4200	800	31.5	0.20
	20	6500	150	5.9	0.01	60	1900	150	5.9	0.10
			DC					DC
Dept	h of cut				DC:Dia.	Depth of cut				DC:Dia.

Note 1) If the depth of cut is smaller than this table, feed rate can be increased. Note 2) Cutting conditions may differ considerably due to the overhang, depth of cut, and machine tool conditions. Please use the above table as a start reference point.
