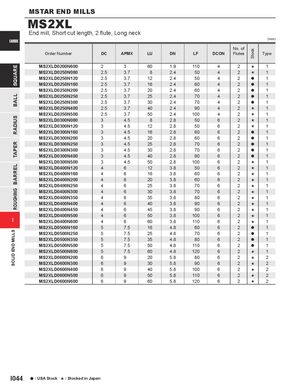

Общий каталог Mitsubishi 2020 - 2021 - страница 803
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
CARBIDE (mm)
| Order Number | DC | APMX | LU | DN | LF | DCON | No. of Flutes | Stock | Type |
| MS2XLD0200N600 | 2 | 3 | 60 | 1.9 | 110 | 4 | 2 | s | 1 |
| MS2XLD0250N080 | 2.5 | 3.7 | 8 | 2.4 | 50 | 4 | 2 | s | 1 |
| MS2XLD0250N120 | 2.5 | 3.7 | 12 | 2.4 | 50 | 4 | 2 | a | 1 |
| MS2XLD0250N160 | 2.5 | 3.7 | 16 | 2.4 | 60 | 4 | 2 | a | 1 |
| MS2XLD0250N200 | 2.5 | 3.7 | 20 | 2.4 | 60 | 4 | 2 | a | 1 |
| MS2XLD0250N250 | 2.5 | 3.7 | 25 | 2.4 | 70 | 4 | 2 | a | 1 |
| MS2XLD0250N300 | 2.5 | 3.7 | 30 | 2.4 | 70 | 4 | 2 | a | 1 |
| MS2XLD0250N400 | 2.5 | 3.7 | 40 | 2.4 | 90 | 4 | 2 | s | 1 |
| MS2XLD0250N500 | 2.5 | 3.7 | 50 | 2.4 | 100 | 4 | 2 | s | 1 |
| MS2XLD0300N080 | 3 | 4.5 | 8 | 2.8 | 50 | 6 | 2 | s | 1 |
| MS2XLD0300N120 | 3 | 4.5 | 12 | 2.8 | 50 | 6 | 2 | s | 1 |
| MS2XLD0300N160 | 3 | 4.5 | 16 | 2.8 | 60 | 6 | 2 | a | 1 |
| MS2XLD0300N200 | 3 | 4.5 | 20 | 2.8 | 60 | 6 | 2 | a | 1 |
| MS2XLD0300N250 | 3 | 4.5 | 25 | 2.8 | 70 | 6 | 2 | a | 1 |
| MS2XLD0300N300 | 3 | 4.5 | 30 | 2.8 | 70 | 6 | 2 | a | 1 |
| MS2XLD0300N400 | 3 | 4.5 | 40 | 2.8 | 90 | 6 | 2 | a | 1 |
| MS2XLD0300N500 | 3 | 4.5 | 50 | 2.8 | 100 | 6 | 2 | s | 1 |
| MS2XLD0400N120 | 4 | 6 | 12 | 3.8 | 50 | 6 | 2 | s | 1 |
| MS2XLD0400N160 | 4 | 6 | 16 | 3.8 | 60 | 6 | 2 | s | 1 |
| MS2XLD0400N200 | 4 | 6 | 20 | 3.8 | 60 | 6 | 2 | s | 1 |
| MS2XLD0400N250 | 4 | 6 | 25 | 3.8 | 70 | 6 | 2 | s | 1 |
| MS2XLD0400N300 | 4 | 6 | 30 | 3.8 | 70 | 6 | 2 | s | 1 |
| MS2XLD0400N350 | 4 | 6 | 35 | 3.8 | 80 | 6 | 2 | s | 1 |
| MS2XLD0400N400 | 4 | 6 | 40 | 3.8 | 90 | 6 | 2 | s | 1 |
| MS2XLD0400N450 | 4 | 6 | 45 | 3.8 | 90 | 6 | 2 | s | 1 |
| MS2XLD0400N500 | 4 | 6 | 50 | 3.8 | 100 | 6 | 2 | s | 1 |
| MS2XLD0400N600 | 4 | 6 | 60 | 3.8 | 110 | 6 | 2 | s | 1 |
| MS2XLD0500N160 | 5 | 7.5 | 16 | 4.8 | 60 | 6 | 2 | a | 1 |
| MS2XLD0500N250 | 5 | 7.5 | 25 | 4.8 | 70 | 6 | 2 | a | 1 |
| MS2XLD0500N350 | 5 | 7.5 | 35 | 4.8 | 80 | 6 | 2 | a | 1 |
| MS2XLD0500N500 | 5 | 7.5 | 50 | 4.8 | 110 | 6 | 2 | a | 1 |
| MS2XLD0500N600 | 5 | 7.5 | 60 | 4.8 | 120 | 6 | 2 | s | 1 |
| MS2XLD0600N200 | 6 | 9 | 20 | 5.8 | 80 | 6 | 2 | s | 2 |
| MS2XLD0600N300 | 6 | 9 | 30 | 5.8 | 90 | 6 | 2 | s | 2 |
| MS2XLD0600N400 | 6 | 9 | 40 | 5.8 | 100 | 6 | 2 | s | 2 |
| MS2XLD0600N500 | 6 | 9 | 50 | 5.8 | 110 | 6 | 2 | s | 2 |
| MS2XLD0600N600 | 6 | 9 | 60 | 5.8 | 120 | 6 | 2 | s | 2 |
