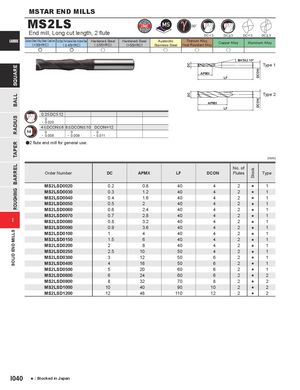

MS2LS
End mill, Long cut length, 2 flute
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel
| (<30HRC) | ( | ( | 55HRC) |
| < 45HRC) | < |
e e u
0.2<DC<12 0 - 0.020
| 4 | DCON | 6 8 | DCON | 10 DCON=12 | |
| 0 | 0 | 0 | |||
| - 0.008 | - 0.009 | - 0.011 |
a2 flute end mill for general use.
Hardened Steel 55HRC)
Austenitic Stainless Steel u
| DC˂3 | DC≥3 | DC ˂3 | DC≥ 3 | |
| Titanium Alloy, |
Heat Resistant Alloy Copper Alloy Aluminum Alloy
u u BHTA2 15° Type 1 APMX
LF
Type 2 APMX LF
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MS2LSD0020 | 0.2 | 0.8 | 40 | 4 | 2 | s | 1 |
| MS2LSD0030 | 0.3 | 1.2 | 40 | 4 | 2 | s | 1 |
| MS2LSD0040 | 0.4 | 1.6 | 40 | 4 | 2 | s | 1 |
| MS2LSD0050 | 0.5 | 2 | 40 | 4 | 2 | s | 1 |
| MS2LSD0060 | 0.6 | 2.4 | 40 | 4 | 2 | s | 1 |
| MS2LSD0070 | 0.7 | 2.8 | 40 | 4 | 2 | s | 1 |
| MS2LSD0080 | 0.8 | 3.2 | 40 | 4 | 2 | s | 1 |
| MS2LSD0090 | 0.9 | 3.6 | 40 | 4 | 2 | s | 1 |
| MS2LSD0100 | 1 | 4 | 40 | 4 | 2 | s | 1 |
| MS2LSD0150 | 1.5 | 6 | 40 | 4 | 2 | s | 1 |
| MS2LSD0200 | 2 | 8 | 40 | 4 | 2 | s | 1 |
| MS2LSD0250 | 2.5 | 10 | 50 | 4 | 2 | s | 1 |
| MS2LSD0300 | 3 | 12 | 50 | 6 | 2 | s | 1 |
| MS2LSD0400 | 4 | 16 | 50 | 6 | 2 | s | 1 |
| MS2LSD0500 | 5 | 20 | 60 | 6 | 2 | s | 1 |
| MS2LSD0600 | 6 | 24 | 60 | 6 | 2 | s | 2 |
| MS2LSD0800 | 8 | 32 | 70 | 8 | 2 | s | 2 |
| MS2LSD1000 | 10 | 40 | 90 | 10 | 2 | s | 2 |
| MS2LSD1200 | 12 | 48 | 110 | 12 | 2 | s | 2 |
