CARBIDE

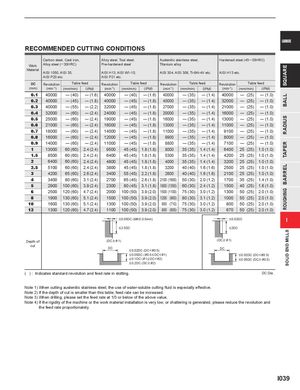

RECOMMENDED CUTTING CONDITIONS
| Work Material | Carbon ste Alloy steel ( AISI 1050, AISI P20 et | el, Cast iron, ─30HRC) AISI 35, c. | Alloy steel, Pre-harden AISI H13, A AISI P21 et | Tool steel, ed steel ISI W1-10, c. | Austenitic st Titanium allo AISI 304, AI | ainless steel y SI 306, Ti-6A | , l-4V etc. | Hardened s AISI H13 et | teel (45─55 c. | HRC) | ||
| DC | Revolution | Table | feed | Revolution | Table | feed | Revolution | Table | feed | Revolution | Table | feed |
| (mm) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) |
| 0.1 | 40000 | ― (40) | ― (1.6) | 40000 | ― (40) | ― (1.6) | 40000 | ― (35) | ― (1.4) | 40000 | ― (25) | ― (1.0) |
| 0.2 | 40000 | ― (45) | ― (1.8) | 40000 | ― (45) | ― (1.8) | 40000 | ― (35) | ― (1.4) | 32000 | ― (25) | ― (1.0) |
| 0.3 | 40000 | ― (55) | ― (2.2) | 32000 | ― (45) | ― (1.8) | 27000 | ― (35) | ― (1.4) | 21000 | ― (25) | ― (1.0) |
| 0.4 | 32000 | ― (60) | ― (2.4) | 24000 | ― (45) | ― (1.8) | 20000 | ― (35) | ― (1.4) | 16000 | ― (25) | ― (1.0) |
| 0.5 | 25000 | ― (60) | ― (2.4) | 19000 | ― (45) | ― (1.8) | 16000 | ― (35) | ― (1.4) | 13000 | ― (25) | ― (1.0) |
| 0.6 | 21000 | ― (60) | ― (2.4) | 16000 | ― (45) | ― (1.8) | 13000 | ― (35) | ― (1.4) | 11000 | ― (25) | ― (1.0) |
| 0.7 | 18000 | ― (60) | ― (2.4) | 14000 | ― (45) | ― (1.8) | 11000 | ― (35) | ― (1.4) | 9100 | ― (25) | ― (1.0) |
| 0.8 | 16000 | ― (60) | ― (2.4) | 12000 | ― (45) | ― (1.8) | 9900 | ― (35) | ― (1.4) | 8000 | ― (25) | ― (1.0) |
| 0.9 | 14000 | ― (60) | ― (2.4) | 11000 | ― (45) | ― (1.8) | 8800 | ― (35) | ― (1.4) | 7100 | ― (25) | ― (1.0) |
| 1 | 13000 | 60 (60) | 2.4 (2.4) | 9500 | 45 (45) | 1.8 (1.8) | 8000 | 35 (35) | 1.4 (1.4) | 6400 | 25 (25) | 1.0 (1.0) |
| 1.5 | 8500 | 60 (60) | 2.4 (2.4) | 6400 | 45 (45) | 1.8 (1.8) | 5300 | 35 (35) | 1.4 (1.4) | 4200 | 25 (25) | 1.0 (1.0) |
| 2 | 6400 | 60 (60) | 2.4 (2.4) | 4800 | 45 (45) | 1.8 (1.8) | 4000 | 35 (35) | 1.4 (1.4) | 3200 | 25 (25) | 1.0 (1.0) |
| 2.5 | 5100 | 60 (60) | 2.4 (2.4) | 3800 | 45 (45) | 1.8 (1.8) | 3200 | 40 (40) | 1.6 (1.6) | 2500 | 25 (25) | 1.0 (1.0) |
| 3 | 4200 | 65 (60) | 2.6 (2.4) | 3400 | 55 (45) | 2.2 (1.8) | 2600 | 40 (40) | 1.6 (1.6) | 2100 | 25 (25) | 1.0 (1.0) |
| 4 | 3400 | 80 (60) | 3.1 (2.4) | 2700 | 65 (45) | 2.6 (1.8) | 2100 (1600) | 50 (30) | 2.0 (1.2) | 1700 | 35 (25) | 1.4 (1.0) |
| 5 | 2900 | 100 (60) | 3.9 (2.4) | 2300 | 80 (45) | 3.1 (1.8) | 1800 (1350) | 60 (30) | 2.4 (1.2) | 1500 | 40 (25) | 1.6 (1.0) |
| 6 | 2500 | 120 (60) | 4.7 (2.4) | 2000 | 100 (50) | 3.9 (2.0) | 1500 (1100) | 75 (30) | 3.0 (1.2) | 1300 | 50 (25) | 2.0 (1.0) |
| 8 | 1900 | 130 (60) | 5.1 (2.4) | 1500 | 100 (50) | 3.9 (2.0) | 1200 (900) | 80 (30) | 3.1 (1.2) | 1000 | 50 (25) | 2.0 (1.0) |
| 10 | 1600 | 130 (60) | 5.1 (2.4) | 1300 | 100 (50) | 3.9 (2.0) | 950 (710) | 75 (30) | 3.0 (1.2) | 800 | 50 (25) | 2.0 (1.0) |
| 12 | 1300 | 120(60) | 4.7 (2.4) | 1100 | 100 (50) | 3.9 (2.0) | 800 (600) | 75 (30) | 3.0(1.2) | 670 | 50 (25) | 2.0(1.0) |
| X.0.5mm) | DC | |||||||||||
| Depth of cut | DC (DC>&1 | ) | C (DC˂&0.5 | ) | ( | DC>&1) DC | ||||||
| C (&0.5 C (&1 C (DC>&2) | ˂&1) 2) | C˂&0.5) C>&0.5) |
( ) : Indicates standard revolution and feed rate in slotting. DC:Dia. Note 1) When cutting austenitic stainless steel, the use of water-soluble cutting fluid is especially effective. Note 2) If the depth of cut is smaller than this table, feed rate can be increased. Note 3) When drilling, please set the feed rate at 1/3 or below of the above value. Note 4) If the rigidity of the machine or the work material installation is very low, or chattering is generated, please reduce the revolution and the feed rate proportionately.
