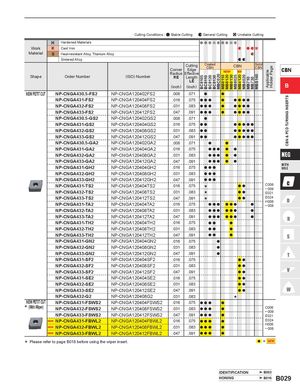

Общий каталог Mitsubishi 2020 - 2021 - страница 266

Cutting Conditions : Stable Cutting General Cutting Unstable Cutting
H Hardened Materials
Work K Cast Iron
Material S Heat-resistant Alloy, Titanium Alloy
Sintered Alloy
Cutting Coated Solid
CBN CBN CBN


Holder Page
Corner Edge CBN


Applicable
Radius Effective
(ISO) Number


MBC020
Shape Order Number


MBS140
RE


MB8120
MB8130
MB8025
MB4120
MB4020
Length


MB8110
BC8105
BC8120
BC8130
BC8110


MB710
MB730
LE
(inch) (inch) B
NEW PETIT CUT NP-CNGA430.5-FS2 NP-CNGA120402FS2 .008 .071 a a


CBN & PCD TURNING INSERTS
NP-CNGA431-FS2 NP-CNGA120404FS2 .016 .075 a a a a a a a a
NP-CNGA432-FS2 NP-CNGA120408FS2 .031 .083 a a a a a a a a
NP-CNGA433-FS2 NP-CNGA120412FS2 .047 .091 a a a a a a a a
NP-CNGA430.5-GS2 NP-CNGA120402GS2 .008 .071 a
NP-CNGA431-GS2 NP-CNGA120404GS2 .016 .075 a a a a a aa
NP-CNGA432-GS2 NP-CNGA120408GS2 .031 .083 a a a a a aa
NP-CNGA433-GS2 NP-CNGA120412GS2 .047 .091 a a a a a aa
NP-CNGA430.5-GA2 NP-CNGA120402GA2 .008 .071 a a
NP-CNGA431-GA2 NP-CNGA120404GA2 .016 .075 a a a a a
NP-CNGA432-GA2 NP-CNGA120408GA2 .031 .083 a a a a a NEG
NP-CNGA433-GA2 NP-CNGA120412GA2 .047 .091 a a a a a
WITH
NP-CNGA431-GH2 NP-CNGA120404GH2 .016 .075 a a a HOLE
NP-CNGA432-GH2 NP-CNGA120408GH2 .031 .083 a a a
NP-CNGA433-GH2 NP-CNGA120412GH2 .047 .091 a a a
NP-CNGA431-TS2 NP-CNGA120404TS2 .016 .075 s a a C006
─ 009
NP-CNGA432-TS2 NP-CNGA120408TS2 .031 .083 s a a E021
NP-CNGA433-TS2 NP-CNGA120412TS2 .047 .091 s a a E024
H006
NP-CNGA431-TA2 NP-CNGA120404TA2 .016 .075 a a a a a a a ─008
NP-CNGA432-TA2 NP-CNGA120408TA2 .031 .083 a a a a a a a
NP-CNGA433-TA2 NP-CNGA120412TA2 .047 .091 a a a a a a a
NP-CNGA431-TH2 NP-CNGA120404TH2 .016 .075 a a a
NP-CNGA432-TH2 NP-CNGA120408TH2 .031 .083 a a a
NP-CNGA433-TH2 NP-CNGA120412TH2 .047 .091 a a a
NP-CNGA431-GN2 NP-CNGA120404GN2 .016 .075 a
NP-CNGA432-GN2 NP-CNGA120408GN2 .031 .083 a
NP-CNGA433-GN2 NP-CNGA120412GN2 .047 .091 a
NP-CNGA431-SF2 NP-CNGA120404SF2 .016 .075 a a
NP-CNGA432-SF2 NP-CNGA120408SF2 .031 .083 a a
NP-CNGA433-SF2 NP-CNGA120412SF2 .047 .091 a a
NP-CNGA431-SE2 NP-CNGA120404SE2 .016 .075 a a
NP-CNGA432-SE2 NP-CNGA120408SE2 .031 .083 a a
NP-CNGA433-SE2 NP-CNGA120412SE2 .047 .091 a a
NP-CNGA432-G2 NP-CNGA120408G2 .031 .083 s
NEW PETIT CUT NP-CNGA431-FSWS2 NP-CNGA120404FSWS2 .016 .075 a a a a
* (With Wiper) NP-CNGA432-FSWS2 NP-CNGA120408FSWS2 .031 .083 a a a a C006
─ 009
NP-CNGA433-FSWS2 NP-CNGA120412FSWS2 .047 .091 a a a a E021
NP-CNGA431-FBWL2 NP-CNGA120404FBWL2 .016 .075 a a a a E024
H006
NP-CNGA432-FBWL2 NP-CNGA120408FBWL2 .031 .083 a a a a ─008
NP-CNGA433-FBWL2 NP-CNGA120412FBWL2 .047 .091 a a a a

* Please refer to page B018 before using the wiper insert. a =


IDENTIFICATION B002
HONING B016 B029
