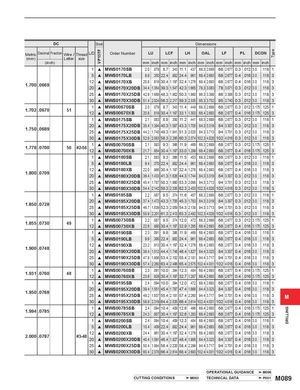

DC Stock Dimensions Type VP15TF Metric Decimal Fraction Wire / Thread L/D Order Number LU LCF LH OAL LF PL DCON (mm) Letter size (inch) mm inch mm inch mm inch mm inch mm inch mm inch mm inch 1 [ MWS0170SB 2.0 .079 8.7 .343 11.1 .437 68.3 2.689 68 2.677 0.3 .012 3.0 .118 1 5 [ MWS0170LB 8.9 .350 22.4 .882 24.4 .961 68.4 2.693 68 2.677 0.4 .016 3.0 .118 3 12 [ MWS0170XB 20.8 .819 30.4 1.197 32.4 1.276 68.4 2.693 68 2.677 0.4 .016 3.0 .118 3 1.700 .0669 20 [ MWS0170X20DB 34.4 1.354 39.3 1.547 42.3 1.665 78.3 3.083 78 3.071 0.3 .012 3.0 .118 3 25 [ MWS0170X25DB 42.9 1.689 48.3 1.902 50.3 1.980 86.3 3.398 86 3.386 0.3 .012 3.0 .118 3 30 [ MWS0170X30DB 51.4 2.024 56.3 2.217 59.3 2.335 95.3 3.752 95 3.740 0.3 .012 3.0 .118 3 1 [ MWS00670SB 2.0 .079 8.7 .343 11.4 .449 68.3 2.689 68 2.677 0.3 .012 3.175 .125 1 1.702 .0670 51 12 [ MWS00670XB 20.8 .819 30.4 1.197 33.1 1.303 68.4 2.693 68 2.677 0.4 .016 3.175 .125 3 1 [ MWS0175SB 2.1 .083 8.9 .350 11.2 .441 68.3 2.689 68 2.677 0.3 .012 3.0 .118 1 20 [ MWS0175X20DB 35.4 1.394 40.3 1.587 43.3 1.705 84.3 3.319 84 3.307 0.3 .012 3.0 .118 3 1.750 .0689 25 [ MWS0175X25DB 44.2 1.740 49.3 1.941 51.3 2.020 94.3 3.713 94 3.701 0.3 .012 3.0 .118 3 30 [ MWS0175X30DB 52.9 2.083 58.3 2.295 60.3 2.374 102.3 4.028 102 4.016 0.3 .012 3.0 .118 3 1 [ MWS00700SB 2.1 .083 9.3 .366 11.9 .469 68.3 2.689 68 2.677 0.3 .012 3.175 .125 1 1.778 .0700 50 #2-56 12 [ MWS00700XB 21.7 .854 30.4 1.197 33.0 1.299 68.4 2.693 68 2.677 0.4 .016 3.175 .125 3 1 [ MWS0180SB 2.1 .083 9.3 .366 11.5 .453 68.3 2.689 68 2.677 0.3 .012 3.0 .118 1 5 [ MWS0180LB 9.4 .370 22.4 .882 24.4 .961 68.4 2.693 68 2.677 0.4 .016 3.0 .118 3 12 [ MWS0180XB 22.0 .866 30.4 1.197 32.4 1.276 68.4 2.693 68 2.677 0.4 .016 3.0 .118 3 1.800 .0709 20 [ MWS0180X20DB 36.4 1.433 41.3 1.626 44.3 1.744 84.3 3.319 84 3.307 0.3 .012 3.0 .118 3 25 [ MWS0180X25DB 45.4 1.787 50.3 1.980 53.3 2.098 94.3 3.713 94 3.701 0.3 .012 3.0 .118 3 30 [ MWS0180X30DB 54.4 2.142 59.3 2.335 62.3 2.453 102.3 4.028 102 4.016 0.3 .012 3.0 .118 3 1 [ MWS0185SB 2.2 .087 9.5 .374 11.6 .457 68.3 2.689 68 2.677 0.3 .012 3.0 .118 1 20 [ MWS0185X20DB 37.4 1.472 43.3 1.705 45.3 1.783 84.3 3.319 84 3.307 0.3 .012 3.0 .118 3 1.850 .0728 25 [ MWS0185X25DB 46.7 1.839 52.3 2.059 54.3 2.138 94.3 3.713 94 3.701 0.3 .012 3.0 .118 3 30 [ MWS0185X30DB 55.9 2.201 61.3 2.413 63.3 2.492 102.3 4.028 102 4.016 0.3 .012 3.0 .118 3 1 [ MWS00730SB 2.2 .087 9.5 .374 12.0 .472 68.3 2.689 68 2.677 0.3 .012 3.175 .125 1 1.855 .0730 49 12 [ MWS00730XB 22.6 .890 30.4 1.197 32.9 1.295 68.4 2.693 68 2.677 0.4 .016 3.175 .125 3 1 [ MWS0190SB 2.3 .091 9.8 .386 11.9 .469 68.4 2.693 68 2.677 0.4 .016 3.0 .118 1 5 [ MWS0190LB 9.9 .390 22.4 .882 24.4 .961 68.4 2.693 68 2.677 0.4 .016 3.0 .118 3 12 [ MWS0190XB 23.2 .913 30.4 1.197 32.4 1.276 68.4 2.693 68 2.677 0.4 .016 3.0 .118 3 1.900 .0748 20 [ MWS0190X20DB 38.4 1.512 44.4 1.748 46.4 1.827 84.4 3.323 84 3.307 0.4 .016 3.0 .118 3 25 [ MWS0190X25DB 47.9 1.886 53.4 2.102 55.4 2.181 94.4 3.717 94 3.701 0.4 .016 3.0 .118 3 30 [ MWS0190X30DB 57.4 2.260 63.4 2.496 65.4 2.575 102.4 4.031 102 4.016 0.4 .016 3.0 .118 3 1 [ MWS00760SB 2.3 .091 10.0 .394 12.3 .484 68.4 2.693 68 2.677 0.4 .016 3.175 .125 1 1.931 .0760 48 12 [ MWS00760XB 23.6 .929 30.4 1.197 32.7 1.287 68.4 2.693 68 2.677 0.4 .016 3.175 .125 3 1 [ MWS0195SB 2.4 .094 10.0 .394 12.0 .472 68.4 2.693 68 2.677 0.4 .016 3.0 .118 1 20 [ MWS0195X20DB 39.4 1.551 45.4 1.787 47.4 1.866 84.4 3.323 84 3.307 0.4 .016 3.0 .118 3 1.950 .0768 25 [ MWS0195X25DB 49.2 1.937 55.4 2.181 57.4 2.260 94.4 3.717 94 3.701 0.4 .016 3.0 .118 3 M 30 [ MWS0195X30DB 58.9 2.319 64.4 2.535 66.4 2.614 102.4 4.031 102 4.016 0.4 .016 3.0 .118 3 1 MWS00785SB 2.4 .094 10.4 .409 12.6 .496 68.4 2.693 68 2.677 0.4 .016 3.175 .125 1 DRILLING [ 1.994 .0785 12 [ MWS00785XB 24.3 .957 30.4 1.197 32.6 1.283 68.4 2.693 68 2.677 0.4 .016 3.175 .125 3 1 [ MWS0200SB 2.4 .094 10.4 .409 12.3 .484 68.4 2.693 68 2.677 0.4 .016 3.0 .118 1 5 [ MWS0200LB 10.4 .409 22.4 .882 24.4 .961 68.4 2.693 68 2.677 0.4 .016 3.0 .118 3 12 [ MWS0200XB 24.4 .961 30.4 1.197 32.4 1.276 68.4 2.693 68 2.677 0.4 .016 3.0 .118 3 2.000 .0787 #3-48 20 [ MWS0200X20DB 40.4 1.591 46.4 1.827 48.4 1.906 84.4 3.323 84 3.307 0.4 .016 3.0 .118 3 25 [ MWS0200X25DB 50.4 1.984 56.4 2.220 58.4 2.299 94.4 3.717 94 3.701 0.4 .016 3.0 .118 3 30 [ MWS0200X30DB 60.4 2.378 66.4 2.614 68.4 2.693 102.4 4.031 102 4.016 0.4 .016 3.0 .118 3 OPERATIONAL GUIDANCE M096 CUTTING CONDITIONS M093 TECHNICAL DATA P001 M089
