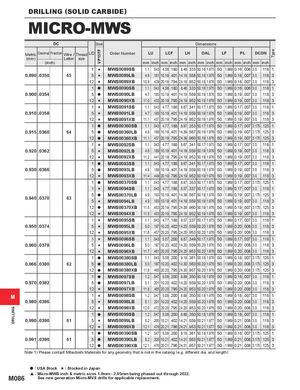

DRILLING VP15TF Type DRILLING (SOLID CARBIDE) MICRO-MWS DC Stock Dimensions Metric Decimal Fraction Wire / Thread L/D Order Number LU LCF LH OAL LF PL DCON (mm) Letter size (inch) mm inch mm inch mm inch mm inch mm inch mm inch mm inch 1 s MWS0089SB 1.1 .043 4.56 .180 8.46 .333 50.16 1.975 50 1.969 0.16 .006 3.0 .118 1 0.890 .0350 65 5 s MWS0089LB 4.6 .181 10.18 .401 14.18 .558 50.18 1.976 50 1.969 0.18 .007 3.0 .118 3 12 s MWS0089XB 10.9 .429 20.18 .794 24.18 .952 50.18 1.976 50 1.969 0.18 .007 3.0 .118 3 1 a MWS0090SB 1.1 .043 4.56 .180 8.46 .333 50.16 1.975 50 1.969 0.16 .006 3.0 .118 1 0.900 .0354 5 a MWS0090LB 4.7 .185 10.19 .401 14.19 .559 50.19 1.976 50 1.969 0.19 .007 3.0 .118 3 12 s MWS0090XB 11.0 .433 20.19 .795 24.19 .952 50.19 1.976 50 1.969 0.19 .007 3.0 .118 3 1 s MWS0091SB 1.1 .043 4.77 .188 8.67 .341 50.17 1.975 50 1.969 0.17 .007 3.0 .118 1 0.910 .0358 5 s MWS0091LB 4.7 .185 10.19 .401 14.19 .559 50.19 1.976 50 1.969 0.19 .007 3.0 .118 3 12 s MWS0091XB 11.1 .437 20.19 .795 24.19 .952 50.19 1.976 50 1.969 0.19 .007 3.0 .118 3 1 a MWS00360SB 1.1 .043 4.77 .188 8.97 .353 50.17 1.975 50 1.969 0.17 .007 3.175 .125 1 0.915 .0360 64 5 a MWS00360LB 4.8 .189 10.19 .401 14.39 .567 50.19 1.976 50 1.969 0.19 .007 3.175 .125 3 12 a MWS00360XB 11.1 .437 20.19 .795 24.39 .960 50.19 1.976 50 1.969 0.19 .007 3.175 .125 3 1 s MWS0092SB 1.1 .043 4.77 .188 8.67 .341 50.17 1.975 50 1.969 0.17 .007 3.0 .118 1 0.920 .0362 5 s MWS0092LB 4.8 .189 10.19 .401 14.19 .559 50.19 1.976 50 1.969 0.19 .007 3.0 .118 3 12 s MWS0092XB 11.2 .441 20.19 .795 24.19 .952 50.19 1.976 50 1.969 0.19 .007 3.0 .118 3 1 a MWS0093SB 1.1 .043 4.77 .188 8.67 .341 50.17 1.975 50 1.969 0.17 .007 3.0 .118 1 0.930 .0366 5 a MWS0093LB 4.8 .189 10.19 .401 14.19 .559 50.19 1.976 50 1.969 0.19 .007 3.0 .118 3 12 s MWS0093XB 11.4 .449 20.19 .795 24.19 .952 50.19 1.976 50 1.969 0.19 .007 3.0 .118 3 1 a MWS00370SB 1.1 .043 4.77 .188 8.97 .353 50.17 1.975 50 1.969 0.17 .007 3.175 .125 1 1 s MWS0094SB 1.1 .043 4.77 .188 8.57 .337 50.17 1.975 50 1.969 0.17 .007 3.0 .118 1 0.940 .0370 63 5 a MWS00370LB 4.9 .193 10.19 .401 14.39 .567 50.19 1.976 50 1.969 0.19 .007 3.175 .125 35sMWS0094LB4.9.193 10.19 .401 14.19 .559 50.19 1.976501.969 0.19 .007 3.0.1183 12 a MWS00370XB 11.5 .453 20.19 .795 24.39 .960 50.19 1.976 50 1.969 0.19 .007 3.175 .125 3 12 s MWS0094XB 11.5 .453 20.19 .795 24.19 .952 50.19 1.976 50 1.969 0.19 .007 3.0 .118 3 1 s MWS0095SB 1.1 .043 4.77 .188 8.57 .337 50.17 1.975 50 1.969 0.17 .007 3.0 .118 1 0.950 .0374 5 s MWS0095LB 5.0 .197 10.20 .402 14.20 .559 50.20 1.976 50 1.969 0.20 .008 3.0 .118 3 12 s MWS0095XB 11.6 .457 20.20 .795 24.20 .953 50.20 1.976 50 1.969 0.20 .008 3.0 .118 3 1 s MWS0096SB 1.1 .043 5.07 .200 8.87 .349 50.17 1.975 50 1.969 0.17 .007 3.0 .118 1 0.960 .0378 5 s MWS0096LB 5.0 .197 10.20 .402 14.20 .559 50.20 1.976 50 1.969 0.20 .008 3.0 .118 3 12 s MWS0096XB 11.7 .461 20.20 .795 24.20 .953 50.20 1.976 50 1.969 0.20 .008 3.0 .118 3 1 a MWS00380SB 1.1 .043 5.08 .200 9.18 .361 50.18 1.976 50 1.969 0.18 .007 3.175 .125 1 0.966 .0380 62 5 a MWS00380LB 5.0 .197 10.20 .402 14.30 .563 50.20 1.976 50 1.969 0.20 .008 3.175 .125 3 12 a MWS00380XB 11.8 .465 20.20 .795 24.30 .957 50.20 1.976 50 1.969 0.20 .008 3.175 .125 3 1 a MWS0097SB 1.2 .047 5.08 .200 8.88 .350 50.18 1.976 50 1.969 0.18 .007 3.0 .118 1 0.970 .0382 5 a MWS0097LB 5.1 .201 10.20 .402 14.20 .559 50.20 1.976 50 1.969 0.20 .008 3.0 .118 3 12 s MWS0097XB 11.8 .465 20.20 .795 24.20 .953 50.20 1.976 50 1.969 0.20 .008 3.0 .118 3 M 1 s MWS0098SB 1.2 .047 5.08 .200 8.88 .350 50.18 1.976 50 1.969 0.18 .007 3.0 .118 1 0.980 .0386 5 s MWS0098LB 5.1 .201 10.20 .402 14.20 .559 50.20 1.976 50 1.969 0.20 .008 3.0 .118 3 12 s MWS0098XB 12.0 .472 20.20 .795 24.20 .953 50.20 1.976 50 1.969 0.20 .008 3.0 .118 3 1 a MWS0099SB 1.2 .047 5.08 .200 8.88 .350 50.18 1.976 50 1.969 0.18 .007 3.0 .118 1 0.990 .0390 61 5 s MWS0099LB 5.2 .205 10.21 .402 14.21 .559 50.21 1.977 50 1.969 0.21 .008 3.0 .118 3 12 s MWS0099XB 12.1 .476 20.21 .796 24.21 .953 50.21 1.977 50 1.969 0.21 .008 3.0 .118 3 1 a MWS00390SB 1.2 .047 5.08 .200 9.18 .361 50.18 1.976 50 1.969 0.18 .007 3.175 .125 1 0.991 .0390 61 5 a MWS00390LB 5.2 .205 10.21 .402 14.31 .563 50.21 1.977 50 1.969 0.21 .008 3.175 .125 3 12 a MWS00390XB 12.1 .476 20.21 .796 24.31 .957 50.21 1.977 50 1.969 0.21 .008 3.175 .125 3 Note 1) Please contact Mitsubishi Materials for any geometry that is not in the catalog (e.g. different dia. and length). a : USA Stock s : Stocked in Japan [ : Micro-MWS inch & metric sizes 1.0mm - 2.95mm being phased out through 2022. M086 See new generation Micro-MVS drills for applicable replacement.
