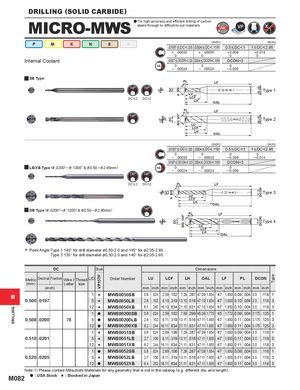

DRILLING VP15TF DC DCDCSIG DC SIGSIG 145° SIG 140° DCONDCONDCONDCON Type DRILLING (SOLID CARBIDE) MICRO-MWS a For high accuracy and efficient drilling of carbonsteels through to difficult-to-cut materials. P M K N S H (inch) (mm).0197 < DC<.03 .0304< DC<.11610.5 < DC<11 < DC<2.95 + .00035 + .00055 + 0.009 + 0.014 0 0 0 0 Internal Coolant .01972 * LULCFLH OAL PL LF Type 2 LU LCF LH OAL (inch) (mm) .0197 < DC<.03 .0304< DC<.1161 0.5 < DC<1 1 < DC<2.95 0 0 0 0 ─ .00035 ─ .00035 ─ 0.009 ─ 0.014 .01972 PL LF Type 3 * LULCFLH OAL y DB Type (&.0200" ─ &.1200" & &0.50 ─ &2.95mm) PL LF Type 4 LU LCF LH OAL * Point Angle:Type 1 140° for drill diameter &0.50-2.0 and 145° for &2.05-2.95.Type 3 135° for drill diameter &0.50-2.0 and 140° for &2.05-2.95. DC Stock Dimensions Metric Decimal Fraction Wire / Thread L/D Order Number LU LCF LH OAL LF PL DCON (mm) Letter size (inch) mm inch mm inch mm inch mm inch mm inch mm inch mm inch M 1 s MWS0050SB 0.6 .024 2.59 .102 7.29 .287 47.09 1.854 47 1.850 0.09 .004 3.0 .118 1 0.500 .0197 5 s MWS0050LB 2.6 .102 8.10 .319 13.10 .516 47.10 1.854 47 1.850 0.10 .004 3.0 .118 3 12 s MWS0050XB 6.1 .240 16.10 .634 21.10 .831 47.10 1.854 47 1.850 0.10 .004 3.0 .118 3 1 a MWS00200SB 0.6 .024 2.59 .102 7.59 .299 45.09 1.775 45 1.772 0.09 .004 3.175 .125 1 0.508 .0200 76 5 a MWS00200LB 2.6 .102 8.11 .319 13.11 .516 47.11 1.855 47 1.850 0.11 .004 3.175 .125 3 12 a MWS00200XB 6.2 .244 16.11 .634 21.11 .831 47.11 1.855 47 1.850 0.11 .004 3.175 .125 3 1 s MWS0051SB 0.6 .024 2.69 .106 7.29 .287 47.09 1.854 47 1.850 0.09 .004 3.0 .118 1 0.510 .0201 5 s MWS0051LB 2.7 .106 8.11 .319 13.11 .516 47.11 1.855 47 1.850 0.11 .004 3.0 .118 3 12 s MWS0051XB 6.2 .244 16.11 .634 21.11 .831 47.11 1.855 47 1.850 0.11 .004 3.0 .118 3 1 a MWS0052SB 0.6 .024 2.69 .106 7.29 .287 47.09 1.854 47 1.850 0.09 .004 3.0 .118 1 0.520 .0205 5 s MWS0052LB 2.7 .106 8.11 .319 13.11 .516 47.11 1.855 47 1.850 0.11 .004 3.0 .118 3 12 a MWS0052XB 6.4 .252 16.11 .634 21.11 .831 47.11 1.855 47 1.850 0.11 .004 3.0 .118 3 Note 1) Please contact Mitsubishi Materials for any geometry that is not in the catalog (e.g. different dia. and length). M082 a : USA Stock s : Stocked in Japan
