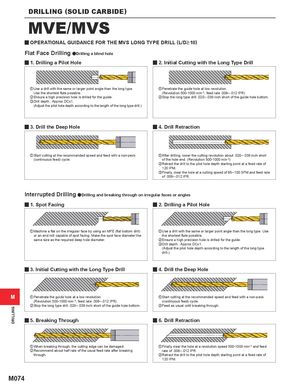

DRILLING (SOLID CARBIDE) MVE/MVS y OPERATIONAL GUIDANCE FOR THE MVS LONG TYPE DRILL (L/D>10) Flat Face Drilling aDrilling a blind hole y 1. Drilling a Pilot Hole y 2. Initial Cutting with the Long Type Drill zUse a drill with the same or larger point angle than the long type. zPenetrate the guide hole at low revolution. Use the shortest flute possible. (Revolution 500-1000 min-1, feed rate .008─.012 IPR) xEnsure a high precision hole is drilled for the guide. xStop the long type drill .020─.039 inch short of the guide hole bottom. cDrill depth : Approx DCx1. (Adjust the pilot hole depth according to the length of the long type drill.) y 3. Drill the Deep Hole y 4. Drill Retraction zStart cutting at the recommended speed and feed with a non-peck zAfter drilling, lower the cutting revolution about .020─.039 inch short (continuous feed) cycle. of the hole end. (Revolution 500-1000 min-1) xRetract the drill to the pilot hole depth starting point at a feed rate of 120 IPM. cFinally, clear the hole at a cutting speed of 65─100 SFM and feed rate of .008─.012 IPR. Interrupted Drilling aDrilling and breaking through on irregular faces or angles y 1. Spot Facing y 2. Drilling a Pilot Hole zMachine a flat on the irregular face by using an MFE (flat bottom drill) zUse a drill with the same or larger point angle than the long type. Use or an end mill capable of spot facing. Make the spot face diameter the the shortest flute possible. same size as the required deep hole diameter. xEnsure a high precision hole is drilled for the guide. cDrill depth : Approx DCx1. (Adjust the pilot hole depth according to the length of the long type drill.) y 3. Initial Cutting with the Long Type Drill y 4. Drill the Deep Hole M zPenetrate the guide hole at a low revolution. zStart cutting at the recommended speed and feed with a non-peck (Revolution 500-1000 min-1, feed rate .008─.012 IPR) (continuous feed) cycle. xStop the long type drill .020─.039 inch short of the guide hole bottom. xFeed as usual until breaking through. y 5. Breaking Through y 6. Drill Retraction zWhen breaking through, the cutting edge can be damaged. zFinally clear the hole at a revolution speed 500-1000 min-1 and feed xRecommend about half rate of the usual feed rate after breaking rate of .008─.012 IPR. through. xRetract the drill to the pilot hole depth starting point at a feed rate of 120 IPM. M074 DRILLING
