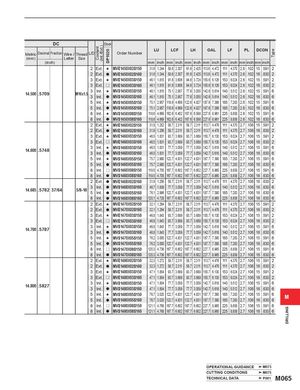

Общий каталог Mitsubishi 2020 - 2021 - страница 1538
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
DC Stock
(Int./Ext.)
Coolant
LU LCF LH OAL LF PL DCON
Type
DP1020
Metric Decimal Fraction Wire / Thread L/D Order Number
(mm) Letter Size
(inch) mm inch mm inch mm inch mm inch mm inch mm inch mm inch
2 Ext. s MVE1450X02S150 31.6 1.244 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 15 .591 2
2 Ext. a MVE1450X02S160 31.6 1.244 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 16 .630 2
3 Ext. s MVE1450X03S150 46.1 1.815 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 15 .591 2
3 Ext. r MVE1450X03S160 46.1 1.815 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 16 .630 2
3 Int. s MVS1450X03S150 46.1 1.815 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 15 .591 6
14.500 .5709 M16x1.5
3 Int. a MVS1450X03S160 46.1 1.815 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 16 .630 6
5 Int. s MVS1450X05S150 75.1 2.957 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 15 .591 6
5 Int. a MVS1450X05S160 75.1 2.957 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 16 .630 6
8 Int. s MVS1450X08S150 118.6 4.669 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 15 .591 6
8 Int. a MVS1450X08S160 118.6 4.669 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 16 .630 6
2 Ext. s MVE1460X02S150 31.8 1.252 58.7 2.311 58.7 2.311 113.7 4.476 111 4.370 2.7 .106 15 .591 2
2 Ext. a MVE1460X02S160 31.9 1.256 58.7 2.311 58.7 2.311 113.7 4.476 111 4.370 2.7 .106 16 .630 2
3 Ext. s MVE1460X03S150 46.5 1.831 93.7 3.689 93.7 3.689 155.7 6.130 153 6.024 2.7 .106 15 .591 2
3 Ext. r MVE1460X03S160 46.5 1.831 93.7 3.689 93.7 3.689 155.7 6.130 153 6.024 2.7 .106 16 .630 2
3 Int. s MVS1460X03S150 46.5 1.831 77.7 3.059 77.7 3.059 142.7 5.618 140 5.512 2.7 .106 15 .591 6
14.600 .5748
3 Int. a MVS1460X03S160 46.5 1.831 77.7 3.059 77.7 3.059 142.7 5.618 140 5.512 2.7 .106 16 .630 6
5 Int. s MVS1460X05S150 75.7 2.980 122.7 4.831 122.7 4.831 187.7 7.390 185 7.283 2.7 .106 15 .591 6
5 Int. a MVS1460X05S160 75.7 2.980 122.7 4.831 122.7 4.831 187.7 7.390 185 7.283 2.7 .106 16 .630 6
8 Int. r MVS1460X08S150 119.5 4.705 167.7 6.602 167.7 6.602 227.7 8.965 225 8.858 2.7 .106 15 .591 6
8 Int. a MVS1460X08S160 119.5 4.705 167.7 6.602 167.7 6.602 227.7 8.965 225 8.858 2.7 .106 16 .630 6
2 Ext. a MVE1468X02S160 31.9 1.256 58.7 2.311 58.7 2.311 113.7 4.476 111 4.370 2.7 .106 16 .630 2
3 Int. a MVS1468X03S160 46.7 1.839 77.7 3.059 77.7 3.059 142.7 5.618 140 5.512 2.7 .106 16 .630 6
14.685 .5782 37/64 5/8-18
5 Int. a MVS1468X05S160 76.1 2.996 122.7 4.831 122.7 4.831 187.7 7.390 185 7.283 2.7 .106 16 .630 6
8 Int. a MVS1468X08S160 120.1 4.728 167.7 6.602 167.7 6.602 227.7 8.965 225 8.858 2.7 .106 16 .630 6
2 Ext. s MVE1470X02S150 32.1 1.264 58.7 2.311 58.7 2.311 113.7 4.476 111 4.370 2.7 .106 15 .591 2
2 Ext. a MVE1470X02S160 32.1 1.264 58.7 2.311 58.7 2.311 113.7 4.476 111 4.370 2.7 .106 16 .630 2
3 Ext. s MVE1470X03S150 46.8 1.843 93.7 3.689 93.7 3.689 155.7 6.130 153 6.024 2.7 .106 15 .591 2
3 Ext. r MVE1470X03S160 46.8 1.843 93.7 3.689 93.7 3.689 155.7 6.130 153 6.024 2.7 .106 16 .630 2
3 Int. s MVS1470X03S150 46.8 1.843 77.7 3.059 77.7 3.059 142.7 5.618 140 5.512 2.7 .106 15 .591 6
14.700 .5787
3 Int. a MVS1470X03S160 46.8 1.843 77.7 3.059 77.7 3.059 142.7 5.618 140 5.512 2.7 .106 16 .630 6
5 Int. s MVS1470X05S150 76.2 3.000 122.7 4.831 122.7 4.831 187.7 7.390 185 7.283 2.7 .106 15 .591 6
5 Int. a MVS1470X05S160 76.2 3.000 122.7 4.831 122.7 4.831 187.7 7.390 185 7.283 2.7 .106 16 .630 6
8 Int. r MVS1470X08S150 120.3 4.736 167.7 6.602 167.7 6.602 227.7 8.965 225 8.858 2.7 .106 15 .591 6
8 Int. a MVS1470X08S160 120.3 4.736 167.7 6.602 167.7 6.602 227.7 8.965 225 8.858 2.7 .106 16 .630 6
2 Ext. s MVE1480X02S150 32.3 1.272 58.7 2.311 58.7 2.311 113.7 4.476 111 4.370 2.7 .106 15 .591 2
2 Ext. a MVE1480X02S160 32.3 1.272 58.7 2.311 58.7 2.311 113.7 4.476 111 4.370 2.7 .106 16 .630 2
3 Ext. s MVE1480X03S150 47.1 1.854 93.7 3.689 93.7 3.689 155.7 6.130 153 6.024 2.7 .106 15 .591 2
3 Ext. r MVE1480X03S160 47.1 1.854 93.7 3.689 93.7 3.689 155.7 6.130 153 6.024 2.7 .106 16 .630 2
3 Int. s MVS1480X03S150 47.1 1.854 77.7 3.059 77.7 3.059 142.7 5.618 140 5.512 2.7 .106 15 .591 6
14.800 .5827
3 Int. a MVS1480X03S160 47.1 1.854 77.7 3.059 77.7 3.059 142.7 5.618 140 5.512 2.7 .106 16 .630 6
5 Int. s MVS1480X05S150 76.7 3.020 122.7 4.831 122.7 4.831 187.7 7.390 185 7.283 2.7 .106 15 .591 6
M
5 Int. a MVS1480X05S160 76.7 3.020 122.7 4.831 122.7 4.831 187.7 7.390 185 7.283 2.7 .106 16 .630 6
8 Int. r MVS1480X08S150 121.1 4.768 167.7 6.602 167.7 6.602 227.7 8.965 225 8.858 2.7 .106 15 .591 6
DRILLING
8 Int. a MVS1480X08S160 121.1 4.768 167.7 6.602 167.7 6.602 227.7 8.965 225 8.858 2.7 .106 16 .630 6
OPERATIONAL GUIDANCE M073
CUTTING CONDITIONS M075
TECHNICAL DATA P001 M065
