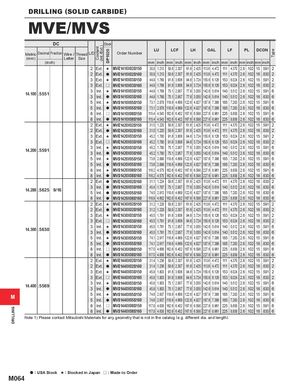

DRILLING (SOLID CARBIDE)
MVE/MVS
DC Stock
(Int./Ext.)
Coolant
LU LCF LH OAL LF PL DCON
Type
DP1020
Metric Decimal Fraction Wire / Thread L/D Order Number
(mm) Letter Size
(inch) mm inch mm inch mm inch mm inch mm inch mm inch mm inch
2 Ext. s MVE1410X02S150 30.8 1.213 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 15 .591 2
2 Ext. a MVE1410X02S160 30.8 1.213 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 16 .630 2
3 Ext. s MVE1410X03S150 44.9 1.768 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 15 .591 2
3 Ext. r MVE1410X03S160 44.9 1.768 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 16 .630 2
3 Int. s MVS1410X03S150 44.9 1.768 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 15 .591 6
14.100 .5551
3 Int. a MVS1410X03S160 44.9 1.768 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 16 .630 6
5 Int. s MVS1410X05S150 73.1 2.878 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 15 .591 6
5 Int. a MVS1410X05S160 73.1 2.878 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 16 .630 6
8 Int. r MVS1410X08S150 115.4 4.543 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 15 .591 6
8 Int. a MVS1410X08S160 115.4 4.543 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 16 .630 6
2 Ext. s MVE1420X02S150 31.0 1.220 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 15 .591 2
2 Ext. a MVE1420X02S160 31.0 1.220 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 16 .630 2
3 Ext. s MVE1420X03S150 45.2 1.780 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 15 .591 2
3 Ext. r MVE1420X03S160 45.2 1.780 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 16 .630 2
3 Int. s MVS1420X03S150 45.2 1.780 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 15 .591 6
14.200 .5591
3 Int. a MVS1420X03S160 45.2 1.780 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 16 .630 6
5 Int. s MVS1420X05S150 73.6 2.898 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 15 .591 6
5 Int. a MVS1420X05S160 73.6 2.898 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 16 .630 6
8 Int. s MVS1420X08S150 116.2 4.575 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 15 .591 6
8 Int. a MVS1420X08S160 116.2 4.575 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 16 .630 6
2 Ext. a MVE1429X02S160 31.1 1.224 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 16 .630 2
3 Int. a MVS1429X03S160 45.4 1.787 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 16 .630 6
14.288 .5625 9/16
5 Int. a MVS1429X05S160 74.0 2.913 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 16 .630 6
8 Int. a MVS1429X08S160 116.9 4.602 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 16 .630 6
2 Ext. s MVE1430X02S150 31.2 1.228 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 15 .591 2
2 Ext. a MVE1430X02S160 31.2 1.228 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 16 .630 2
3 Ext. s MVE1430X03S150 45.5 1.791 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 15 .591 2
3 Ext. r MVE1430X03S160 45.5 1.791 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 16 .630 2
3 Int. s MVS1430X03S150 45.5 1.791 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 15 .591 6
14.300 .5630
3 Int. a MVS1430X03S160 45.5 1.791 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 16 .630 6
5 Int. s MVS1430X05S150 74.1 2.917 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 15 .591 6
5 Int. a MVS1430X05S160 74.1 2.917 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 16 .630 6
8 Int. r MVS1430X08S150 117.0 4.606 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 15 .591 6
8 Int. a MVS1430X08S160 117.0 4.606 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 16 .630 6
2 Ext. s MVE1440X02S150 31.4 1.236 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 15 .591 2
2 Ext. a MVE1440X02S160 31.4 1.236 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 16 .630 2
3 Ext. s MVE1440X03S150 45.8 1.803 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 15 .591 2
3 Ext. r MVE1440X03S160 45.8 1.803 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 16 .630 2
3 Int. s MVS1440X03S150 45.8 1.803 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 15 .591 6
14.400 .5569
3 Int. a MVS1440X03S160 45.8 1.803 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 16 .630 6
5 Int. s MVS1440X05S150 74.6 2.937 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 15 .591 6
M
5 Int. a MVS1440X05S160 74.6 2.937 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 16 .630 6
8 Int. r MVS1440X08S150 117.8 4.638 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 15 .591 6
DRILLING
8 Int. a MVS1440X08S160 117.8 4.638 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 16 .630 6
Note 1) Please contact Mitsubishi Materials for any geometry that is not in the catalog (e.g. different dia. and length).
a : USA Stock s : Stocked in Japan r : Made to Order
M064
MVE/MVS
DC Stock
(Int./Ext.)
Coolant
LU LCF LH OAL LF PL DCON
Type
DP1020
Metric Decimal Fraction Wire / Thread L/D Order Number
(mm) Letter Size
(inch) mm inch mm inch mm inch mm inch mm inch mm inch mm inch
2 Ext. s MVE1410X02S150 30.8 1.213 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 15 .591 2
2 Ext. a MVE1410X02S160 30.8 1.213 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 16 .630 2
3 Ext. s MVE1410X03S150 44.9 1.768 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 15 .591 2
3 Ext. r MVE1410X03S160 44.9 1.768 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 16 .630 2
3 Int. s MVS1410X03S150 44.9 1.768 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 15 .591 6
14.100 .5551
3 Int. a MVS1410X03S160 44.9 1.768 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 16 .630 6
5 Int. s MVS1410X05S150 73.1 2.878 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 15 .591 6
5 Int. a MVS1410X05S160 73.1 2.878 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 16 .630 6
8 Int. r MVS1410X08S150 115.4 4.543 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 15 .591 6
8 Int. a MVS1410X08S160 115.4 4.543 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 16 .630 6
2 Ext. s MVE1420X02S150 31.0 1.220 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 15 .591 2
2 Ext. a MVE1420X02S160 31.0 1.220 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 16 .630 2
3 Ext. s MVE1420X03S150 45.2 1.780 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 15 .591 2
3 Ext. r MVE1420X03S160 45.2 1.780 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 16 .630 2
3 Int. s MVS1420X03S150 45.2 1.780 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 15 .591 6
14.200 .5591
3 Int. a MVS1420X03S160 45.2 1.780 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 16 .630 6
5 Int. s MVS1420X05S150 73.6 2.898 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 15 .591 6
5 Int. a MVS1420X05S160 73.6 2.898 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 16 .630 6
8 Int. s MVS1420X08S150 116.2 4.575 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 15 .591 6
8 Int. a MVS1420X08S160 116.2 4.575 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 16 .630 6
2 Ext. a MVE1429X02S160 31.1 1.224 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 16 .630 2
3 Int. a MVS1429X03S160 45.4 1.787 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 16 .630 6
14.288 .5625 9/16
5 Int. a MVS1429X05S160 74.0 2.913 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 16 .630 6
8 Int. a MVS1429X08S160 116.9 4.602 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 16 .630 6
2 Ext. s MVE1430X02S150 31.2 1.228 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 15 .591 2
2 Ext. a MVE1430X02S160 31.2 1.228 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 16 .630 2
3 Ext. s MVE1430X03S150 45.5 1.791 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 15 .591 2
3 Ext. r MVE1430X03S160 45.5 1.791 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 16 .630 2
3 Int. s MVS1430X03S150 45.5 1.791 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 15 .591 6
14.300 .5630
3 Int. a MVS1430X03S160 45.5 1.791 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 16 .630 6
5 Int. s MVS1430X05S150 74.1 2.917 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 15 .591 6
5 Int. a MVS1430X05S160 74.1 2.917 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 16 .630 6
8 Int. r MVS1430X08S150 117.0 4.606 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 15 .591 6
8 Int. a MVS1430X08S160 117.0 4.606 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 16 .630 6
2 Ext. s MVE1440X02S150 31.4 1.236 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 15 .591 2
2 Ext. a MVE1440X02S160 31.4 1.236 58.6 2.307 61.6 2.425 113.6 4.472 111 4.370 2.6 .102 16 .630 2
3 Ext. s MVE1440X03S150 45.8 1.803 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 15 .591 2
3 Ext. r MVE1440X03S160 45.8 1.803 91.6 3.606 94.6 3.724 155.6 6.126 153 6.024 2.6 .102 16 .630 2
3 Int. s MVS1440X03S150 45.8 1.803 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 15 .591 6
14.400 .5569
3 Int. a MVS1440X03S160 45.8 1.803 75.1 2.957 77.6 3.055 142.6 5.614 140 5.512 2.6 .102 16 .630 6
5 Int. s MVS1440X05S150 74.6 2.937 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 15 .591 6
M
5 Int. a MVS1440X05S160 74.6 2.937 118.6 4.669 122.6 4.827 187.6 7.386 185 7.283 2.6 .102 16 .630 6
8 Int. r MVS1440X08S150 117.8 4.638 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 15 .591 6
DRILLING
8 Int. a MVS1440X08S160 117.8 4.638 162.6 6.402 167.6 6.598 227.6 8.961 225 8.858 2.6 .102 16 .630 6
Note 1) Please contact Mitsubishi Materials for any geometry that is not in the catalog (e.g. different dia. and length).
a : USA Stock s : Stocked in Japan r : Made to Order
