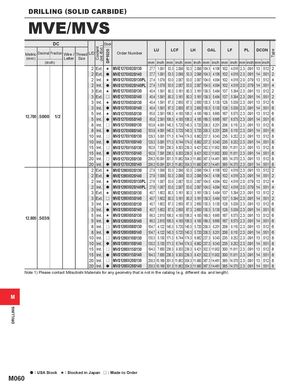

DRILLING (SOLID CARBIDE)
MVE/MVS
DC Stock
(Int./Ext.)
Coolant
LU LCF LH OAL LF PL DCON
Type
DP1020
Metric Decimal Fraction Wire / Thread L/D Order Number
(mm) Letter Size
(inch) mm inch mm inch mm inch mm inch mm inch mm inch mm inch
2 Ext. s MVE1270X02S130 27.7 1.091 53.3 2.098 53.3 2.098 104.3 4.106 102 4.016 2.3 .091 13 .512 2
2 Ext. a MVE1270X02S140 27.7 1.091 53.3 2.098 53.3 2.098 104.3 4.106 102 4.016 2.3 .091 14 .551 2
2 Int. s MVS1270X02S130PL 27.4 1.079 53.0 2.087 53.0 2.087 104.0 4.094 102 4.016 2.0 .079 13 .512 4
2 Int. a MVS1270X02S140PL 27.4 1.079 53.0 2.087 53.0 2.087 104.0 4.094 102 4.016 2.0 .079 14 .551 4
3 Ext. s MVE1270X03S130 40.4 1.591 80.3 3.161 80.3 3.161 139.3 5.484 137 5.394 2.3 .091 13 .512 2
3 Ext. r MVE1270X03S140 40.4 1.591 80.3 3.161 80.3 3.161 139.3 5.484 137 5.394 2.3 .091 14 .551 2
3 Int. s MVS1270X03S130 40.4 1.591 67.3 2.650 67.3 2.650 130.3 5.130 128 5.039 2.3 .091 13 .512 6
3 Int. a MVS1270X03S140 40.4 1.591 67.3 2.650 67.3 2.650 130.3 5.130 128 5.039 2.3 .091 14 .551 6
5 Int. s MVS1270X05S130 65.8 2.591 106.3 4.185 106.3 4.185 169.3 6.665 167 6.575 2.3 .091 13 .512 6
12.700 .5000 1/2
5 Int. a MVS1270X05S140 65.8 2.591 106.3 4.185 106.3 4.185 169.3 6.665 167 6.575 2.3 .091 14 .551 6
8 Int. r MVS1270X08S130 103.9 4.091 145.3 5.720 145.3 5.720 208.3 8.201 206 8.110 2.3 .091 13 .512 6
8 Int. a MVS1270X08S140 103.9 4.091 145.3 5.720 145.3 5.720 208.3 8.201 206 8.110 2.3 .091 14 .551 6
10 Int. r MVS1270X10S130 129.3 5.091 171.3 6.744 174.3 6.862 237.3 9.343 235 9.252 2.3 .091 13 .512 8
10 Int. a MVS1270X10S140 129.3 5.091 171.3 6.744 174.3 6.862 237.3 9.343 235 9.252 2.3 .091 14 .551 8
15 Int. r MVS1270X15S130 192.8 7.591 236.3 9.303 239.3 9.421 302.3 11.902 300 11.811 2.3 .091 13 .512 8
15 Int. a MVS1270X15S140 192.8 7.591 236.3 9.303 239.3 9.421 302.3 11.902 300 11.811 2.3 .091 14 .551 8
20 Int. r MVS1270X20S130 256.3 10.091 301.3 11.862 304.3 11.980 367.3 14.461 365 14.370 2.3 .091 13 .512 8
20 Int. a MVS1270X20S140 256.3 10.091 301.3 11.862 304.3 11.980 367.3 14.461 365 14.370 2.3 .091 14 .551 8
2 Ext. s MVE1280X02S130 27.9 1.098 53.3 2.098 53.3 2.098 104.3 4.106 102 4.016 2.3 .091 13 .512 2
2 Ext. a MVE1280X02S140 27.9 1.098 53.3 2.098 53.3 2.098 104.3 4.106 102 4.016 2.3 .091 14 .551 2
2 Int. s MVS1280X02S130PL 27.6 1.087 53.0 2.087 53.0 2.087 104.0 4.094 102 4.016 2.0 .079 13 .512 4
2 Int. a MVS1280X02S140PL 27.6 1.087 53.0 2.087 53.0 2.087 104.0 4.094 102 4.016 2.0 .079 14 .551 4
3 Ext. s MVE1280X03S130 40.7 1.602 80.3 3.161 80.3 3.161 139.3 5.484 137 5.394 2.3 .091 13 .512 2
3 Ext. r MVE1280X03S140 40.7 1.602 80.3 3.161 80.3 3.161 139.3 5.484 137 5.394 2.3 .091 14 .551 2
3 Int. s MVS1280X03S130 40.7 1.602 67.3 2.650 67.3 2.650 130.3 5.130 128 5.039 2.3 .091 13 .512 6
3 Int. a MVS1280X03S140 40.7 1.602 67.3 2.650 67.3 2.650 130.3 5.130 128 5.039 2.3 .091 14 .551 6
5 Int. s MVS1280X05S130 66.3 2.610 106.3 4.185 106.3 4.185 169.3 6.665 167 6.575 2.3 .091 13 .512 6
12.800 .5039
5 Int. a MVS1280X05S140 66.3 2.610 106.3 4.185 106.3 4.185 169.3 6.665 167 6.575 2.3 .091 14 .551 6
8 Int. r MVS1280X08S130 104.7 4.122 145.3 5.720 145.3 5.720 208.3 8.201 206 8.110 2.3 .091 13 .512 6
8 Int. a MVS1280X08S140 104.7 4.122 145.3 5.720 145.3 5.720 208.3 8.201 206 8.110 2.3 .091 14 .551 6
10 Int. r MVS1280X10S130 130.3 5.130 171.3 6.744 174.3 6.862 237.3 9.343 235 9.252 2.3 .091 13 .512 8
10 Int. a MVS1280X10S140 130.3 5.130 171.3 6.744 174.3 6.862 237.3 9.343 235 9.252 2.3 .091 14 .551 8
15 Int. r MVS1280X15S130 194.3 7.650 236.3 9.303 239.3 9.421 302.3 11.902 300 11.811 2.3 .091 13 .512 8
15 Int. a MVS1280X15S140 194.3 7.650 236.3 9.303 239.3 9.421 302.3 11.902 300 11.811 2.3 .091 14 .551 8
20 Int. r MVS1280X20S130 258.3 10.169 301.3 11.862 304.3 11.980 367.3 14.461 365 14.370 2.3 .091 13 .512 8
20 Int. a MVS1280X20S140 258.3 10.169 301.3 11.862 304.3 11.980 367.3 14.461 365 14.370 2.3 .091 14 .551 8
Note 1) Please contact Mitsubishi Materials for any geometry that is not in the catalog (e.g. different dia. and length).
M
DRILLING
a : USA Stock s : Stocked in Japan r : Made to Order
M060
